Product Features
Exclusive Side Inlet Structural Advantage: Adopts lateral air intake port instead of traditional top inlet design, avoiding pipeline collision and installation dead zone in narrow robot gripper working areas, realizing flexible installation in compact and limited space environments.

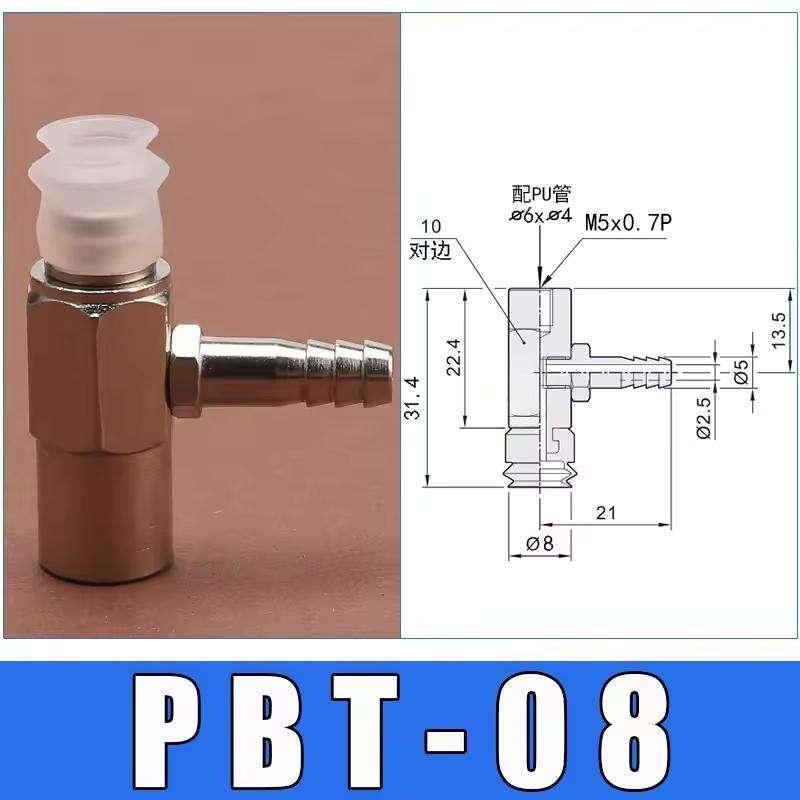

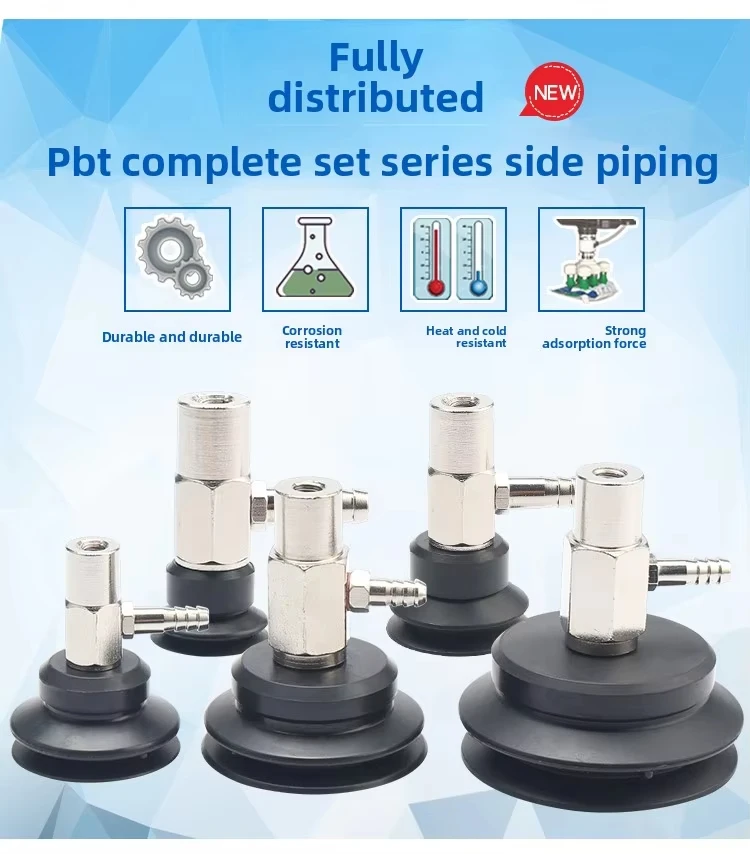

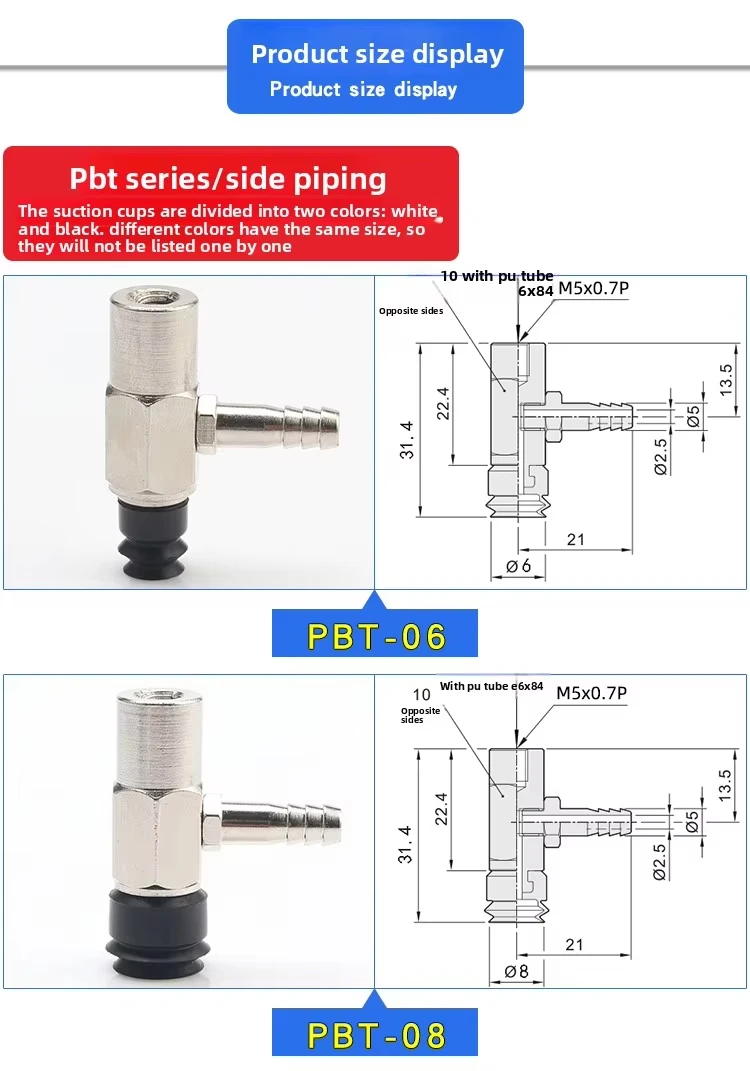

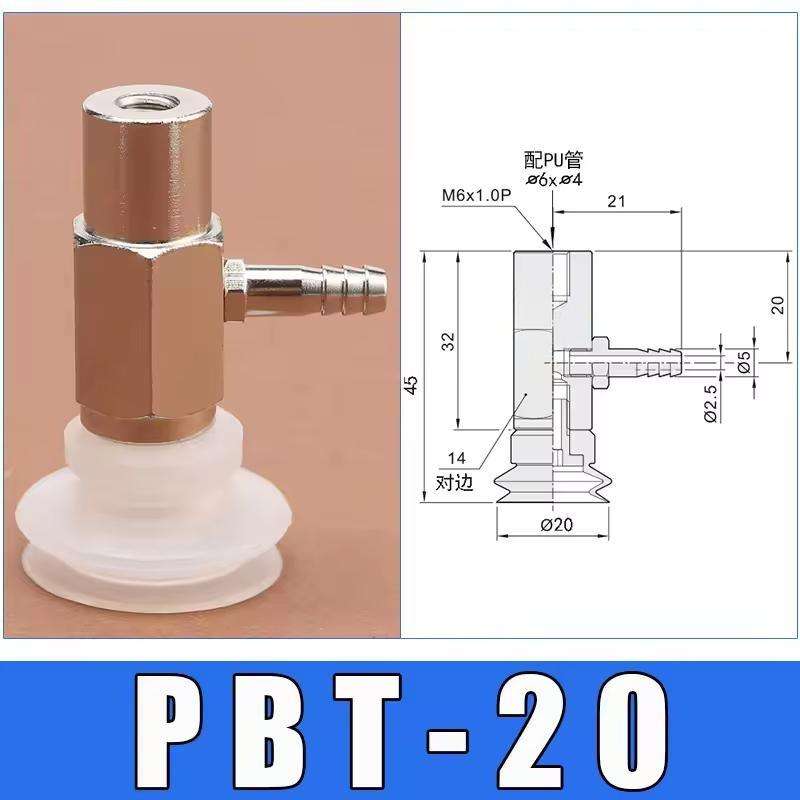

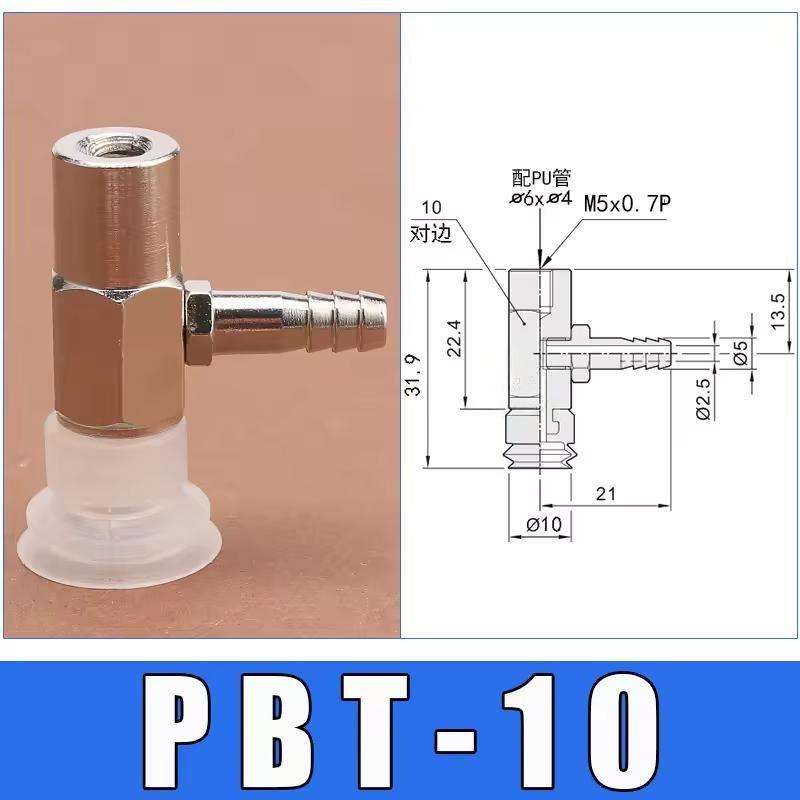

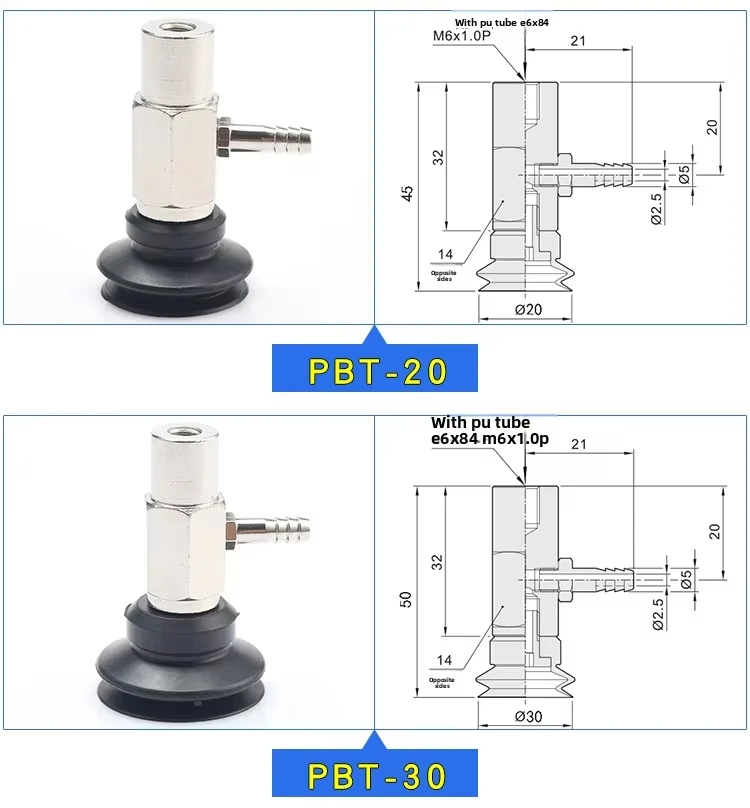

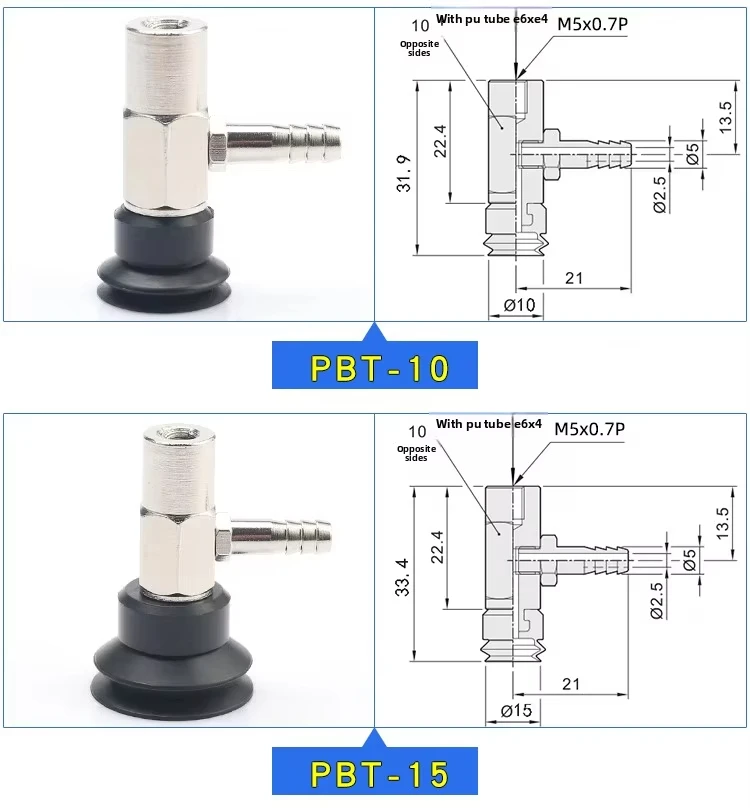

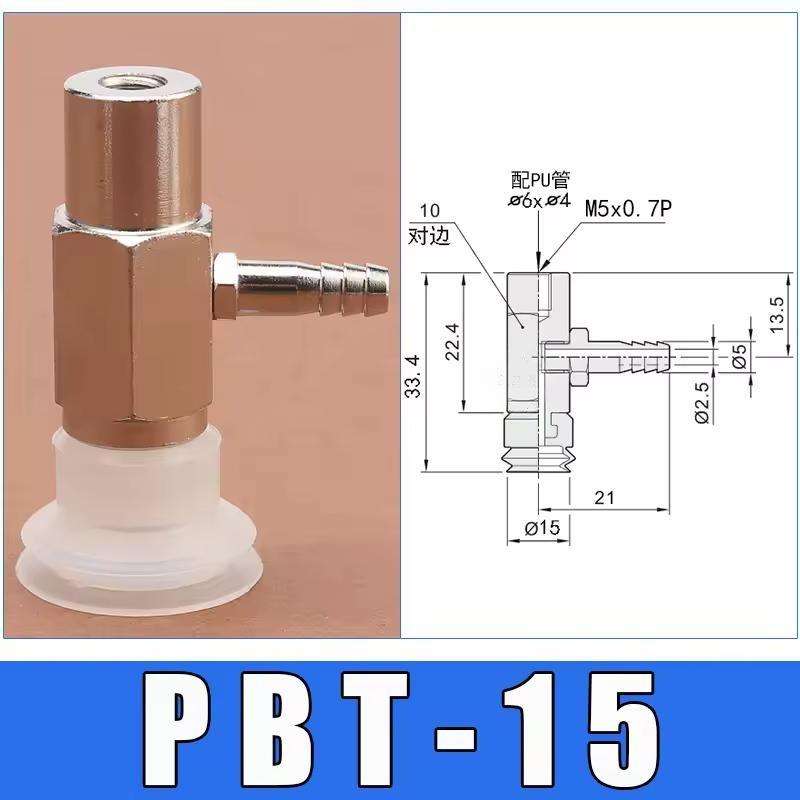

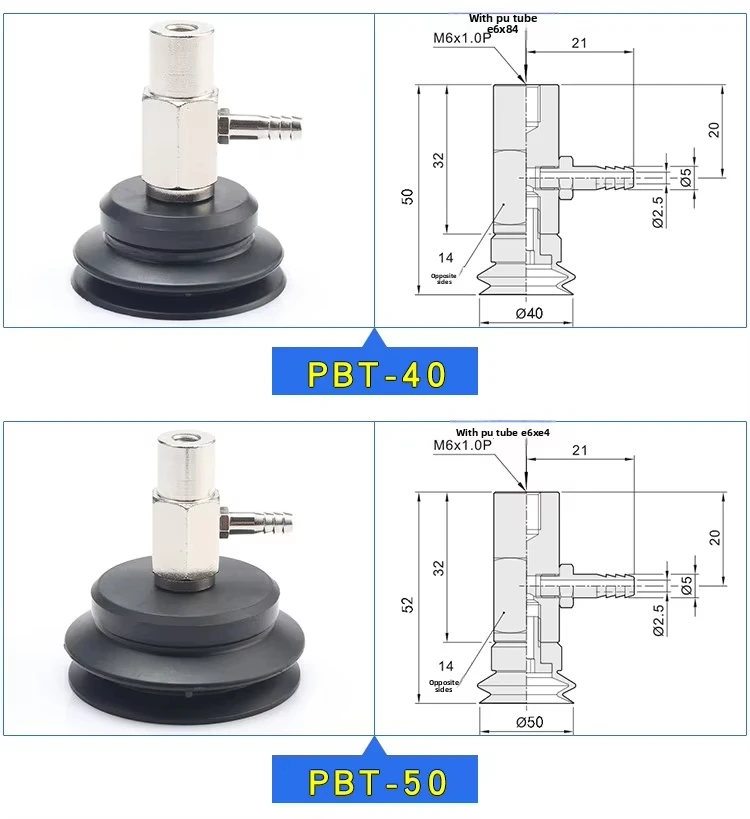

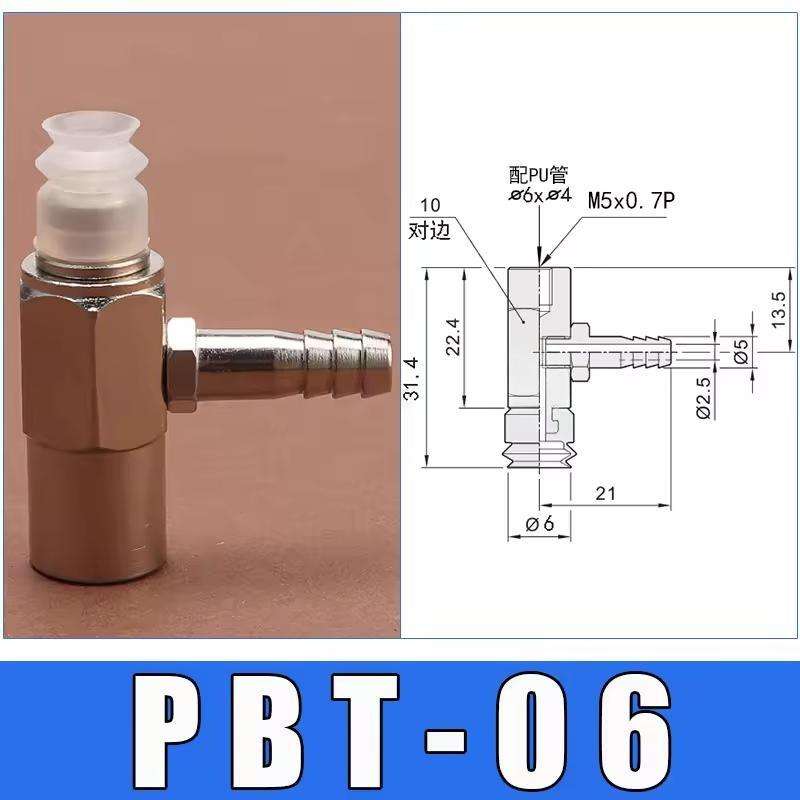

9 Full Standard Sizes for One-stop Selection: Complete size range including PBT/PAT-06, 08, 10, 15, 20, 30, 35, 40, 50 covers micro precision parts, small medium workpieces and large flat panels, meeting all size matching demands for robot gripping systems.

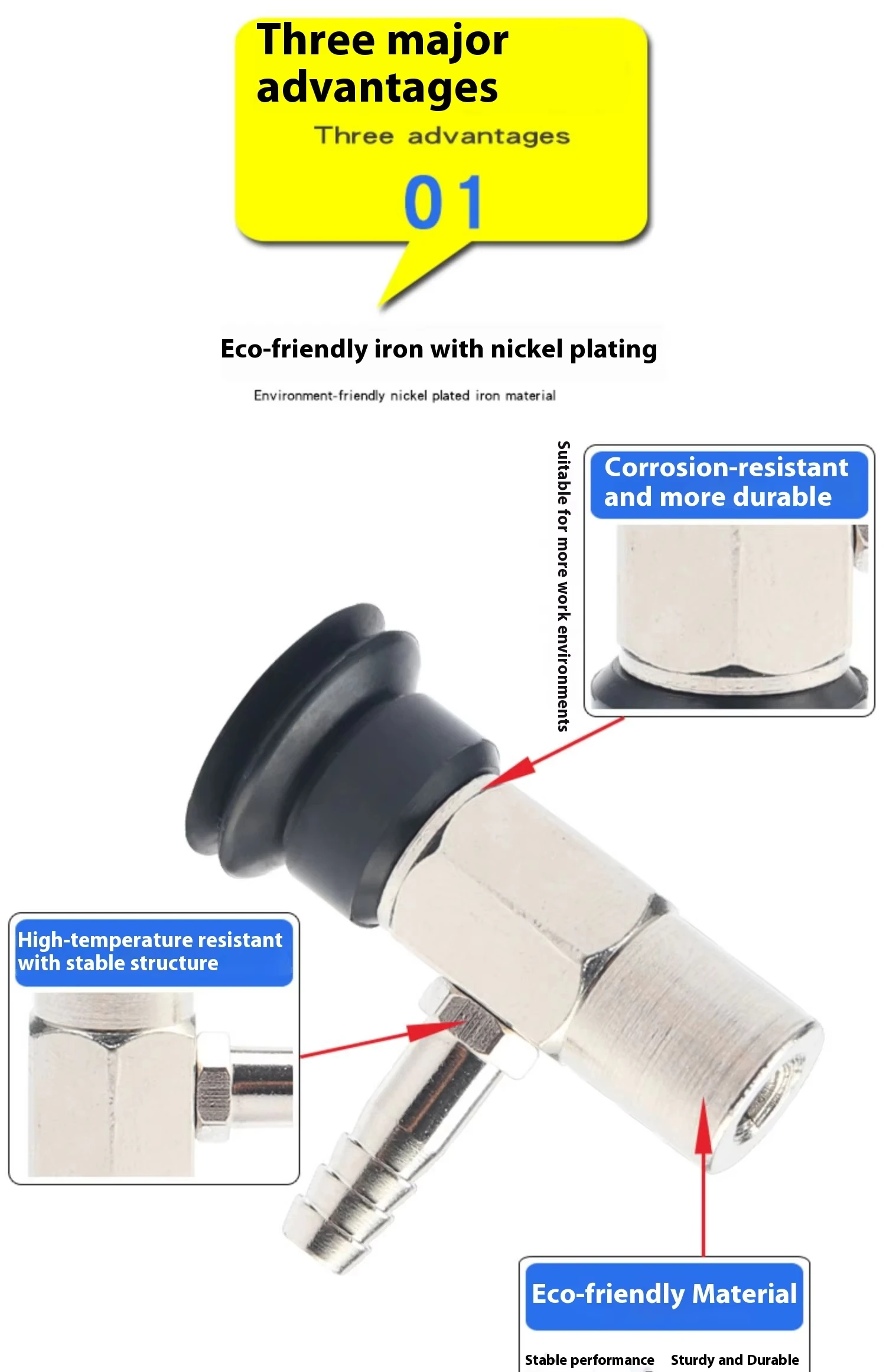

Superior Wear-resistant & Durable Rubber Material: Custom industrial rubber formula enhances surface friction resistance and compression durability, resisting daily friction, repeated extrusion and workshop environmental aging, extending service life effectively compared with ordinary ordinary suction cups.

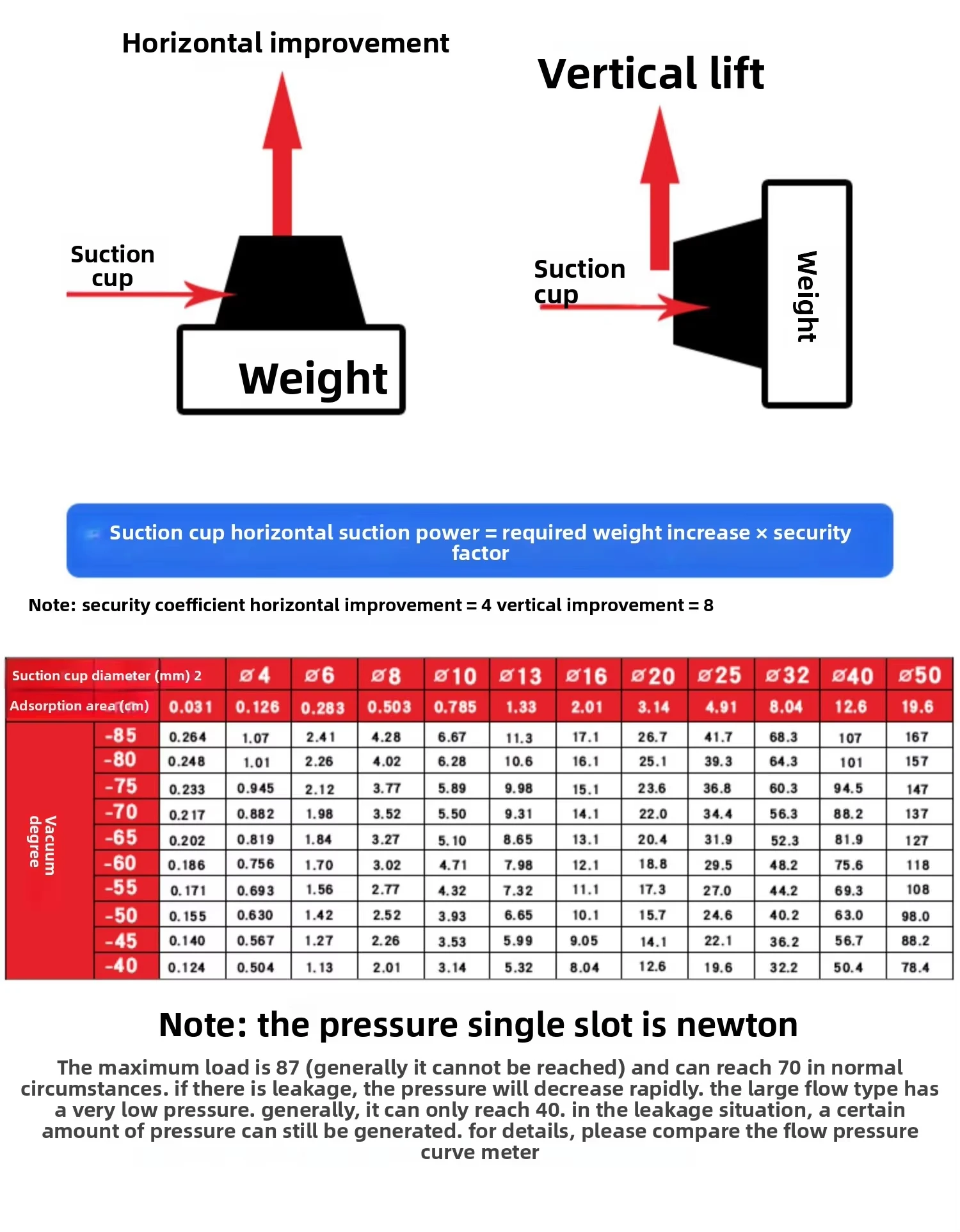

Stable Flat Suction Performance: Precision smooth flat suction surface achieves seamless fitting with various flat workpieces, uniform vacuum pressure distribution ensures stable holding force, no workpiece slipping or falling during high-speed robot movement.
Compact Integrated Body Design: Mini integrated structure fits perfectly with slim robot gripper end fixtures, does not increase overall gripper volume, and will not affect robot motion stroke and working path.

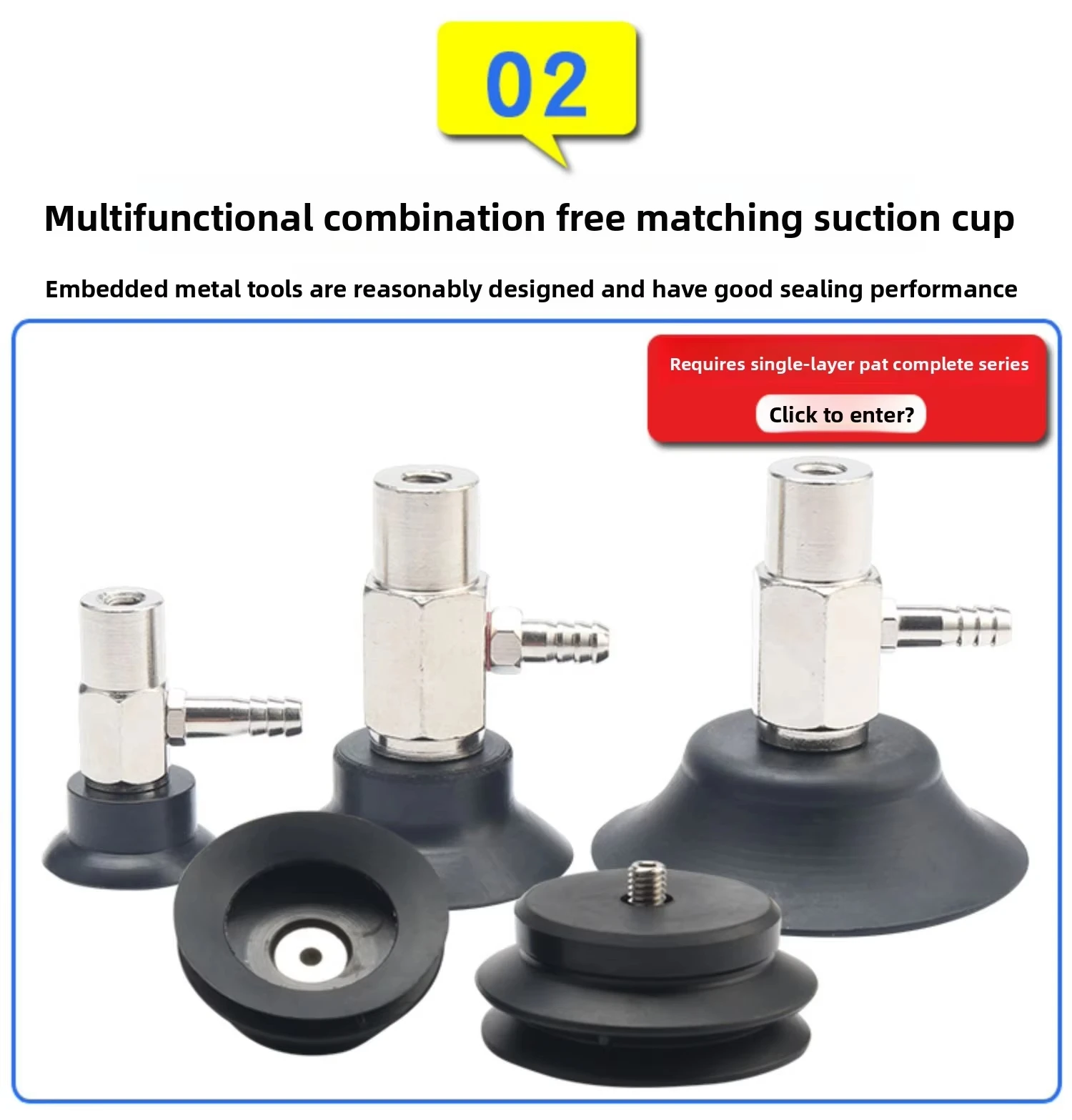

Universal Compatibility & Easy Replacement: Standard side inlet interface matches mainstream pneumatic pipeline and robot gripper accessories, supporting direct plug-and-play replacement without modifying existing automation equipment structure.
Product Advantages
First, Unique side inlet solves narrow-space installation pain points. Lateral air channel design eliminates top pipeline interference, which is irreplaceable for compact robot grippers and dense multi-suction-cup combined fixtures. Second, Excellent wear resistance for long-term automation operation. Reinforced rubber material adapts to 24-hour continuous cyclic production, reducing frequent replacement frequency and lowering equipment maintenance downtime. Third, Full-size seamless coverage. Complete 9-size lineup realizes unified procurement and inventory management, supporting single-point precise grabbing and multi-point combined synchronous grabbing. Fourth, Lightweight body reduces robot load: Slim compact structure brings no extra burden to robot gripper, ensuring high-speed, high-precision and stable robot running performance. Fifth, Cost-effective universal pneumatic fittings. Stable industrial quality with competitive factory wholesale price, perfect direct replacement for original brand side inlet suction cups with zero adaptation cost.
How to Use
First, select matched size according to workpiece dimension, weight and gripper installation space: 06/08/10mm for tiny precision electronic parts; 15/20/30mm for medium plastic and metal components; 35/40/50mm for large flat sheet workpieces. Check suction cup surface integrity, side inlet port smoothness and rubber elasticity before installation. Second, clean dust, oil stains and fine debris on suction cup contact surface and workpiece surface to avoid air leakage caused by particle gaps, ensuring complete vacuum sealing. Third, connect vacuum pipeline to the side inlet port stably, fix the suction cup firmly on robot gripper fixture, confirm no pipeline bending or interface loosening. Fourth, conduct idle vacuum test, adjust vacuum negative pressure to standard working range, check vacuum response speed and sealing condition, ensure no air leakage from side inlet and cup body. Fifth, perform trial gripping test with actual workpieces, verify stable adsorption without slipping, offset or workpiece surface damage during robot moving, lifting and rotating actions. Fine-tune vacuum pressure to optimize gripping stability. Sixth, launch formal automated robot production after debugging. For daily maintenance, regularly clean dirt on suction surface and side inlet airflow channel; check interface tightness regularly; replace suction cups timely if rubber hardening, suction weakening or airflow blockage occurs to guarantee long-term stable operation of robot gripper system.
