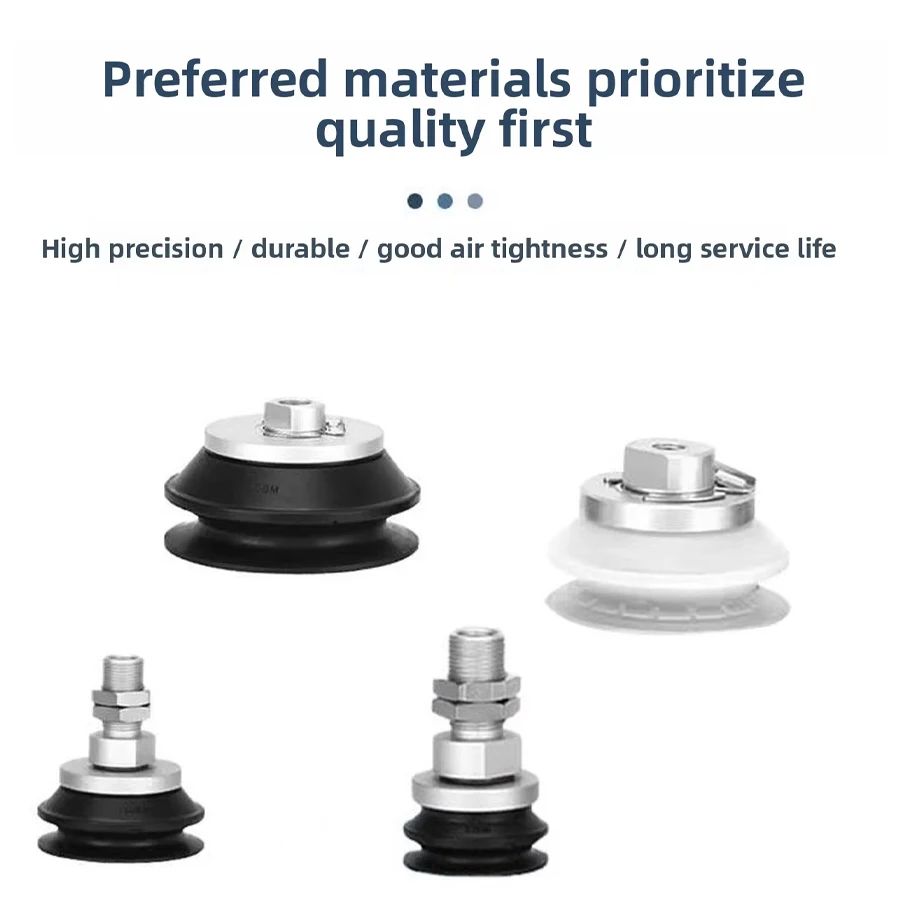

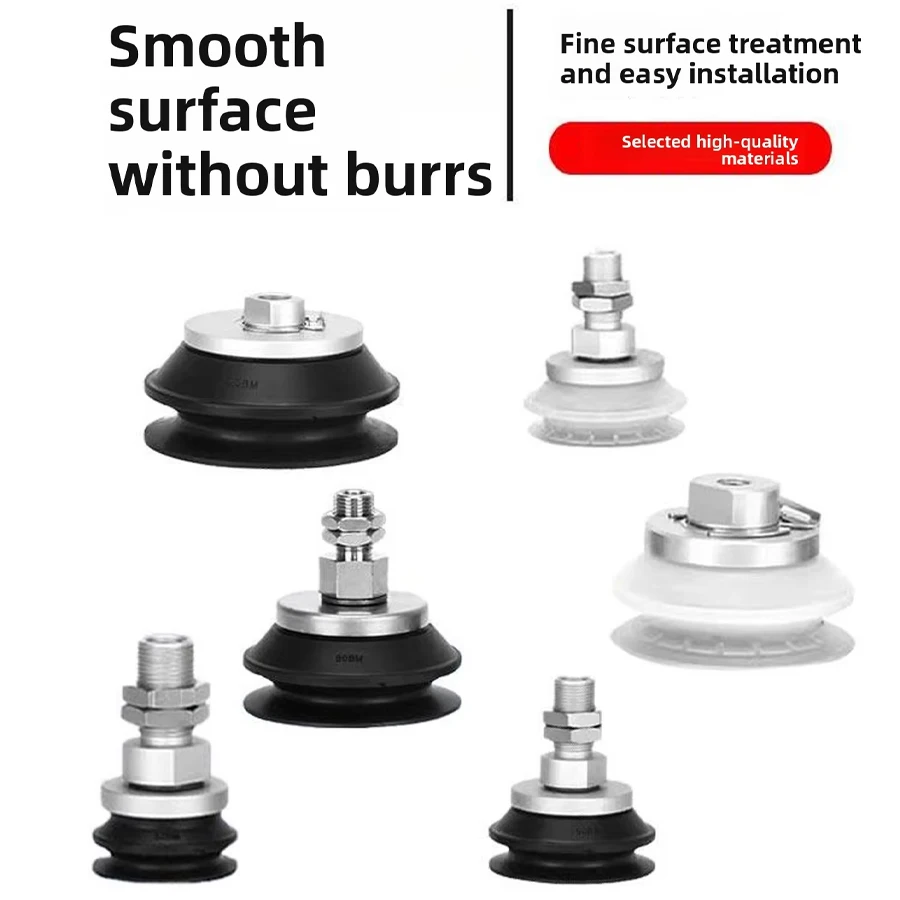

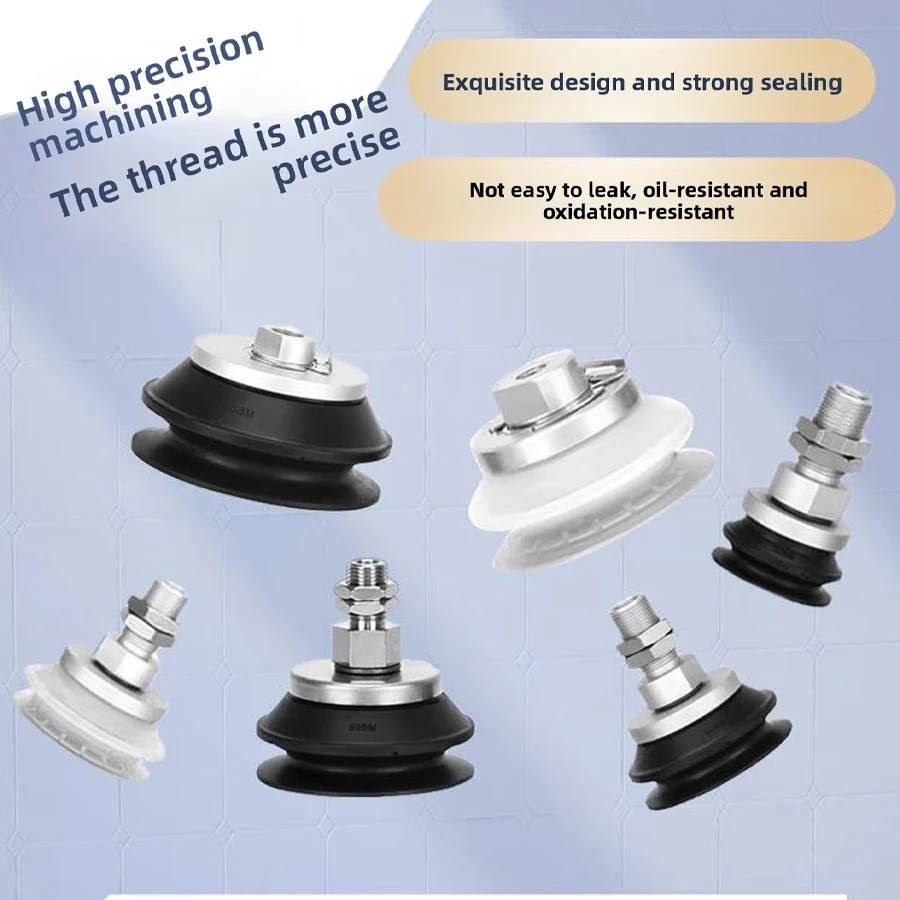

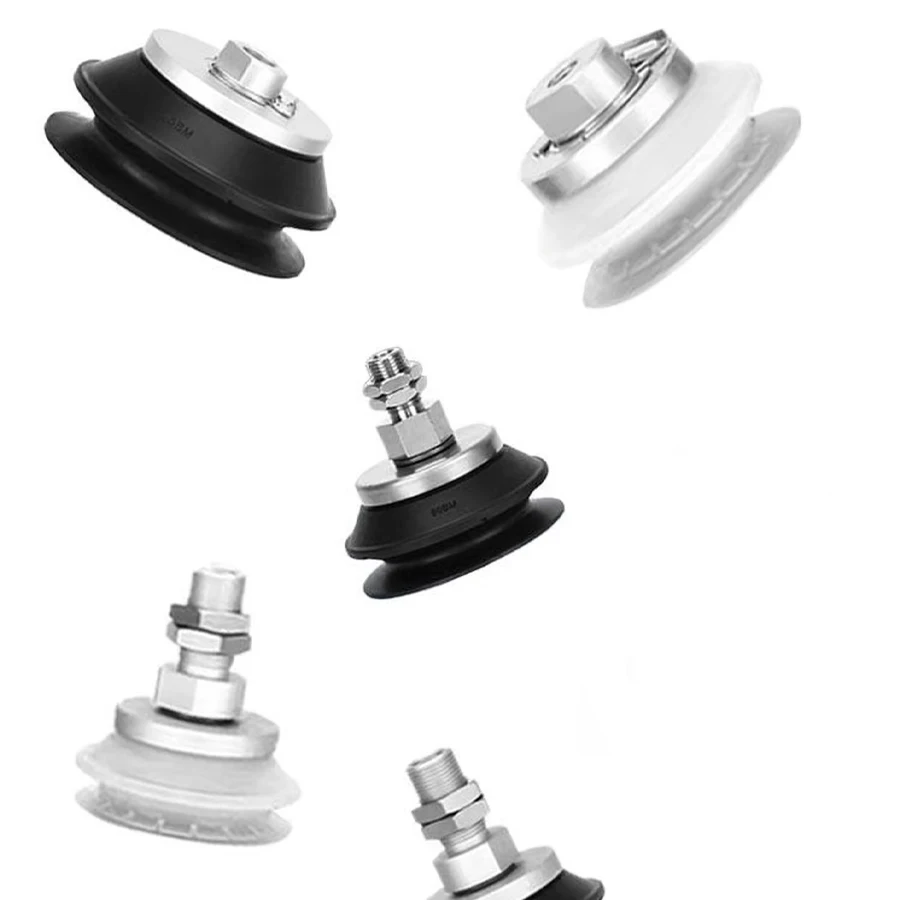

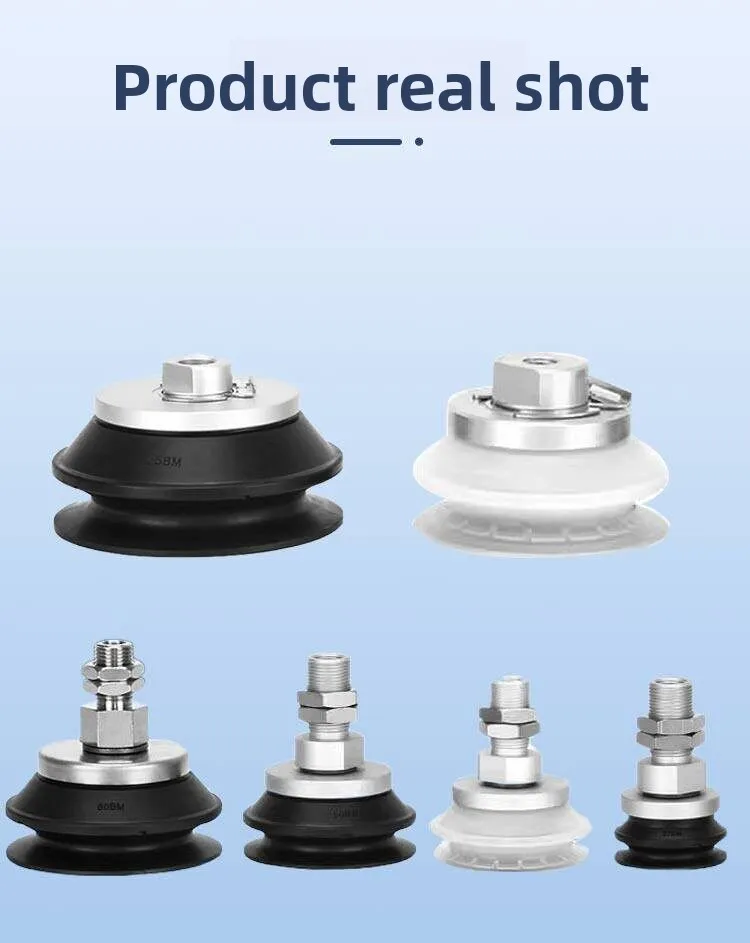

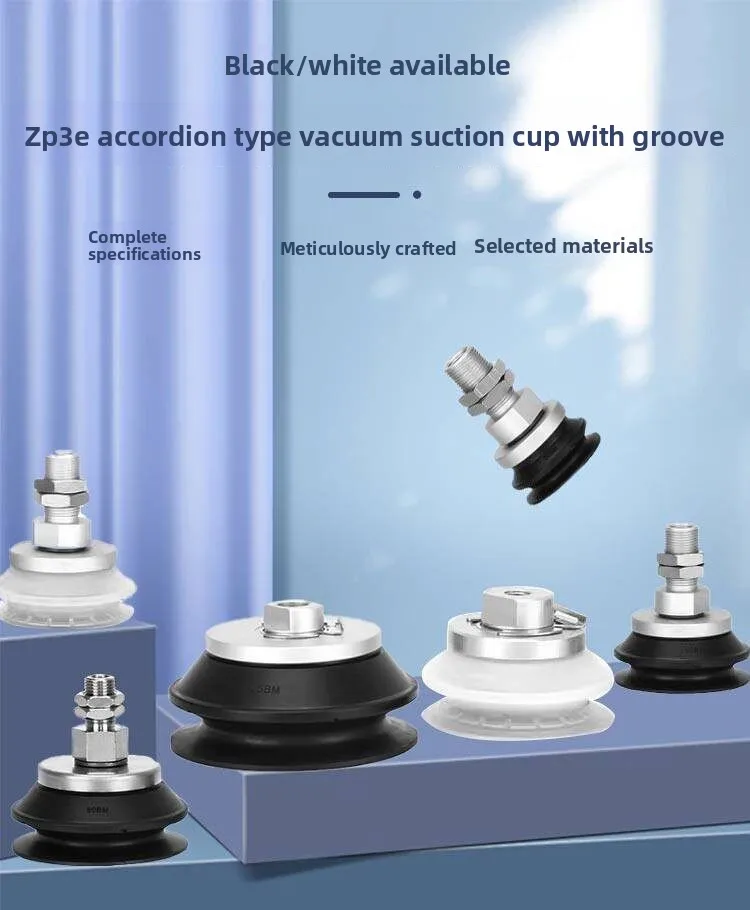

The SMC ZP3E-32/40/50UMS/BMN is a heavy-duty industrial pneumatic negative pressure vacuum suction cup specially designed for automatic manipulator and industrial automation handling systems. Adopting high-quality food-grade and industrial-grade silicone material, this vacuum pad features excellent wear resistance, anti-aging performance and soft fitting property, which can achieve stable, no-mark and damage-free adsorption on various flat, smooth and slightly uneven workpiece surfaces.

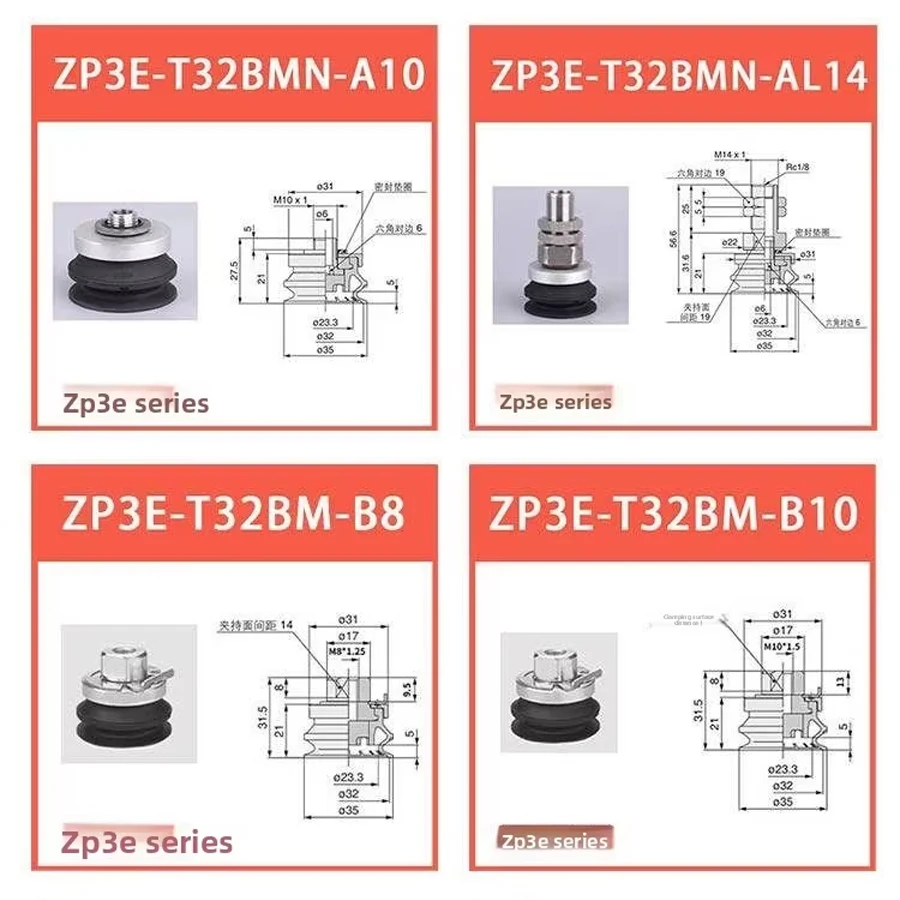

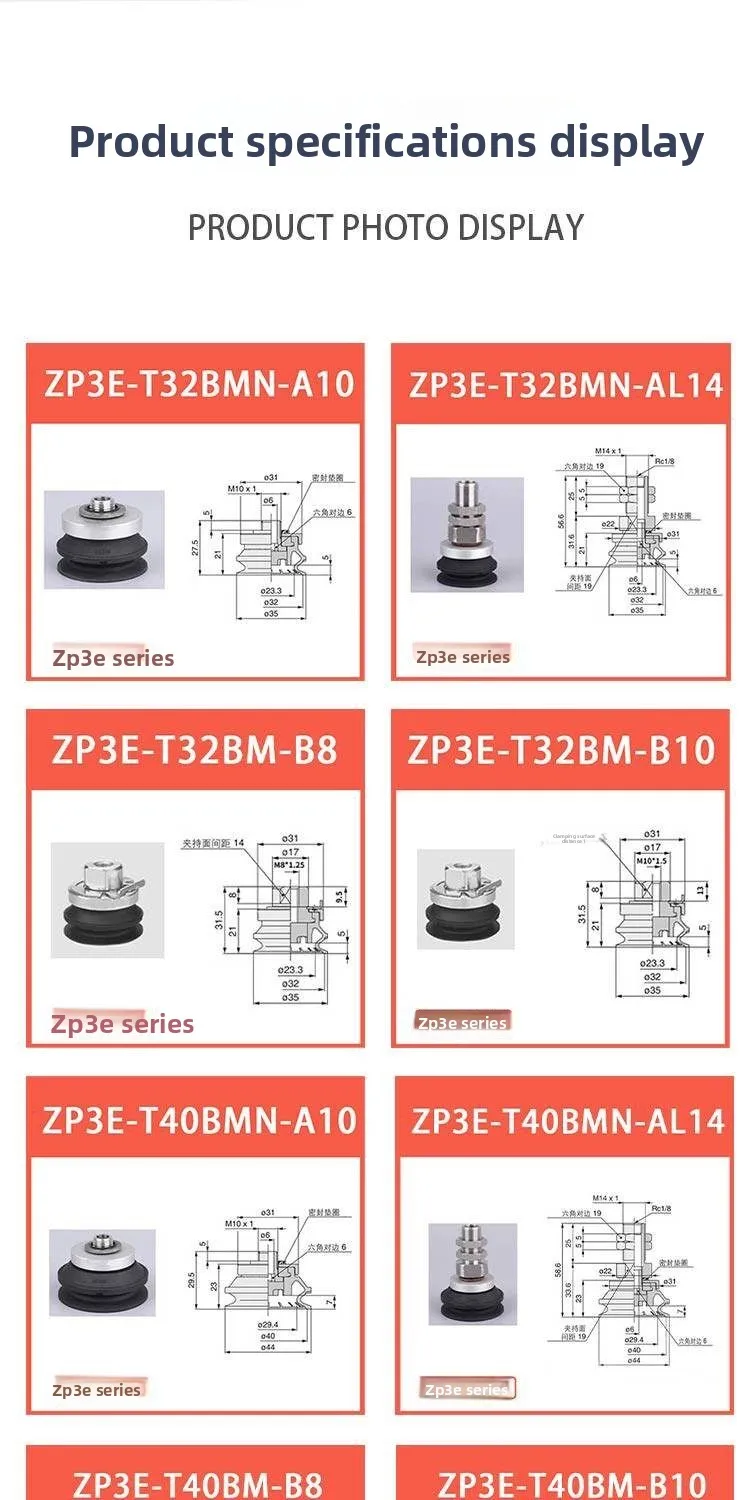

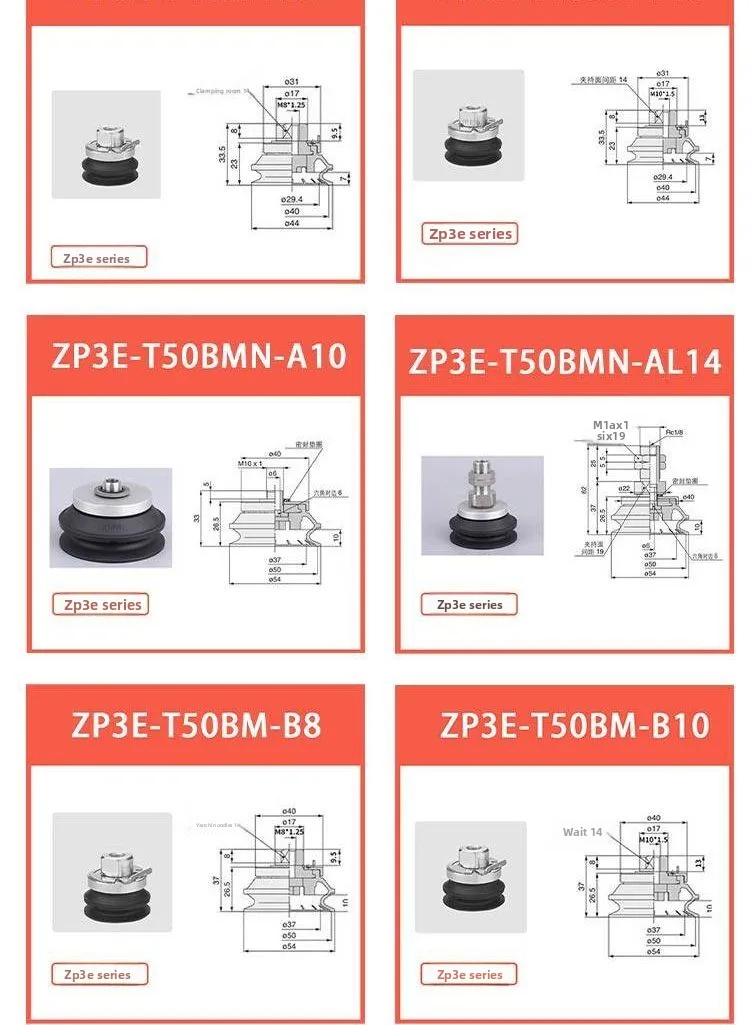

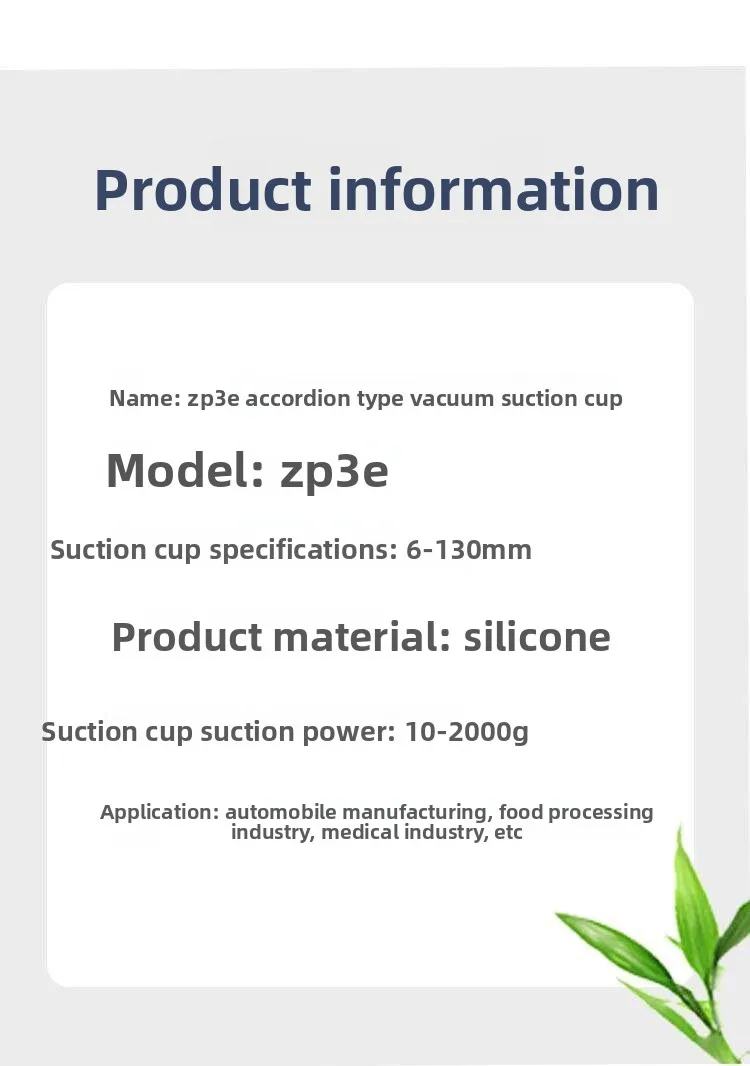

Available in three mainstream specifications of 32mm, 40mm and 50mm, the ZP3E series suction cup supports stable negative pressure pneumatic adsorption, with strong bearing capacity and reliable gripping force, perfectly meeting the heavy-duty handling demands of industrial production lines. It is equipped with a standardized installation structure, featuring simple assembly, high compatibility and good stability during high-frequency reciprocating operation. Widely applicable to automatic manipulators, robotic arms, packaging machinery, material sorting and loading/unloading equipment, it is a core durable accessory for automated industrial material handling, effectively improving production efficiency and reducing equipment operation failure rates.
Product Features

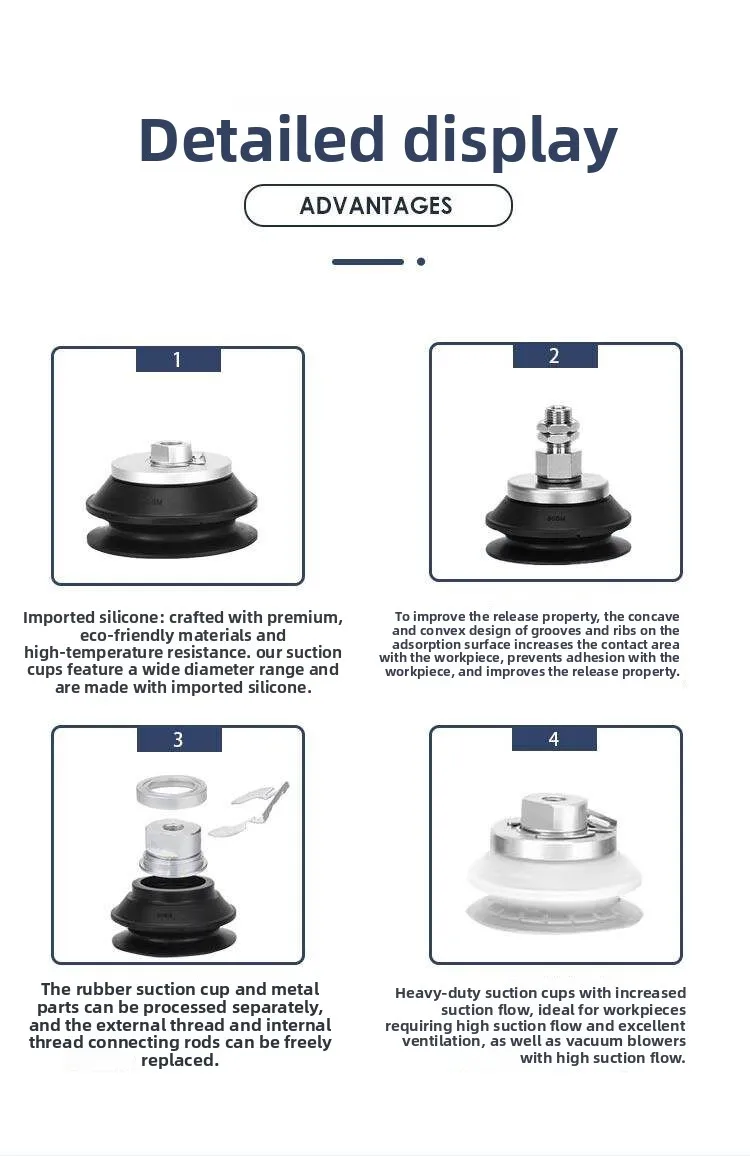

This SMC ZP3E series vacuum suction cup adopts integrated industrial optimization design, featuring highly targeted structural performance and material performance. Firstly, it uses high-elasticity premium silicone material, which integrates wear resistance, anti-aging, oil resistance and high-temperature resistance, adapting to long-term continuous operation in complex industrial environments without easy deformation or damage. Secondly, it adopts professional negative pressure pneumatic adsorption structure, with uniform internal stress and tight fitting design, which can perfectly fit flat, smooth and slightly irregular workpiece surfaces. In addition, the product has high structural stability, supports high-frequency reciprocating movement and rapid grabbing and releasing actions of mechanical arms, with low operational vibration and no offset adsorption. Meanwhile, multiple size specifications (32mm/40mm/50mm) are available, with strong compatibility, matching most mainstream industrial manipulators and pneumatic equipment on the market.
Product Advantages
Compared with ordinary vacuum suction cups, the ZP3E-32/40/50UMS/BMN heavy-duty suction cup has prominent practical advantages in industrial application. It has strong heavy-duty adsorption capacity, stable negative pressure output, large bearing force, which can stably grab heavy workpieces and effectively avoid slipping and falling during handling. It achieves zero-mark damage-free adsorption, the soft silicone contact surface will not scratch, crush or leave traces on the surface of workpieces such as plastic, metal, glass and packaging materials, protecting product integrity. It has ultra-long service life, resisting aging and abrasion, reducing frequent replacement costs and equipment downtime. Moreover, the product is easy to install and highly versatile, with standard interface design, plug-and-play, no complicated debugging required, which can greatly improve the overall operating efficiency of automated production lines and reduce manual maintenance costs.
How to Use
First, check the suction cup appearance and silicone contact surface before use to confirm no cracks, wear, dirt or foreign blockages, ensuring the negative pressure air channel is unobstructed. Second, select the matching ZP3E specification (32mm/40mm/50mm) according to the workpiece size and weight, and install the suction cup on the pneumatic manipulator or robotic arm equipment through the standard interface, and tighten the connection to avoid air leakage. Third, connect the pneumatic negative pressure air source, debug the equipment air pressure parameters to ensure stable negative pressure output, and conduct a no-load test run to verify normal adsorption and release actions. Fourth, in formal operation, align the suction cup with the smooth surface of the workpiece, start the pneumatic system to form negative pressure adsorption, and carry out handling, shifting and sorting operations after stable gripping. Fifth, after completing the work task, cut off the negative pressure air source to release the workpiece, and regularly clean the suction cup surface dust and dirt, check the silicone wear degree, and replace it in time if aging or damage occurs to ensure continuous and stable operation of the equipment.
About Product
Highlight
Heavy Duty Industrial Suction Cup: Designed for robust industrial applications.
Automatic Reclaim Suction: Efficiently reclaims suction for continuous use.

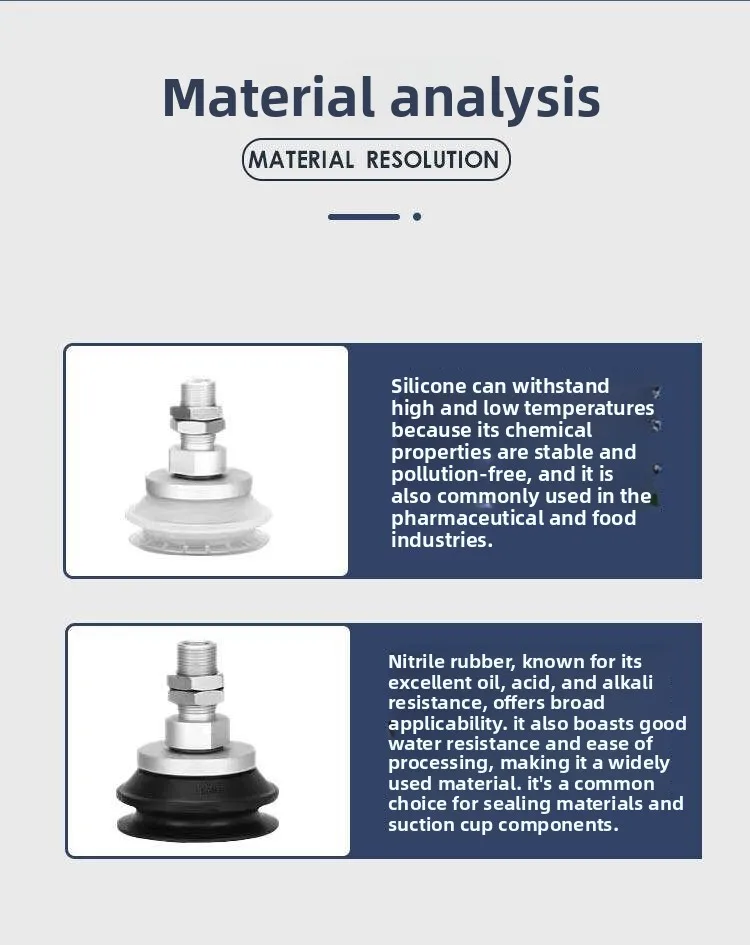

Silicone Material: Offers durability and resistance to aging.
Wide Surface Compatibility: Effective on flat, curved, and uneven surfaces.
Imported Quality: Ensures high performance and reliability.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
