Product Features

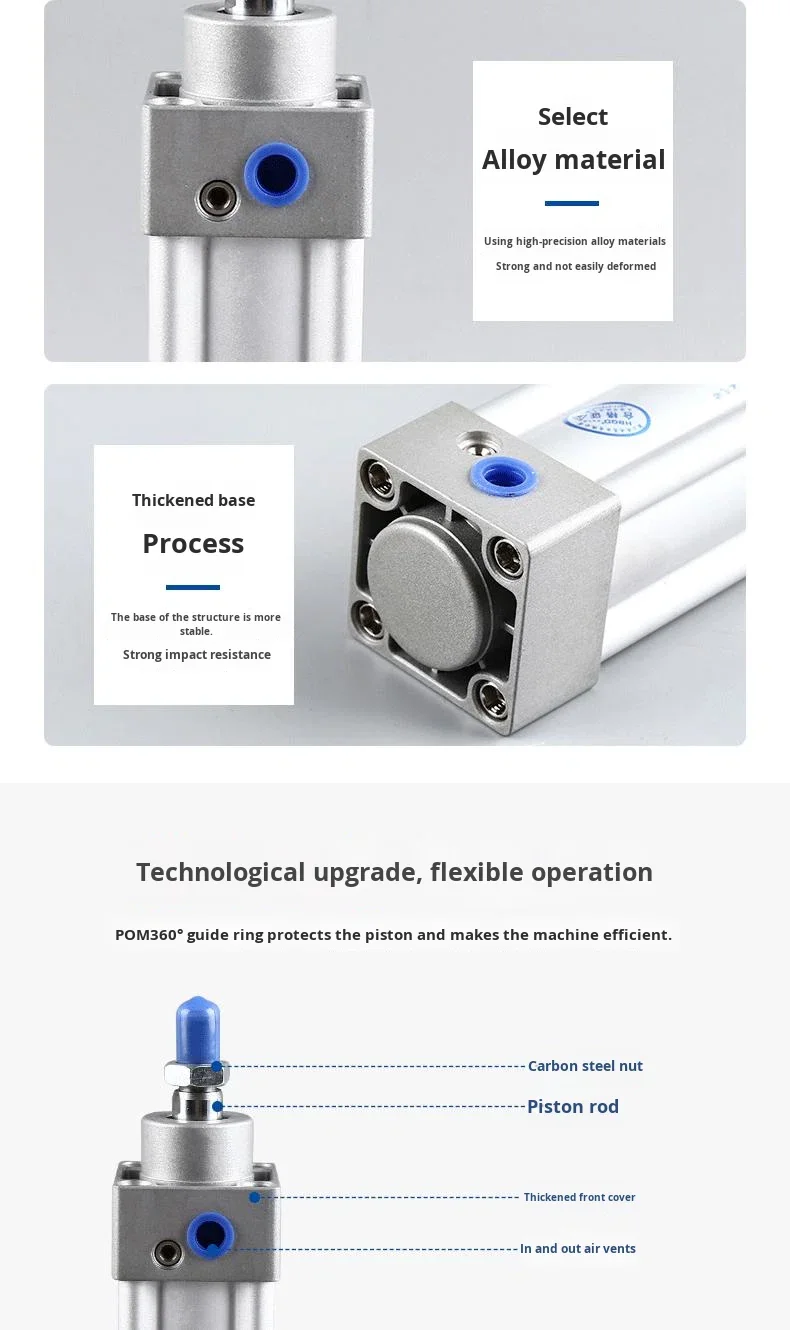

The SI40 series standard pneumatic cylinder is a universal air-driven power transmission component specially designed for automated production machinery and general industrial equipment. It covers complete multi-stroke specifications including 25mm, 75mm, 100mm, 200mm, 400mm and 500mm, fully meeting different linear driving travel requirements of industrial production. Adopting high-strength aluminum alloy cylinder body and integrated precision bearing structure, the cylinder features smooth linear reciprocating motion, stable operation and no jamming. Equipped with high-quality wear-resistant and airtight sealing parts, it effectively prevents air leakage and pressure loss during long-term continuous operation. With standard industrial unified mounting size and pneumatic interface, it boasts strong versatility and compatibility, suitable for most automated assembly equipment, conveying machinery and processing production lines. The overall structure is compact, sturdy and impact-resistant, adapting to complex and harsh industrial working environments.
Product Advantages
This SI40 series standard air cylinder has prominent industrial application advantages. First, high-strength bearing operation system. The built-in high-precision bearing ensures ultra-smooth telescopic movement, effectively reducing friction and mechanical noise, and improving the stability and accuracy of linear driving. Second, diversified full-stroke specifications. Multiple stroke options cover short-distance positioning and long-distance pushing demands, realizing one-stop matching for different automation equipment. Third, excellent wear resistance and durability. Premium alloy body and upgraded sealing accessories resist frequent friction, high-pressure operation and aging damage, greatly extending the service life and reducing equipment replacement frequency. Fourth, stable pneumatic driving performance. Good air tightness ensures stable output power without pressure attenuation, supporting high-frequency continuous cyclic work of production lines. Fifth, easy installation and high compatibility. Standard size design supports direct installation and quick replacement without modification, saving installation and maintenance costs. It is highly cost-effective and widely applicable to various industrial automation scenarios.
How to Use
First, conduct a comprehensive inspection before installation, check the cylinder body, bearings, piston rod and sealing rings for deformation, scratches, air leakage or damage, and confirm that the cylinder stroke specification matches the equipment operation requirements. Second, clean the equipment mounting base and installation surface to remove dust, oil stains and sundries, fix the cylinder firmly with standard mounting bolts to ensure stable installation without shaking or offset. Third, correctly connect the pneumatic pipeline according to the equipment specifications, check the tightness of all interfaces, and adjust the air pressure to the standard working pressure range to avoid excessive pressure damaging the cylinder. Fourth, perform idle operation test, turn on the air source to make the cylinder stretch and retract repeatedly, check for jamming, abnormal noise or air leakage to ensure flexible and smooth operation. Fifth, carry out load trial operation, test the cylinder pushing and pulling performance under actual working load, fine-tune the air pressure and buffer parameters to ensure stable and reliable driving force. Sixth, after confirming the trial run is normal, put the equipment into formal automated production. For daily maintenance, regularly clean the cylinder surface and piston rod, keep the working environment clean and dry, regularly check the air tightness and bearing operating status, and replace aging sealing parts in time to ensure long-term stable and efficient operation of the pneumatic cylinder.
