Product Features
This ZP2-TB H5 series vacuum suction cup adopts optimized integrated flat nozzle molding technology, with a fully flat and smooth contact surface, no protruding corrugated structure, ensuring uniform stress and zero indentation adsorption for ultra-thin flat workpieces. Made of high-density industrial silicone raw material, it boasts stable flexibility, wear resistance and low-temperature resistance, maintaining excellent sealing performance without hardening or deformation in long-term industrial operation. Equipped with dual MTN and MTS model configurations and full-size specifications from 10mm to 30mm, it realizes one-stop matching for small, medium and large flat workpieces, with extremely high universality. The precision integrated forming process ensures tight structural fit, effectively avoiding vacuum leakage and pressure attenuation, and maintaining stable and lasting suction force during high-speed automation operation. It supports exclusive OBM customized processing, including size fine-tuning, appearance printing, parameter optimization and personalized packaging, meeting brand customers and engineering project customization needs. The compact flat structure is lightweight and space-saving, compatible with most mainstream robotic arms, vacuum generators and automated mechanical equipment, supporting quick disassembly and replacement.
Product Advantages
First, high-precision flat non-damage adsorption. Unique H5 flat nozzle design avoids workpiece wrinkling, indentation and deformation caused by traditional bellows suction cups, perfectly adapting to precision thin flat workpieces and improving production yield. Second, full-spec one-stop matching. Complete 10/15/20/25/30mm sizes and MTN/MTS dual models cover all conventional flat workpiece gripping scenarios, simplifying customer procurement and inventory management. Third, industrial durable silicone performance. Premium industrial silicone material resists long-term friction, extrusion and environmental aging, with low failure rate and long service life, reducing equipment maintenance costs. Fourth, professional OBM custom service. Support exclusive brand customization, personalized parameter adjustment and customized processing, providing one-stop solution for brand distributors and engineering customers. Fifth, stable & efficient automated operation. Ultra-flat tight sealing structure ensures fast vacuum forming and stable negative pressure output, adapting to high-frequency and high-speed automated production lines with excellent operational stability.
How to Use
First, select the matching specification and model according to workpiece size and equipment parameters, choose suitable size from 10/15/20/25/30mm and select MTN or MTS model as required, confirm OBM customization parameters if needed. Second, inspect the flat silicone nozzle surface before installation, check for cracks, aging, deformation and surface burrs to ensure complete flatness and sealing performance. Third, thoroughly clean the suction cup flat contact surface and workpiece surface to remove dust, oil stains and fine impurities, ensuring full close fitting for vacuum sealing. Fourth, align the suction cup interface with the pneumatic connector of automated machinery or manipulator, install and lock firmly to prevent loosening and air leakage during high-frequency operation. Fifth, connect the vacuum pipeline and conduct idle air tightness test, adjust vacuum pressure to the optimal range for flat workpieces, confirm no air leakage and stable suction response. Sixth, perform trial gripping on flat workpieces, verify stable adsorption without slipping, shaking or workpiece deformation, then start formal automated production. For daily maintenance, regularly clean residual dust on the flat nozzle surface, check silicone elasticity and sealing integrity, and replace the suction cup timely if suction weakens or aging failure occurs.
Highlight
Industrial Grade: Built for heavy-duty use in machinery automation.
Durable and Flexible Sealing: Provides reliable adhesion for various surfaces.

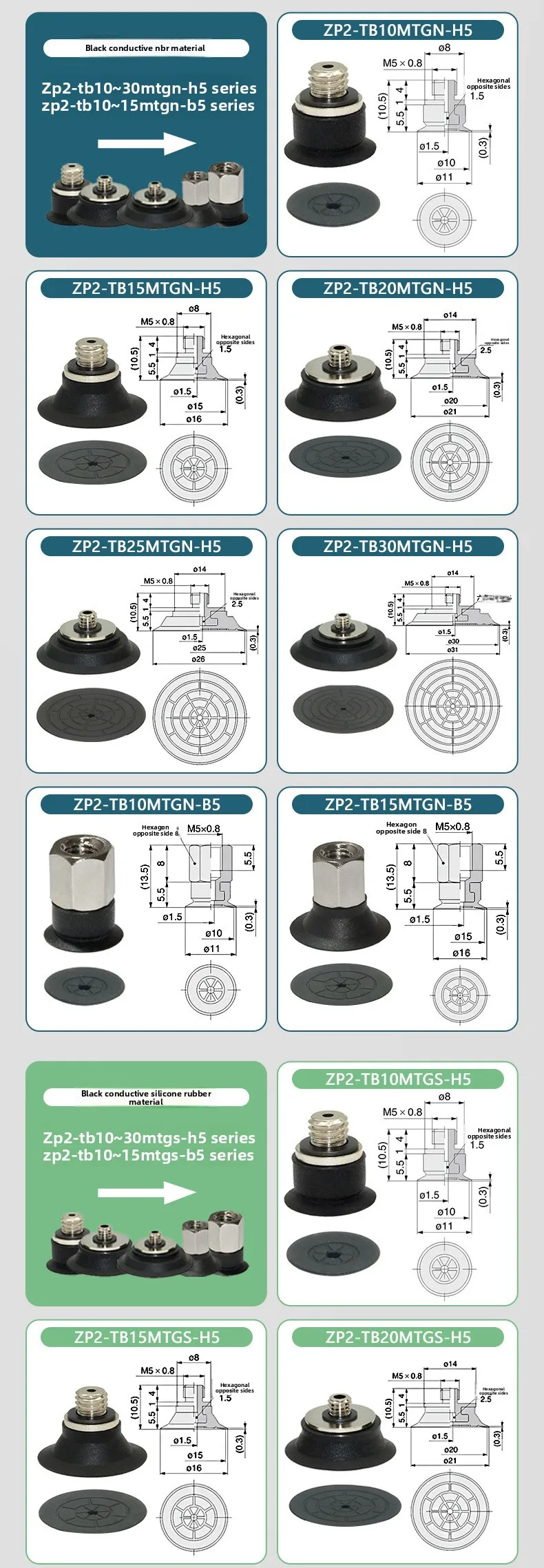

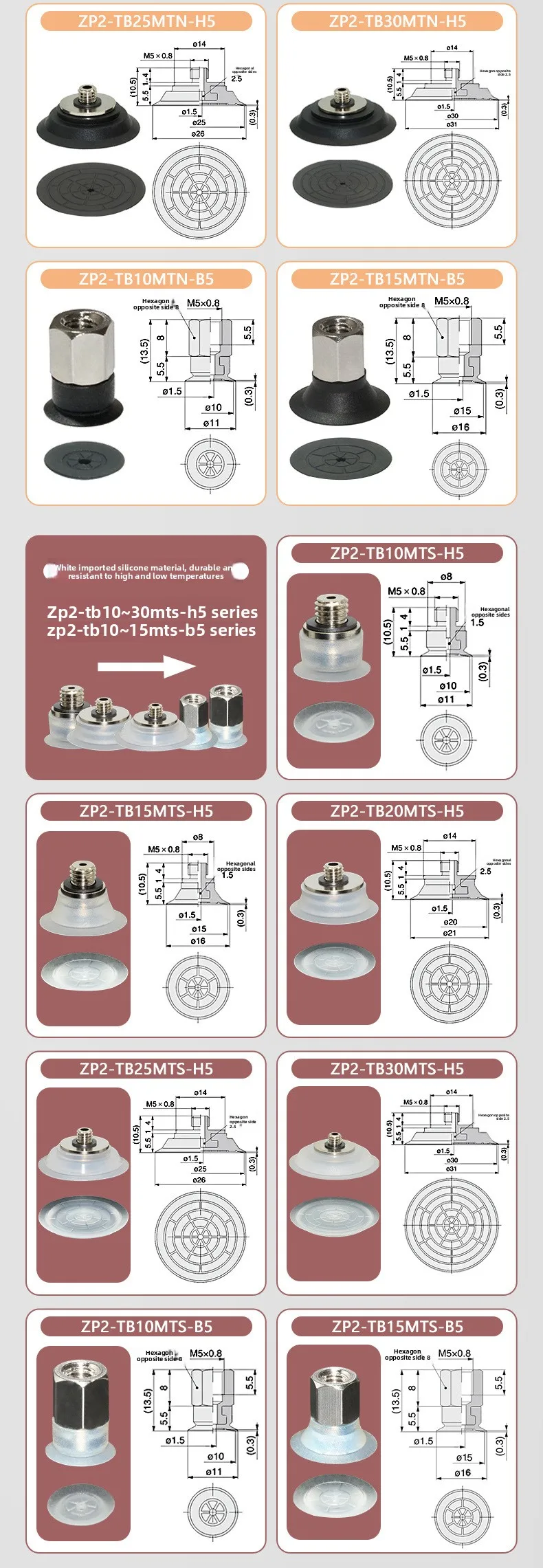

Multiple Sizes: Available in TB10/15/20/25/30MTN/MTS-H5 for versatile applications.
Customized Solutions: Offers OBM options for personalized industrial needs.
Silicone Material: Ensures flexibility and durability for long-term use.
