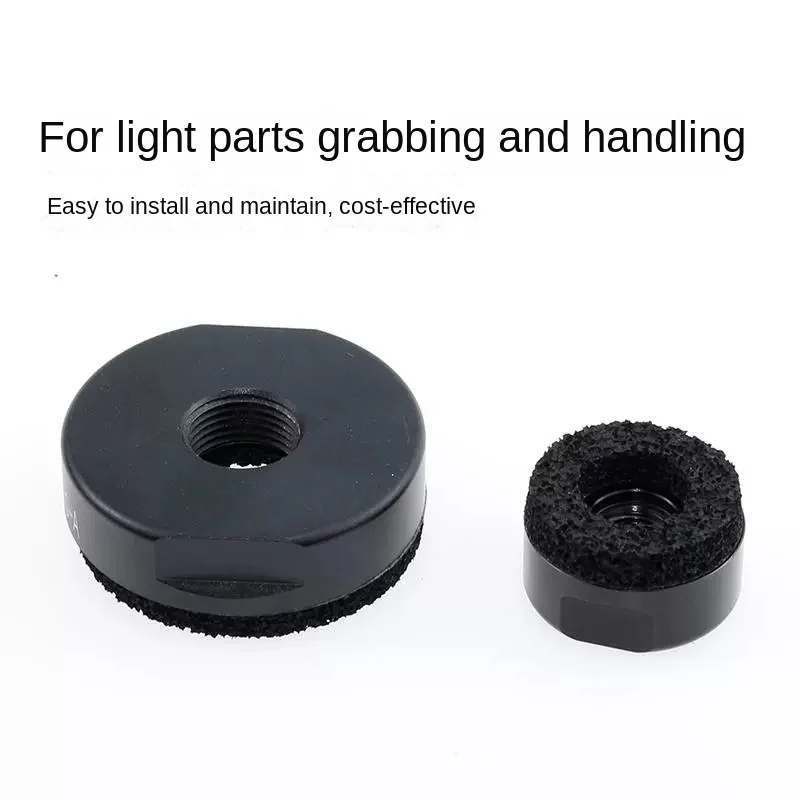

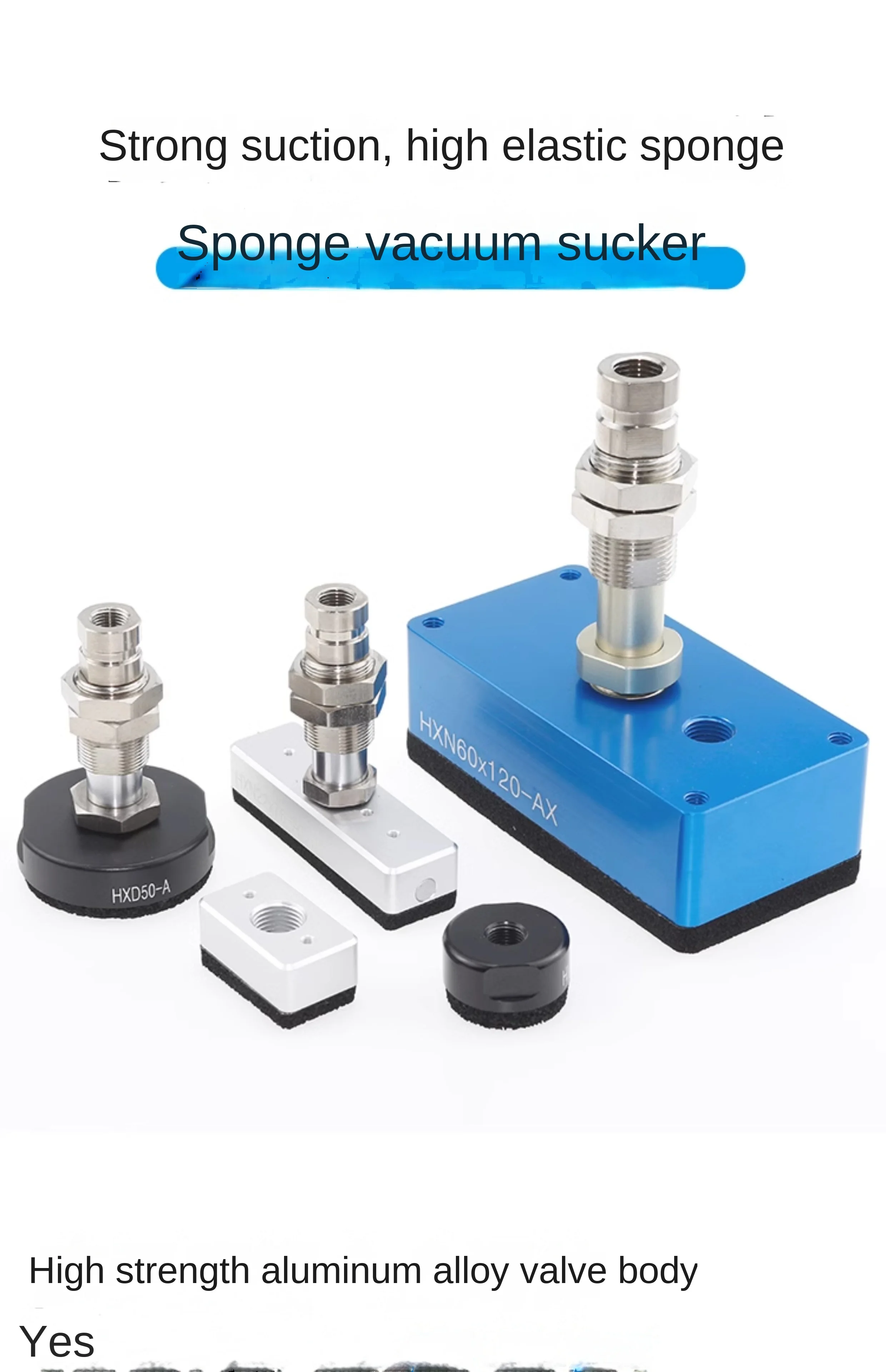

HXD30-A Manipulator Sponge Suction Cup, 40/50 Mini Vacuum Suction Tool, HXN60*120/22*38/76-C Sponge Suction Cup

HXD30-A Manipulator Sponge Suction Cup, 40/50 Mini Vacuum Suction Tool, HXN60120/2238/76-C Sponge Suction Cup

Place of Origin:	CHINA
Brand Name:	Sponge Suction Cup
Model Number:	Hxd
Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton package/Wooden cases
Delivery Time:	Depending on the order quantity
Payment Terms:	L/C, T/T
Supply Ability:	Negotiable

Inquiry Contact Us

Description

Is there a problem? Please contact us to serve you!

+86-18015634179

[email protected]

Inquiry

Detail Information

Disc diameter：	Customized Accepted	Material:	Sponge Rubber
Highlight 1:	Non-destructive Workpiece Handling	Highlight 2:	Adaptability to Diverse Workpiece Surfaces
Application:	Industrial Automated Production Lines	Name:	Vacuum suction cup
High Light:	Rapid Pick-and-place for High-efficiency Automation

Description

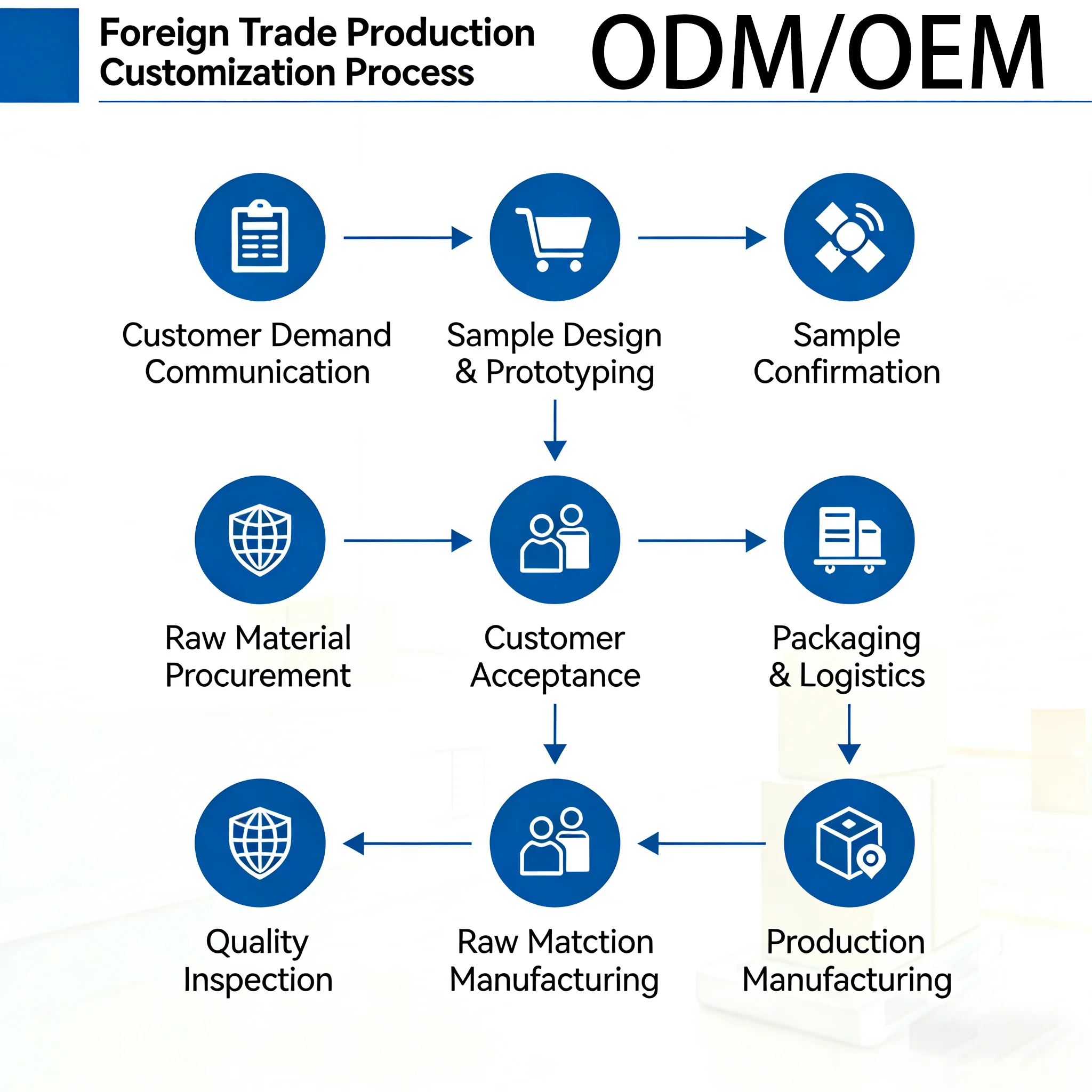

Process Steps	ODM Process	OEM Process
Step 1	Customer Requirement	Customer Requirement
Step 2	Scheme Appraisal	Scheme Appraisal
Step 3	Profile Confirmation (covering Packing, Dimension, unctional)	Negotiation Cooperation
Step 4	Product Confirmation	Quote
Step 5	Small Batch Production	Sample Confirmation
Step 6	Sample Design	Small Batch Production
Final Step	-	Product Confirmation

Functions and Roles of Sponge Vacuum Cups

Sponge vacuum cups are core components of industrial pneumatic gripping equipment. Based on the principle of vacuum adsorption and made of flexible sponge materials, they are specially designed for easily deformable, fragile, and uneven-surfaced workpieces. They are widely used in material handling processes of manipulators and automated production lines.

I. Core Functions

Vacuum Adsorption and Gripping

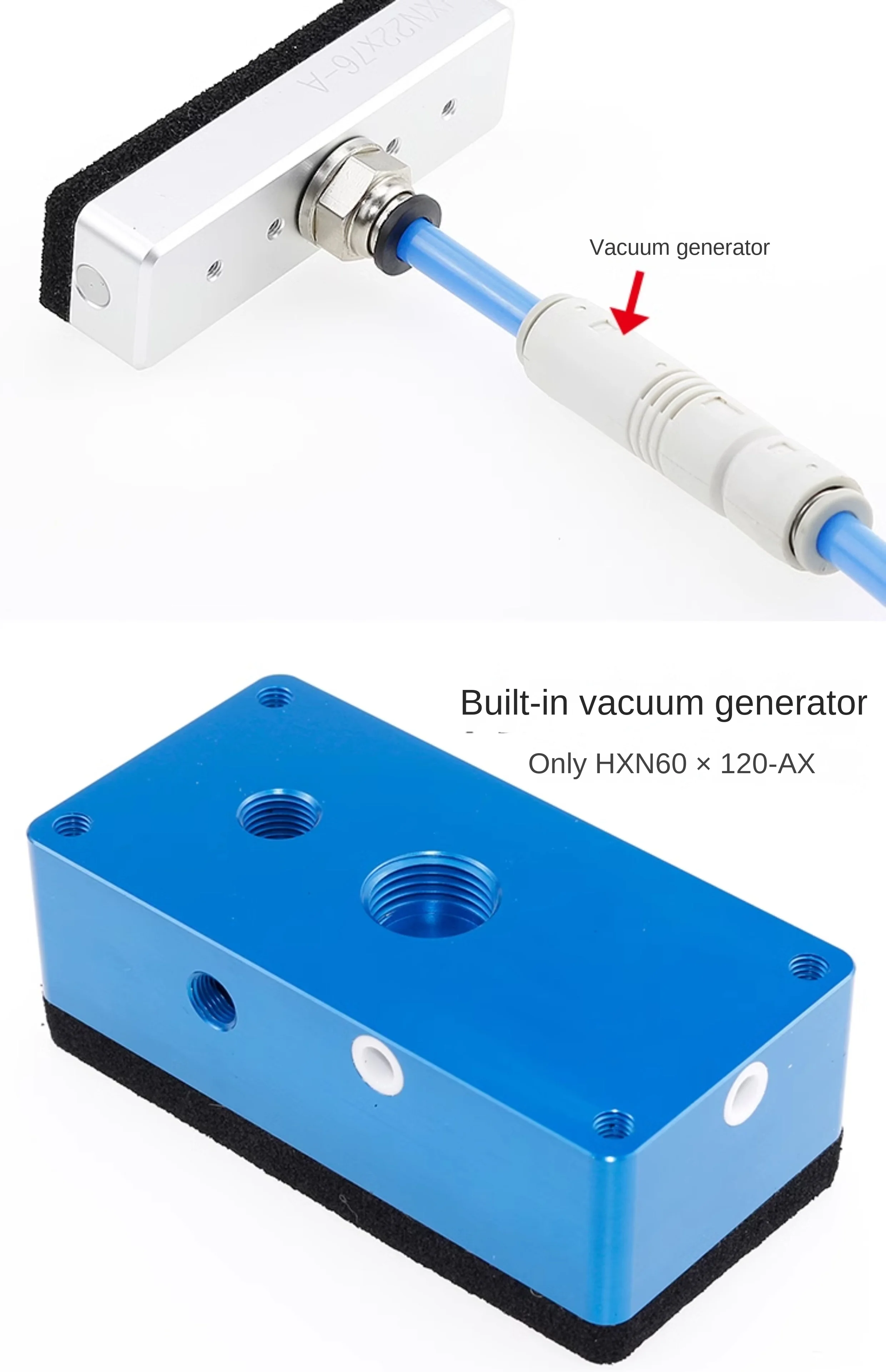

By connecting to a vacuum generator to generate negative pressure, the sponge vacuum cup fits closely to the workpiece surface and forms a sealed chamber. It firmly holds the workpiece by utilizing atmospheric pressure, enabling stable gripping and releasing without the need for additional fixture fixing.

Flexible Fitting Adaptation

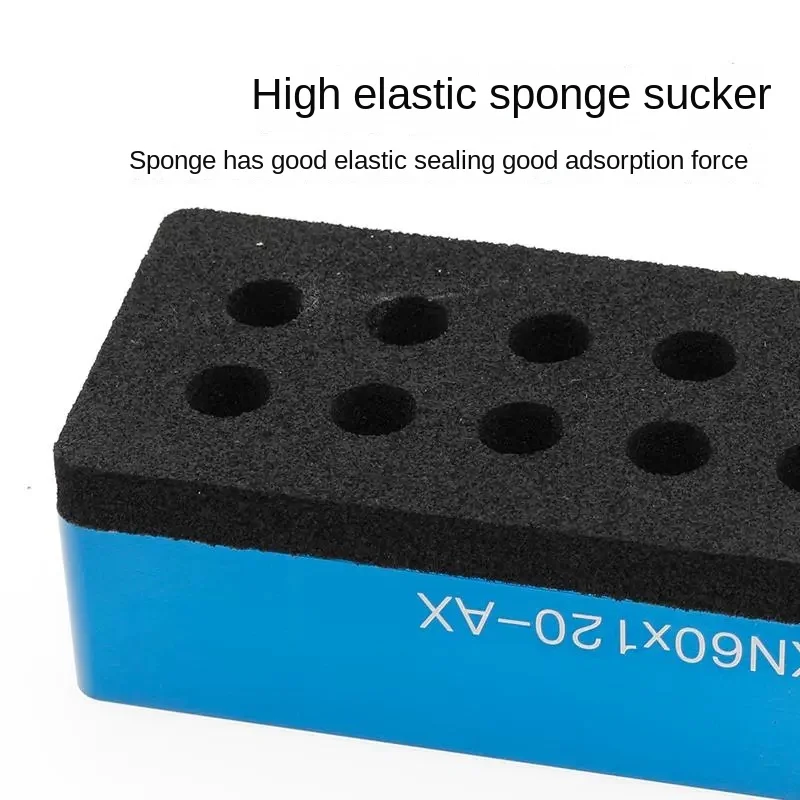

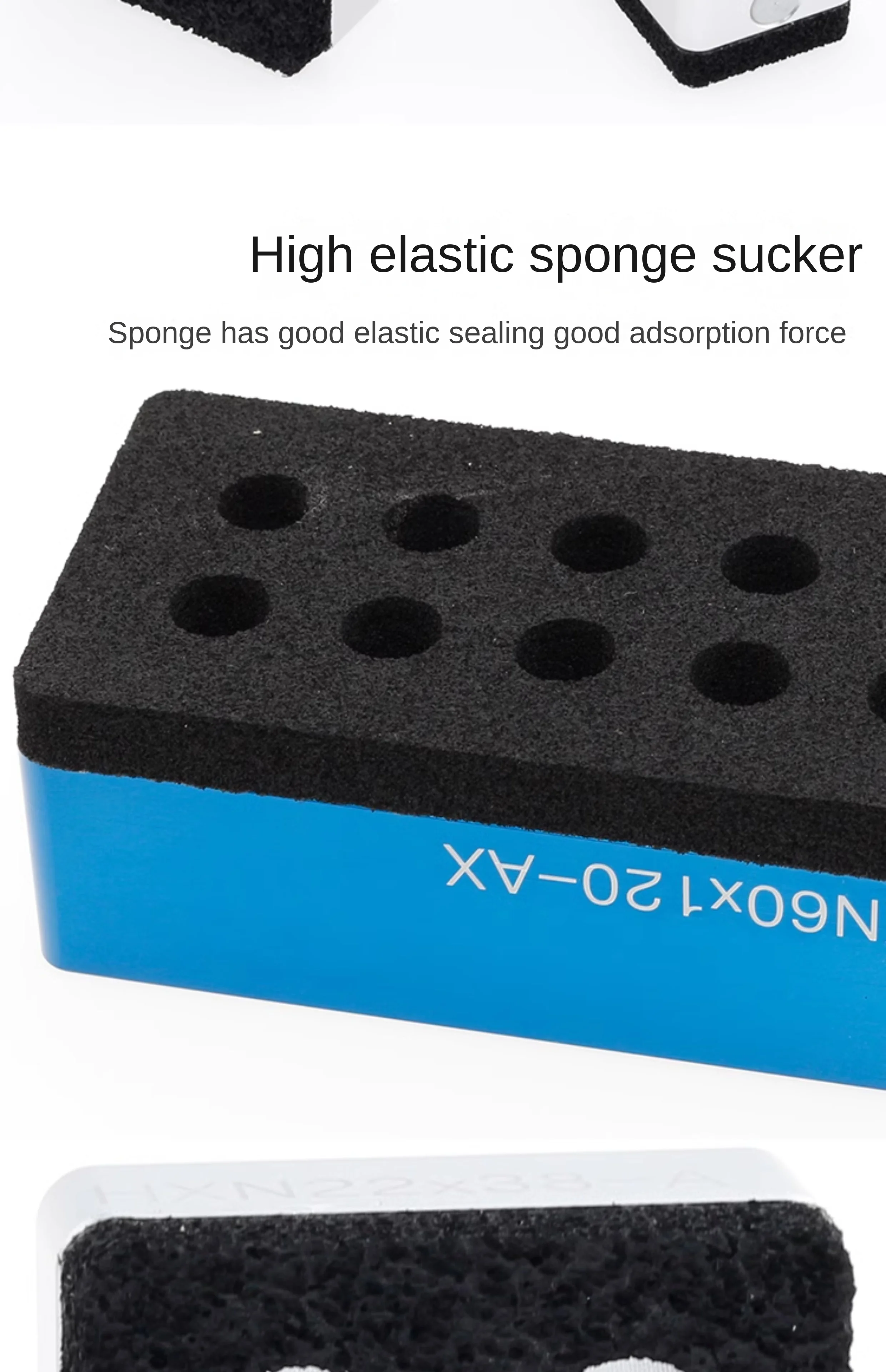

The sponge material of the cup has excellent flexibility and elasticity. It can automatically deform according to the surface shape of the workpiece (such as curved, corrugated, and rough surfaces), fill gaps, ensure sealing effect, and adapt to materials with different flatness levels.

Buffering and Protection

The sponge layer plays a buffering role during the adsorption process, reducing the impact force when the cup contacts the workpiece and avoiding scratches, indentations, or damage on the workpiece surface. It is especially suitable for fragile items such as glass, plates, films, and cartons.

Multi-specification Adaptation and Adjustment

Sponge vacuum cups of corresponding sizes can be selected according to workpiece dimensions, or multiple groups of cups can be used in combination. Some models support adjusting the adsorption pressure to adapt to workpieces of different weights and materials, improving gripping flexibility.

item	value
Place of Origin	China
	Jiangsu
Processing Service	Moulding

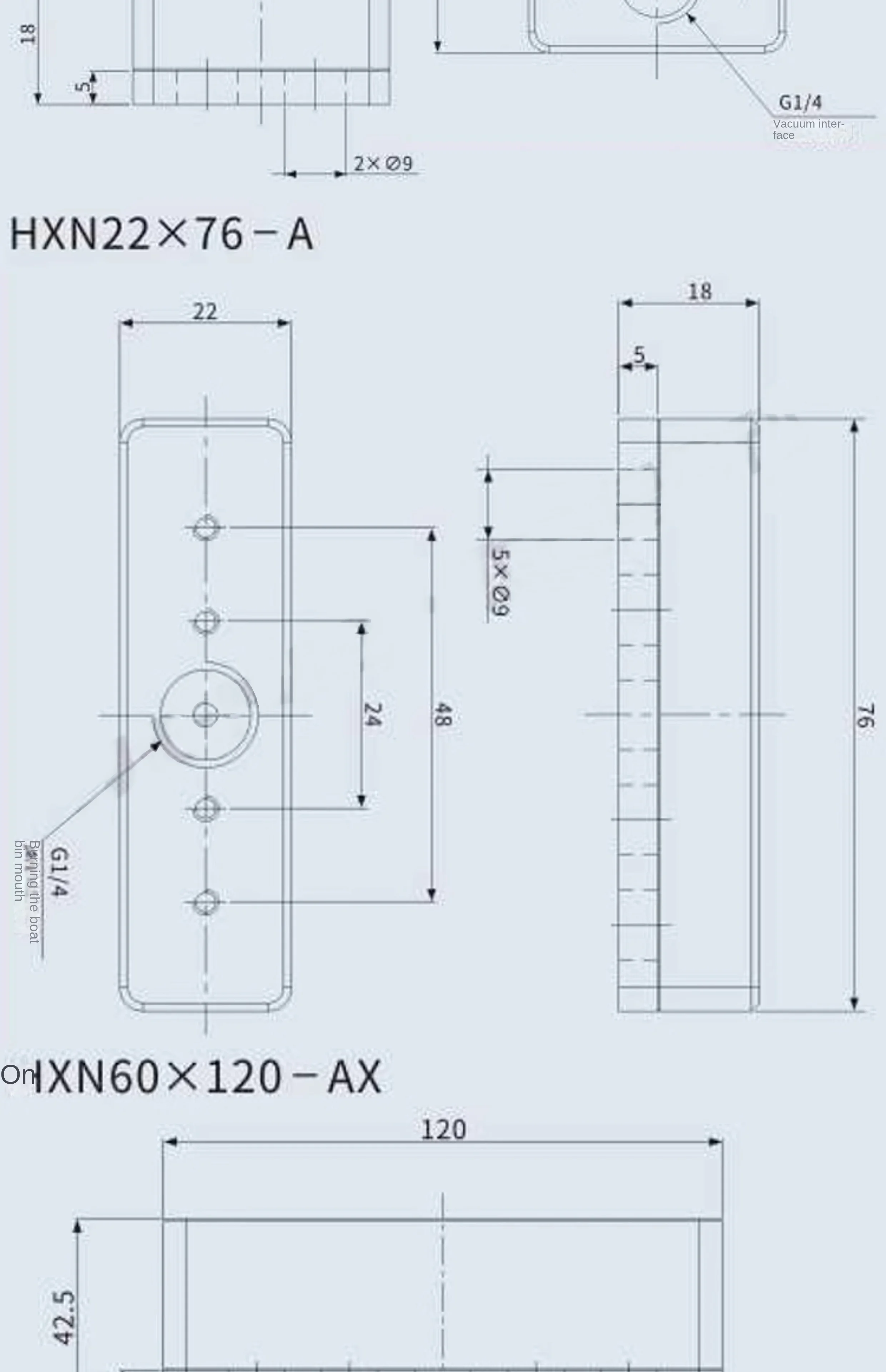

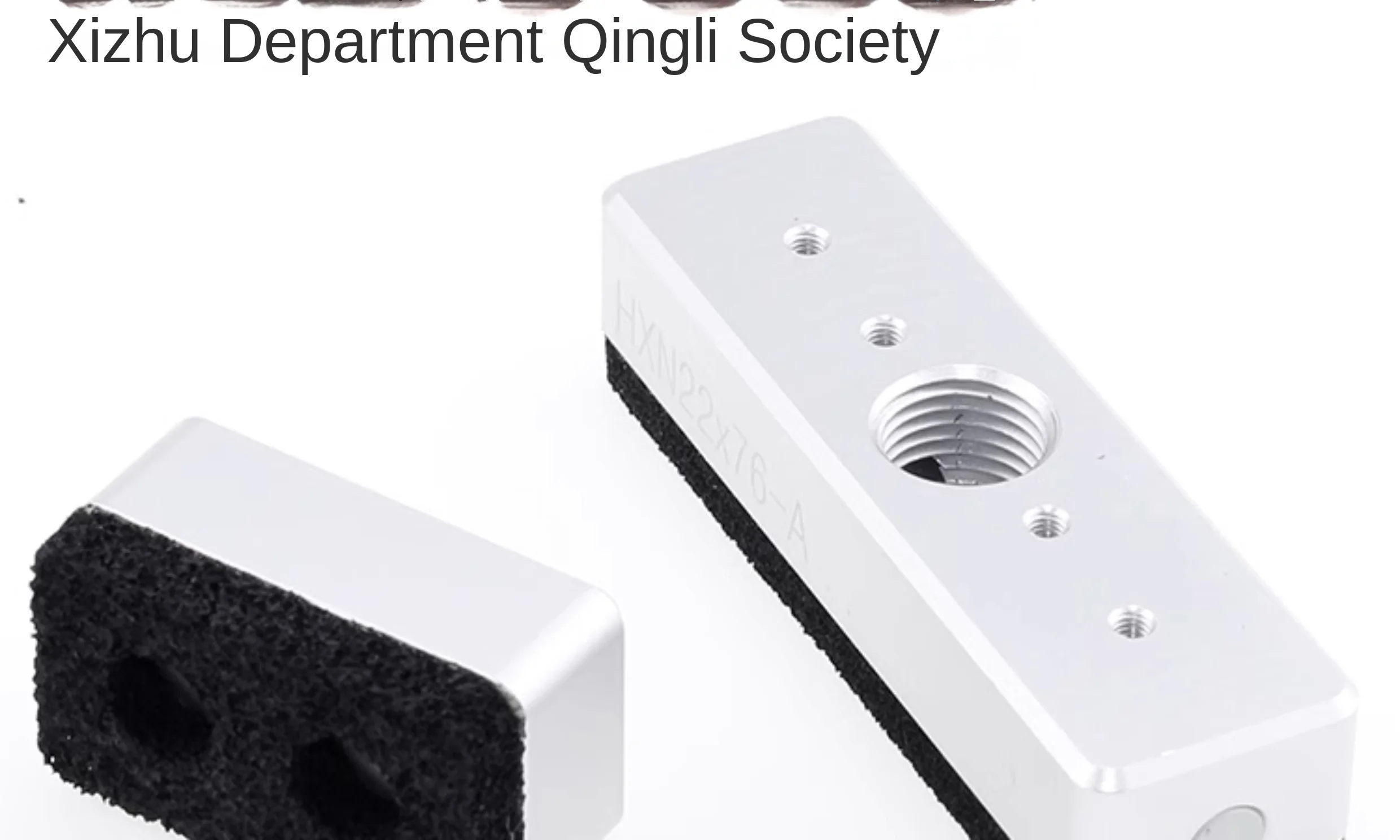

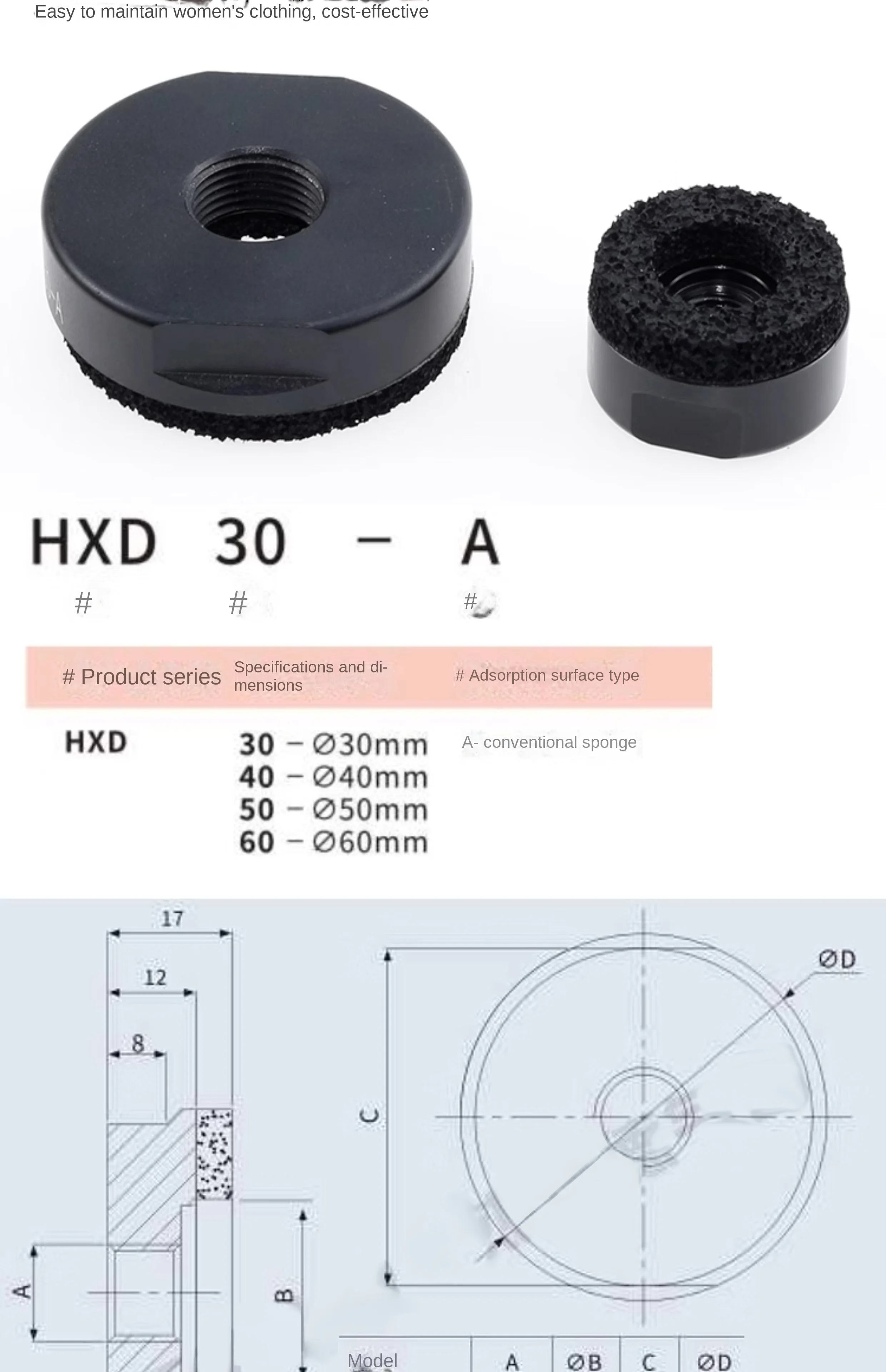

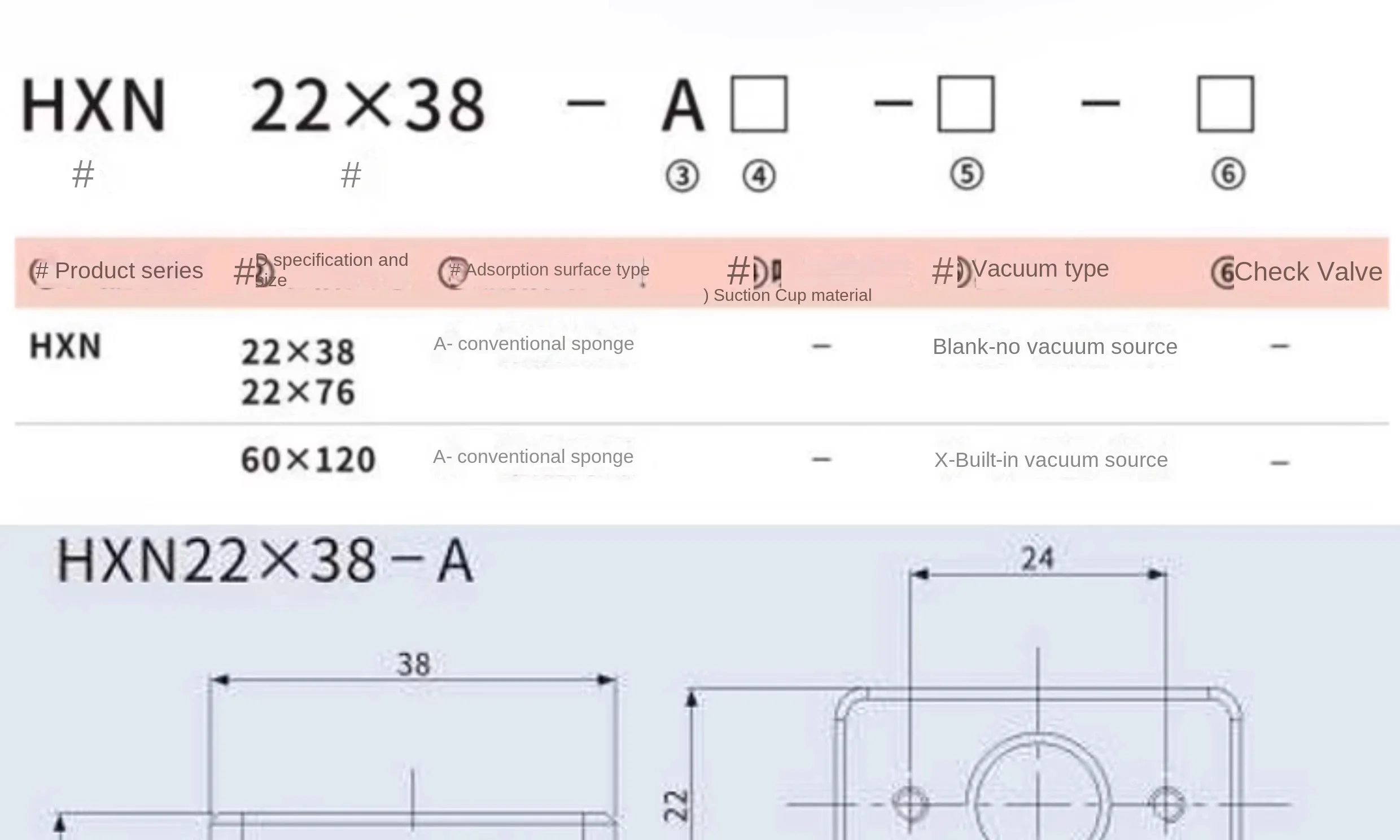

Model Number	HXD30-A,HXD40-A,HXD50-A,HXD60-A,HXN2238-A,HXN2276-A,HXN60*120-A-X
Brand Name
Material	Sponge Rubber
Product name	Vacuum Suction Cup
Color	Black
Application	Industrial
Size	Customized Accepted
Feature	Durable
Usage	Multi-function
Shape	Custom Shape
MOQ	100pcs
Service	OEM .ODM .Customized
