Detail Information
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
Description
Product Features

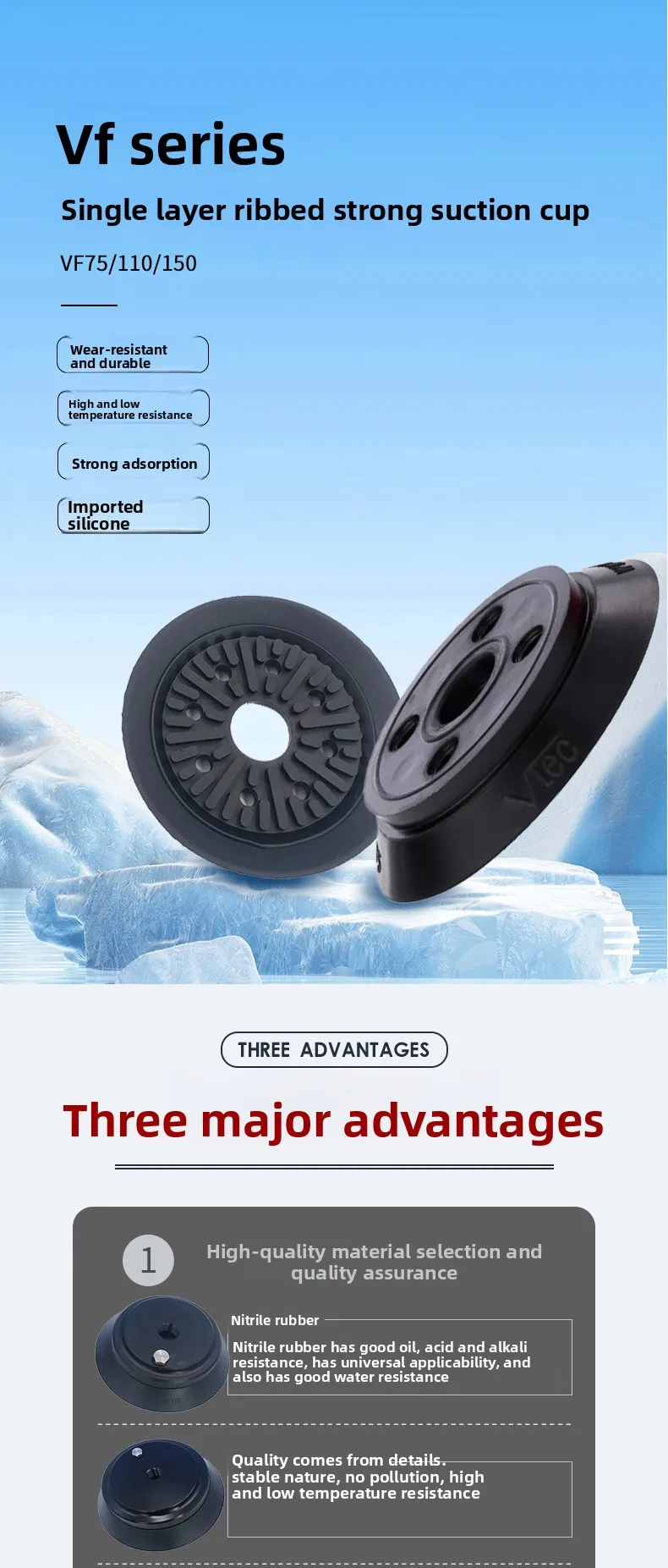

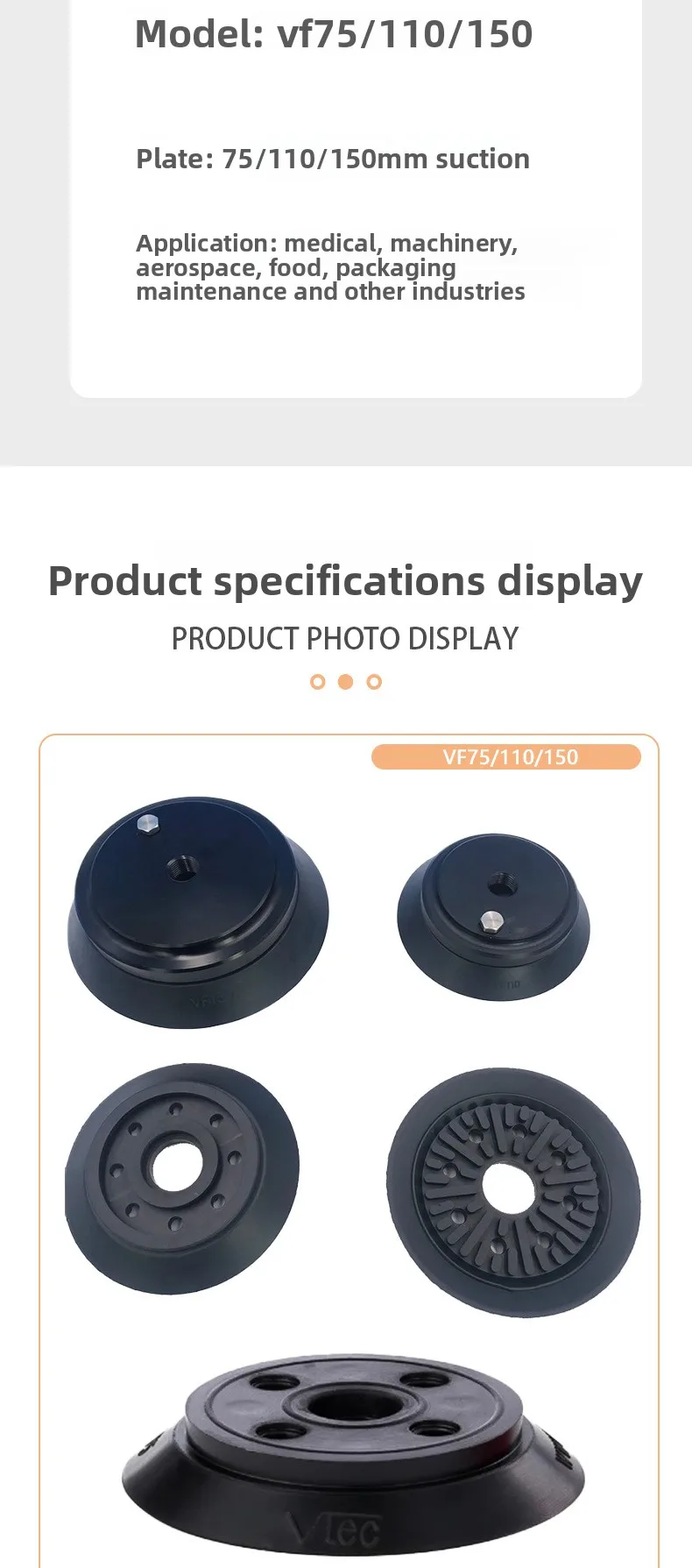

Three complete specifications for graded load matching: VF75 small size for medium and small plates, single cup lifting capacity up to 15kg; VF110 medium size for conventional wood and glass panels, single cup lifting capacity up to 30kg; VF150 large size for heavy large plates, single cup lifting capacity up to 50kg, covering almost all mainstream flat workpiece handling demands.
Integrated full-flat sealing surface design: No bellows buffer structure, 100% full contact with flat workpiece surface, uniform vacuum force dispersion, no local stress concentration, effectively preventing fragile glass plates from cracking and wood boards from indentation during adsorption.

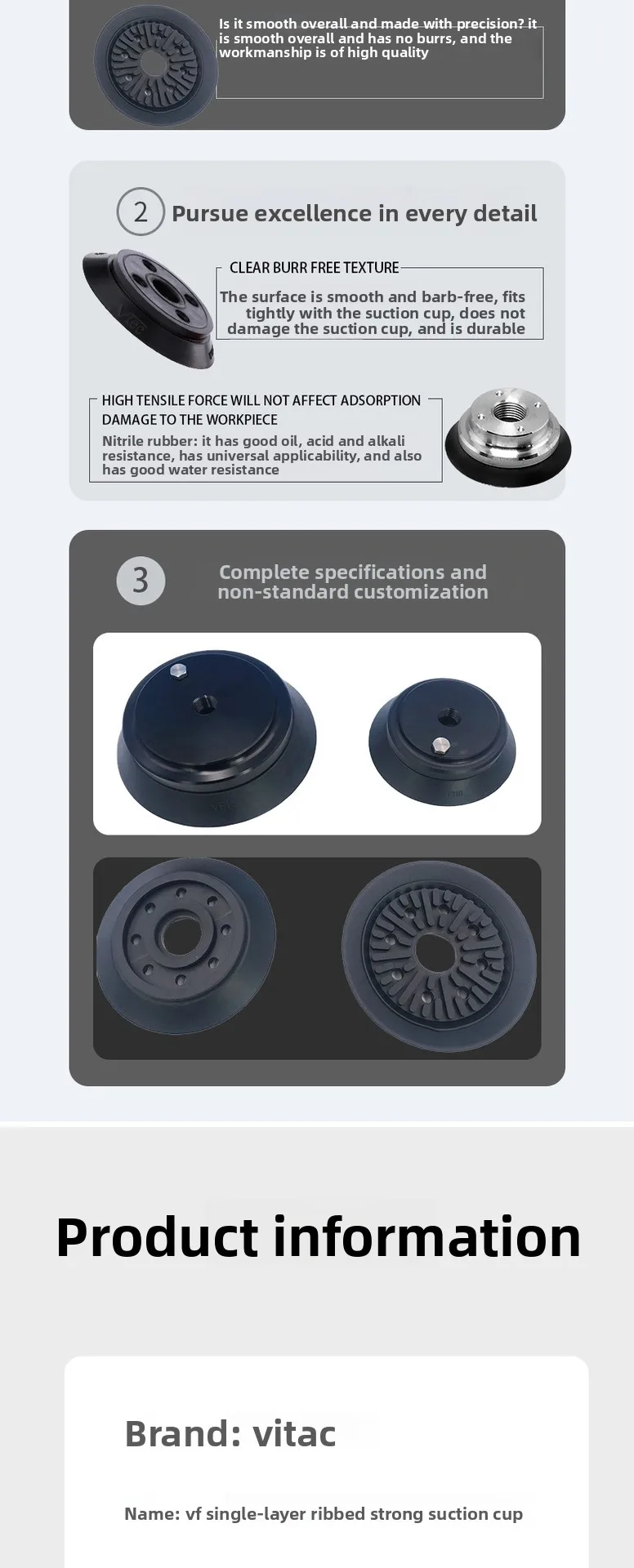

High-performance wear-resistant material options: Standard nitrile rubber (NBR) material with excellent oil resistance, wear resistance and aging resistance, suitable for conventional industrial environments; optional silicone material with high and low temperature resistance (-40℃~+200℃), suitable for special working conditions such as high-temperature processing lines and clean workshops.
Stable heavy-load adsorption performance: Large contact area generates strong vacuum adsorption force, maintains stable gripping under long-term high-speed reciprocating motion, no horizontal shaking or workpiece offset, ensuring positioning accuracy of automated processing.
Non-marking smooth contact surface: Precision polished soft rubber surface without burrs, will not leave scratches, indentations or rubber marks on wood surfaces, glass coatings and acrylic decorative panels, effectively improving finished product yield.
Universal standard interface compatibility: Unified national standard threaded connection interface, no need for special adapter, directly compatible with mainstream industrial manipulators, vacuum generators, pneumatic pipelines and suction cup brackets, convenient for installation and replacement.
Product Advantages
First, three-spec full-coverage graded selection. VF75, VF110 and VF150 three mainstream sizes cover small, medium and large flat workpieces, realizing one-stop model selection for panel processing enterprises, avoiding the trouble of cross-brand procurement. Second, flat structure high stability advantage. Compared with bellows suction cups, the full-flat structure has no vertical telescopic deformation, maintains absolute horizontal stability during high-speed transfer, greatly improving the positioning accuracy of automated punching, cutting and loading processes. Third, durable wear-resistant long service life. High-quality raw rubber formula with anti-aging additive, 3-5 times longer service life than ordinary ordinary suction cups, resistant to long-term friction with wood and glass surfaces without cracking or hardening, reducing replacement frequency and maintenance costs. Fourth, multi-material wide working condition adaptation. Nitrile rubber and silicone dual material options, adaptable to conventional room temperature, high temperature, oil mist, clean room and other different working environments, meeting the diversified needs of woodworking, glass, electronics, furniture and other industries. Fifth, universal interchangeable cost advantage. Standard interface is fully compatible with existing mainstream pneumatic systems, no need to modify the original equipment fixture, direct replacement and use, greatly reducing the transformation cost of automated production lines.
How to Use
First, select the corresponding model according to the workpiece size and weight: use VF75 for small and medium-sized wood boards and glass plates below 15kg; choose VF110 for conventional panels between 15-30kg; adopt VF150 for heavy large plates above 30kg, and configure multiple cups in parallel for ultra-heavy workpieces. Select nitrile rubber material for conventional working conditions, and choose silicone material for high-temperature or food-related scenarios. Second, inspect the flat rubber surface of the suction cup before installation, confirm no cracks, scratches, hardening, aging and debris adhesion, ensure the sealing surface is flat and intact to avoid vacuum leakage. Third, align the standard threaded interface of the VF suction cup with the manipulator bracket or vacuum connector, screw and lock firmly, apply appropriate sealant to the thread if necessary to prevent air leakage caused by high-frequency vibration. Fourth, connect the vacuum pipeline and conduct air tightness test, adjust the vacuum negative pressure to the recommended range of -60kPa~-80kPa, check that there is no air leakage at the interface and the sealing surface is evenly fitted. Fifth, carry out trial adsorption operation on the target wood board or glass plate, verify that the workpiece is firmly adsorbed without offset, shaking or local warping, confirm that it can be lifted stably at the set moving speed without falling. Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly wipe the flat sealing surface with clean soft cloth to remove wood chips, glass dust and oil stains, check the rubber hardness and wear degree every month, and replace the suction cup in time if obvious hardening, cracking or suction weakening occurs.
About Product
Highlight
Industrial Strength Suction Cup: Securely holds large wood boards and glass plates.
Versatile Size Options: Available in 75mm, 110mm, and 150mm sizes.
High-Quality Rubber: Ensures durability and long-lasting performance.
Multipurpose Manipulator: Ideal for various industrial applications such as manufacturing and assembly.
Made in China: Ensures competitive pricing and reliability.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
Integrated full-flat sealing surface design: No bellows buffer structure, 100% full contact with flat workpiece surface, uniform vacuum force dispersion, no local stress concentration, effectively preventing fragile glass plates from cracking and wood boards from indentation during adsorption.
High-performance wear-resistant material options: Standard nitrile rubber (NBR) material with excellent oil resistance, wear resistance and aging resistance, suitable for conventional industrial environments; optional silicone material with high and low temperature resistance (-40℃~+200℃), suitable for special working conditions such as high-temperature processing lines and clean workshops.
Stable heavy-load adsorption performance: Large contact area generates strong vacuum adsorption force, maintains stable gripping under long-term high-speed reciprocating motion, no horizontal shaking or workpiece offset, ensuring positioning accuracy of automated processing.
Non-marking smooth contact surface: Precision polished soft rubber surface without burrs, will not leave scratches, indentations or rubber marks on wood surfaces, glass coatings and acrylic decorative panels, effectively improving finished product yield.
Universal standard interface compatibility: Unified national standard threaded connection interface, no need for special adapter, directly compatible with mainstream industrial manipulators, vacuum generators, pneumatic pipelines and suction cup brackets, convenient for installation and replacement.
Product Advantages
First, three-spec full-coverage graded selection. VF75, VF110 and VF150 three mainstream sizes cover small, medium and large flat workpieces, realizing one-stop model selection for panel processing enterprises, avoiding the trouble of cross-brand procurement.
Second, flat structure high stability advantage. Compared with bellows suction cups, the full-flat structure has no vertical telescopic deformation, maintains absolute horizontal stability during high-speed transfer, greatly improving the positioning accuracy of automated punching, cutting and loading processes.
Third, durable wear-resistant long service life. High-quality raw rubber formula with anti-aging additive, 3-5 times longer service life than ordinary ordinary suction cups, resistant to long-term friction with wood and glass surfaces without cracking or hardening, reducing replacement frequency and maintenance costs.
Fourth, multi-material wide working condition adaptation. Nitrile rubber and silicone dual material options, adaptable to conventional room temperature, high temperature, oil mist, clean room and other different working environments, meeting the diversified needs of woodworking, glass, electronics, furniture and other industries.
Fifth, universal interchangeable cost advantage. Standard interface is fully compatible with existing mainstream pneumatic systems, no need to modify the original equipment fixture, direct replacement and use, greatly reducing the transformation cost of automated production lines.
How to Use
First, select the corresponding model according to the workpiece size and weight: use VF75 for small and medium-sized wood boards and glass plates below 15kg; choose VF110 for conventional panels between 15-30kg; adopt VF150 for heavy large plates above 30kg, and configure multiple cups in parallel for ultra-heavy workpieces. Select nitrile rubber material for conventional working conditions, and choose silicone material for high-temperature or food-related scenarios.
Second, inspect the flat rubber surface of the suction cup before installation, confirm no cracks, scratches, hardening, aging and debris adhesion, ensure the sealing surface is flat and intact to avoid vacuum leakage.
Third, align the standard threaded interface of the VF suction cup with the manipulator bracket or vacuum connector, screw and lock firmly, apply appropriate sealant to the thread if necessary to prevent air leakage caused by high-frequency vibration.
Fourth, connect the vacuum pipeline and conduct air tightness test, adjust the vacuum negative pressure to the recommended range of -60kPa~-80kPa, check that there is no air leakage at the interface and the sealing surface is evenly fitted.
Fifth, carry out trial adsorption operation on the target wood board or glass plate, verify that the workpiece is firmly adsorbed without offset, shaking or local warping, confirm that it can be lifted stably at the set moving speed without falling.
Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly wipe the flat sealing surface with clean soft cloth to remove wood chips, glass dust and oil stains, check the rubber hardness and wear degree every month, and replace the suction cup in time if obvious hardening, cracking or suction weakening occurs.
Product Features
Three complete specifications for graded load matching: VF75 small size for medium and small plates, single cup lifting capacity up to 15kg; VF110 medium size for conventional wood and glass panels, single cup lifting capacity up to 30kg; VF150 large size for heavy large plates, single cup lifting capacity up to 50kg, covering almost all mainstream flat workpiece handling demands.
Integrated full-flat sealing surface design: No bellows buffer structure, 100% full contact with flat workpiece surface, uniform vacuum force dispersion, no local stress concentration, effectively preventing fragile glass plates from cracking and wood boards from indentation during adsorption.
High-performance wear-resistant material options: Standard nitrile rubber (NBR) material with excellent oil resistance, wear resistance and aging resistance, suitable for conventional industrial environments; optional silicone material with high and low temperature resistance (-40℃~+200℃), suitable for special working conditions such as high-temperature processing lines and clean workshops.
Stable heavy-load adsorption performance: Large contact area generates strong vacuum adsorption force, maintains stable gripping under long-term high-speed reciprocating motion, no horizontal shaking or workpiece offset, ensuring positioning accuracy of automated processing.
Non-marking smooth contact surface: Precision polished soft rubber surface without burrs, will not leave scratches, indentations or rubber marks on wood surfaces, glass coatings and acrylic decorative panels, effectively improving finished product yield.
Universal standard interface compatibility: Unified national standard threaded connection interface, no need for special adapter, directly compatible with mainstream industrial manipulators, vacuum generators, pneumatic pipelines and suction cup brackets, convenient for installation and replacement.
Product Advantages
First, three-spec full-coverage graded selection. VF75, VF110 and VF150 three mainstream sizes cover small, medium and large flat workpieces, realizing one-stop model selection for panel processing enterprises, avoiding the trouble of cross-brand procurement.
Second, flat structure high stability advantage. Compared with bellows suction cups, the full-flat structure has no vertical telescopic deformation, maintains absolute horizontal stability during high-speed transfer, greatly improving the positioning accuracy of automated punching, cutting and loading processes.
Third, durable wear-resistant long service life. High-quality raw rubber formula with anti-aging additive, 3-5 times longer service life than ordinary ordinary suction cups, resistant to long-term friction with wood and glass surfaces without cracking or hardening, reducing replacement frequency and maintenance costs.
Fourth, multi-material wide working condition adaptation. Nitrile rubber and silicone dual material options, adaptable to conventional room temperature, high temperature, oil mist, clean room and other different working environments, meeting the diversified needs of woodworking, glass, electronics, furniture and other industries.
Fifth, universal interchangeable cost advantage. Standard interface is fully compatible with existing mainstream pneumatic systems, no need to modify the original equipment fixture, direct replacement and use, greatly reducing the transformation cost of automated production lines.
How to Use
First, select the corresponding model according to the workpiece size and weight: use VF75 for small and medium-sized wood boards and glass plates below 15kg; choose VF110 for conventional panels between 15-30kg; adopt VF150 for heavy large plates above 30kg, and configure multiple cups in parallel for ultra-heavy workpieces. Select nitrile rubber material for conventional working conditions, and choose silicone material for high-temperature or food-related scenarios.
Second, inspect the flat rubber surface of the suction cup before installation, confirm no cracks, scratches, hardening, aging and debris adhesion, ensure the sealing surface is flat and intact to avoid vacuum leakage.
Third, align the standard threaded interface of the VF suction cup with the manipulator bracket or vacuum connector, screw and lock firmly, apply appropriate sealant to the thread if necessary to prevent air leakage caused by high-frequency vibration.
Fourth, connect the vacuum pipeline and conduct air tightness test, adjust the vacuum negative pressure to the recommended range of -60kPa~-80kPa, check that there is no air leakage at the interface and the sealing surface is evenly fitted.
Fifth, carry out trial adsorption operation on the target wood board or glass plate, verify that the workpiece is firmly adsorbed without offset, shaking or local warping, confirm that it can be lifted stably at the set moving speed without falling.
Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly wipe the flat sealing surface with clean soft cloth to remove wood chips, glass dust and oil stains, check the rubber hardness and wear degree every month, and replace the suction cup in time if obvious hardening, cracking or suction weakening occurs.
Product Features
Three complete specifications for graded load matching: VF75 small size for medium and small plates, single cup lifting capacity up to 15kg; VF110 medium size for conventional wood and glass panels, single cup lifting capacity up to 30kg; VF150 large size for heavy large plates, single cup lifting capacity up to 50kg, covering almost all mainstream flat workpiece handling demands.
Integrated full-flat sealing surface design: No bellows buffer structure, 100% full contact with flat workpiece surface, uniform vacuum force dispersion, no local stress concentration, effectively preventing fragile glass plates from cracking and wood boards from indentation during adsorption.
High-performance wear-resistant material options: Standard nitrile rubber (NBR) material with excellent oil resistance, wear resistance and aging resistance, suitable for conventional industrial environments; optional silicone material with high and low temperature resistance (-40℃~+200℃), suitable for special working conditions such as high-temperature processing lines and clean workshops.
Stable heavy-load adsorption performance: Large contact area generates strong vacuum adsorption force, maintains stable gripping under long-term high-speed reciprocating motion, no horizontal shaking or workpiece offset, ensuring positioning accuracy of automated processing.
Non-marking smooth contact surface: Precision polished soft rubber surface without burrs, will not leave scratches, indentations or rubber marks on wood surfaces, glass coatings and acrylic decorative panels, effectively improving finished product yield.
Universal standard interface compatibility: Unified national standard threaded connection interface, no need for special adapter, directly compatible with mainstream industrial manipulators, vacuum generators, pneumatic pipelines and suction cup brackets, convenient for installation and replacement.
Product Advantages
First, three-spec full-coverage graded selection. VF75, VF110 and VF150 three mainstream sizes cover small, medium and large flat workpieces, realizing one-stop model selection for panel processing enterprises, avoiding the trouble of cross-brand procurement.
Second, flat structure high stability advantage. Compared with bellows suction cups, the full-flat structure has no vertical telescopic deformation, maintains absolute horizontal stability during high-speed transfer, greatly improving the positioning accuracy of automated punching, cutting and loading processes.
Third, durable wear-resistant long service life. High-quality raw rubber formula with anti-aging additive, 3-5 times longer service life than ordinary ordinary suction cups, resistant to long-term friction with wood and glass surfaces without cracking or hardening, reducing replacement frequency and maintenance costs.
Fourth, multi-material wide working condition adaptation. Nitrile rubber and silicone dual material options, adaptable to conventional room temperature, high temperature, oil mist, clean room and other different working environments, meeting the diversified needs of woodworking, glass, electronics, furniture and other industries.
Fifth, universal interchangeable cost advantage. Standard interface is fully compatible with existing mainstream pneumatic systems, no need to modify the original equipment fixture, direct replacement and use, greatly reducing the transformation cost of automated production lines.
How to Use
First, select the corresponding model according to the workpiece size and weight: use VF75 for small and medium-sized wood boards and glass plates below 15kg; choose VF110 for conventional panels between 15-30kg; adopt VF150 for heavy large plates above 30kg, and configure multiple cups in parallel for ultra-heavy workpieces. Select nitrile rubber material for conventional working conditions, and choose silicone material for high-temperature or food-related scenarios.
Second, inspect the flat rubber surface of the suction cup before installation, confirm no cracks, scratches, hardening, aging and debris adhesion, ensure the sealing surface is flat and intact to avoid vacuum leakage.
Third, align the standard threaded interface of the VF suction cup with the manipulator bracket or vacuum connector, screw and lock firmly, apply appropriate sealant to the thread if necessary to prevent air leakage caused by high-frequency vibration.
Fourth, connect the vacuum pipeline and conduct air tightness test, adjust the vacuum negative pressure to the recommended range of -60kPa~-80kPa, check that there is no air leakage at the interface and the sealing surface is evenly fitted.
Fifth, carry out trial adsorption operation on the target wood board or glass plate, verify that the workpiece is firmly adsorbed without offset, shaking or local warping, confirm that it can be lifted stably at the set moving speed without falling.
Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly wipe the flat sealing surface with clean soft cloth to remove wood chips, glass dust and oil stains, check the rubber hardness and wear degree every month, and replace the suction cup in time if obvious hardening, cracking or suction weakening occurs.
