Product Features

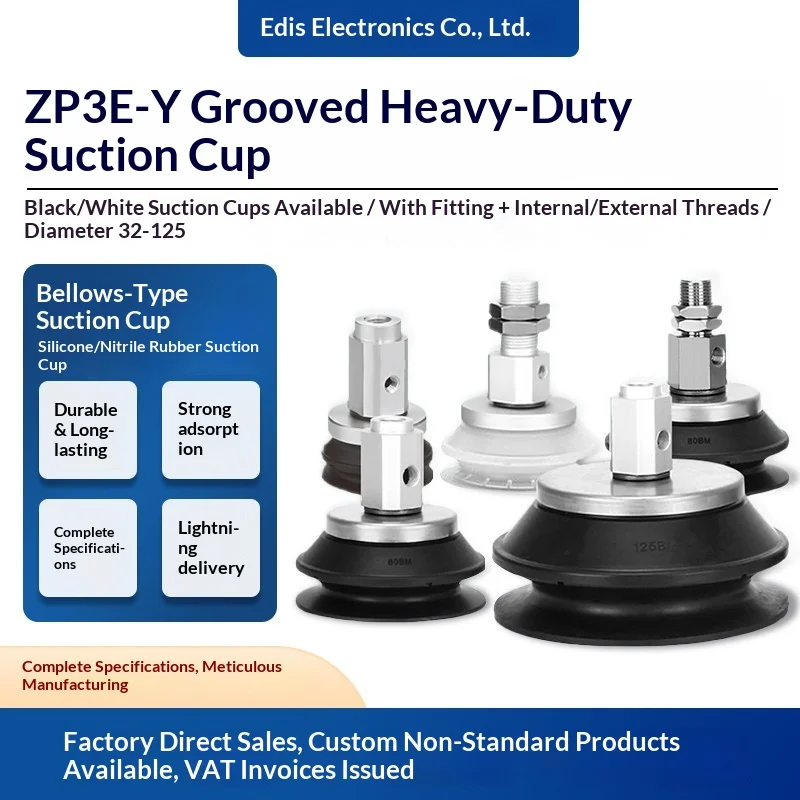

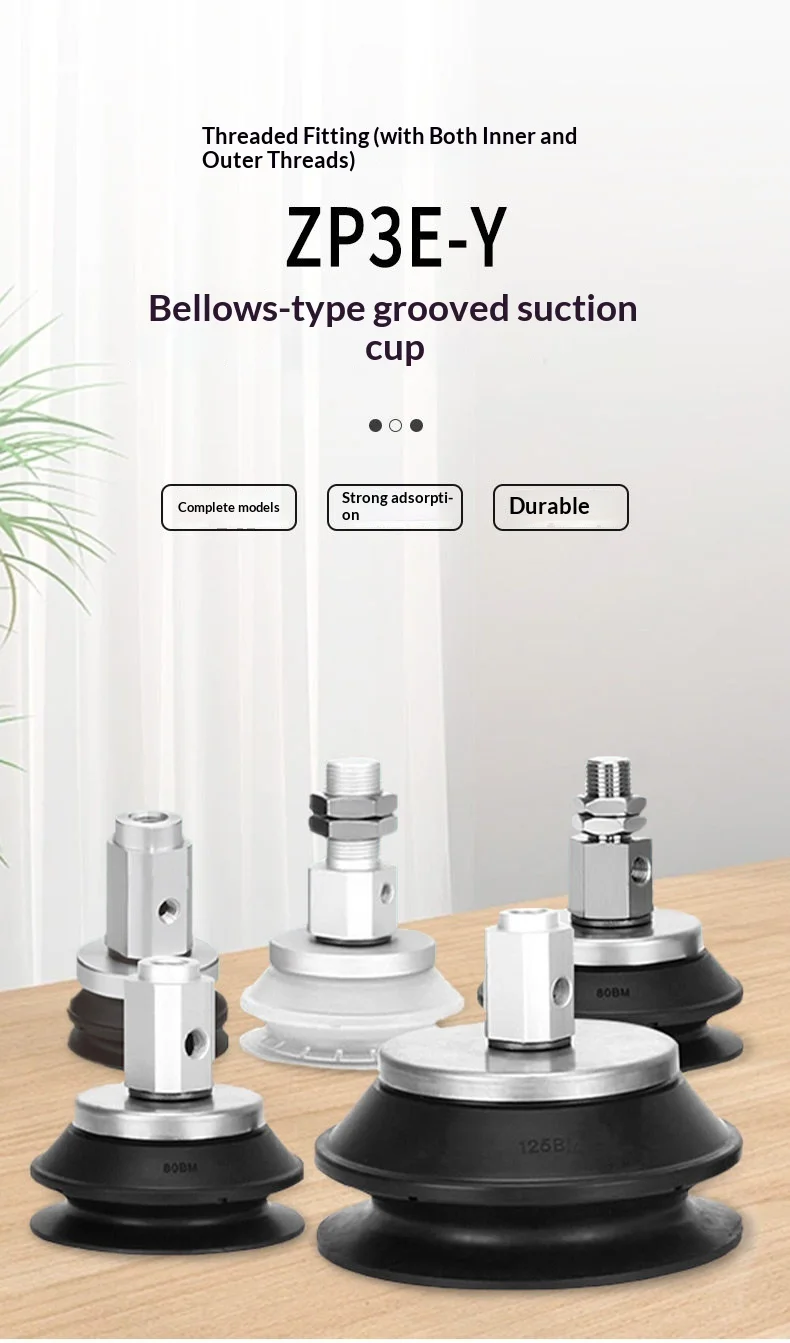

The SMC ZP3E-Y BMN series is a professional heavy-duty vacuum suction cup designed for industrial robotic arm automation systems. It is available in black and white rubber versions and covers a complete size range from Y32 to Y125, meeting diverse load requirements for different automated handling scenarios. Manufactured with high-strength industrial rubber materials, the suction cup features excellent overall toughness, wear resistance and aging resistance, adapting to long-term high-frequency cyclic operation in harsh factory environments. Equipped with standard AL14 and B8 universal interfaces, it ensures precise assembly, tight connection and strong compatibility with original SMC pneumatic equipment and most mainstream manipulator vacuum systems. The optimized large-area suction surface structure delivers uniform vacuum pressure, while the reinforced cup body effectively prevents deformation under heavy load. With stable air tightness and exquisite integrated molding craftsmanship, this series of suction cups maintains consistent adsorption performance and serves as a standard universal accessory for industrial automated production lines.
Product Advantages

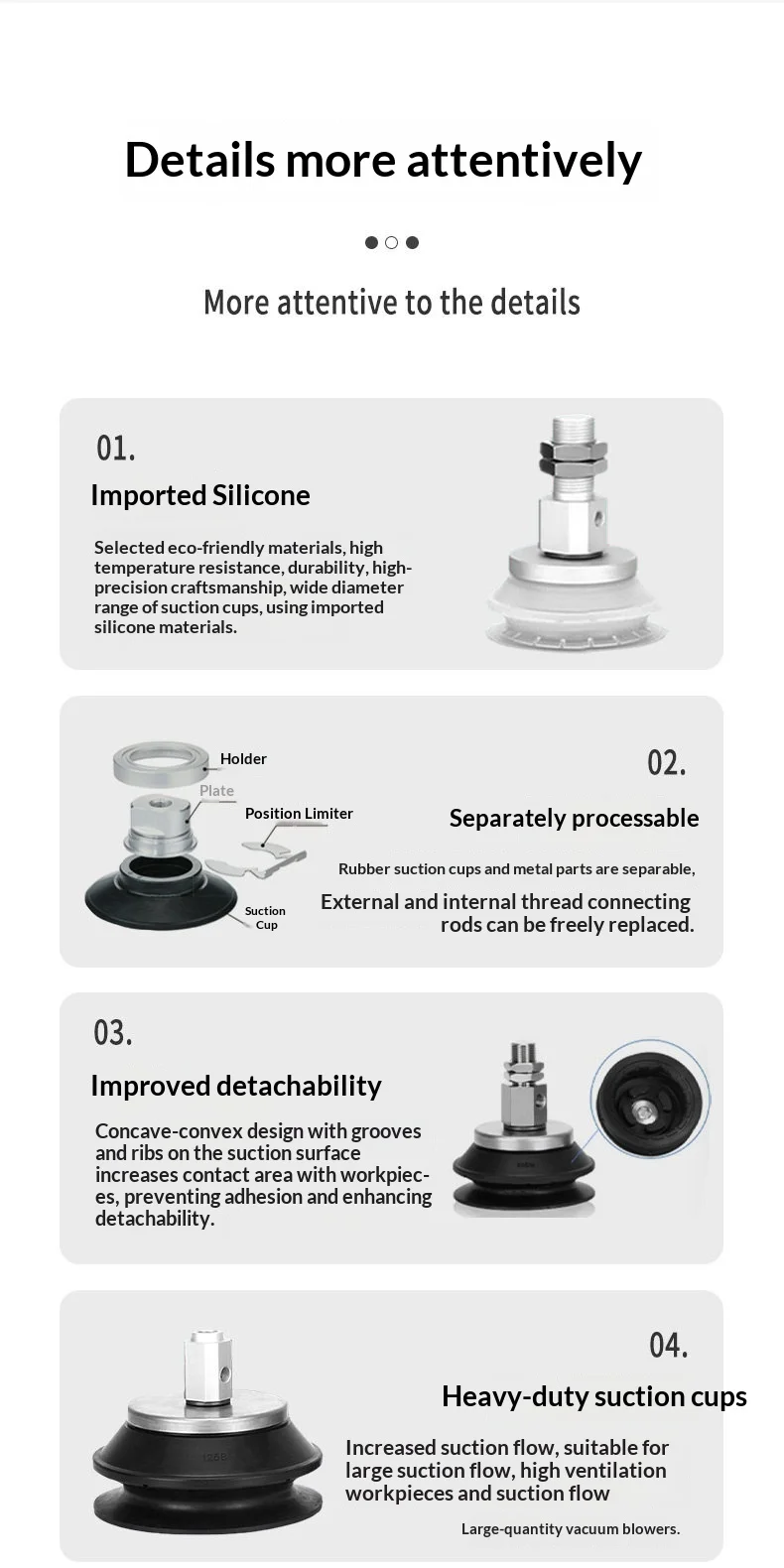

This ZP3E-Y heavy-duty suction cup has outstanding performance advantages over ordinary vacuum suction nozzles. First, it features superior heavy-load bearing capacity. The reinforced structural design provides strong and stable suction force, perfectly suitable for grabbing and lifting medium and large heavy workpieces that ordinary suction cups cannot bear. Second, it achieves zero air leakage and ultra-stable operation. The standard interface and precise fitting structure avoid air leakage, effectively preventing workpiece slipping and falling during high-speed movement and positioning. Third, it has excellent durability and environmental adaptability. The premium rubber material resists wear, oxidation and industrial oil pollution, greatly extending service life and reducing frequent replacement costs. Fourth, full-size coverage and strong versatility realize one-stop matching for light, medium and heavy handling tasks, improving equipment compatibility. In addition, it supports quick installation and replacement, effectively reducing equipment downtime and improving overall production efficiency.
How to Use

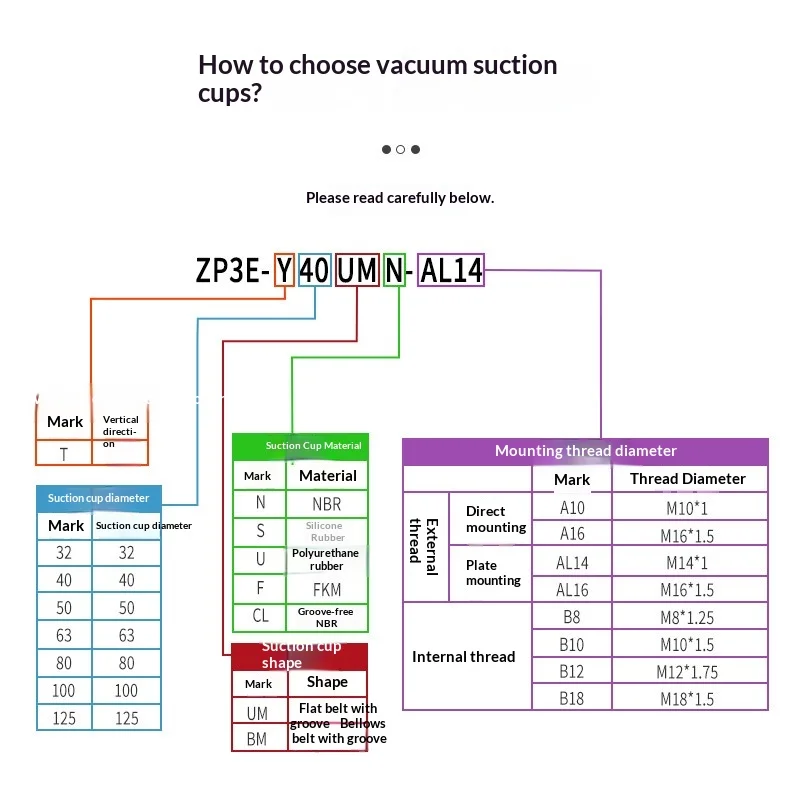

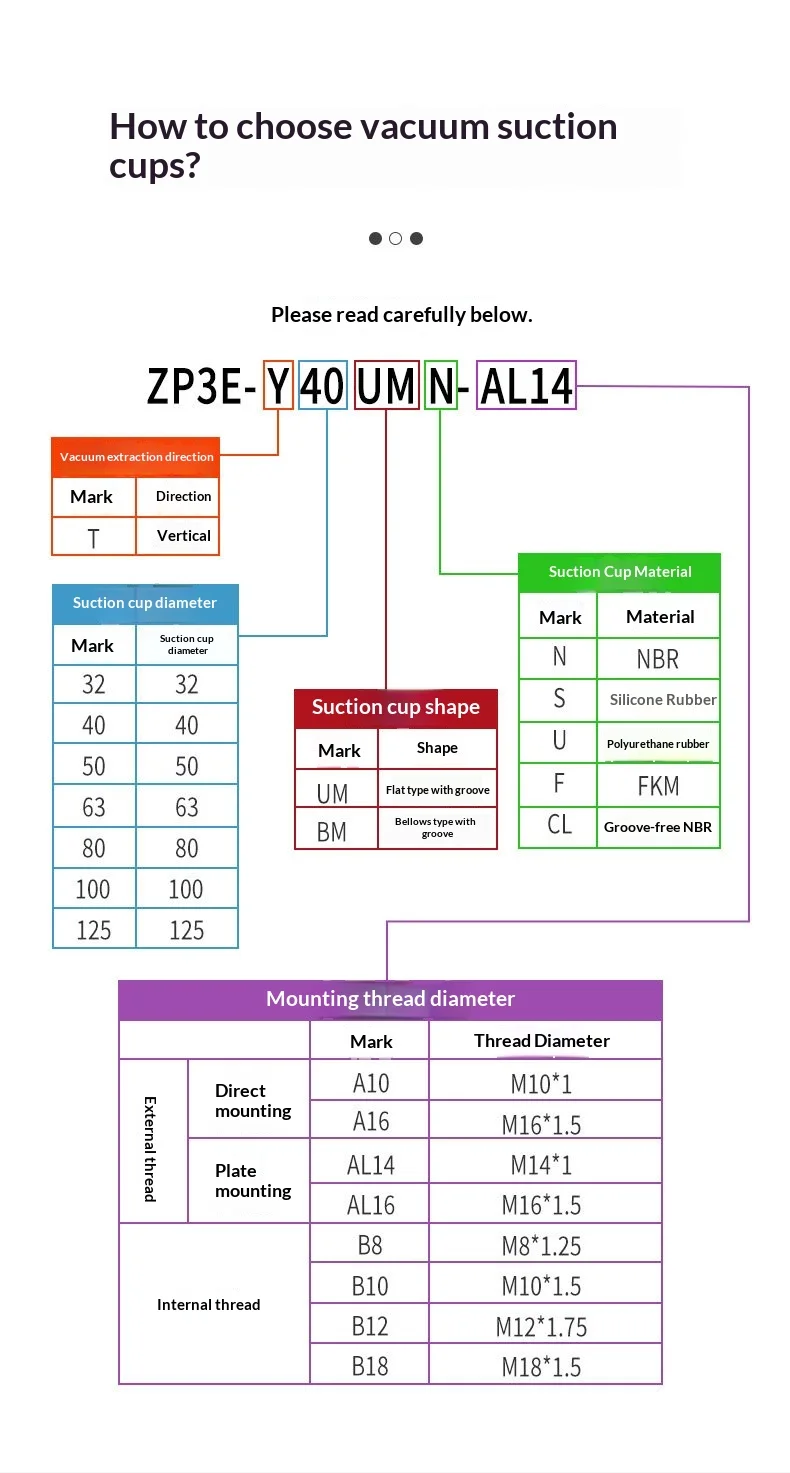

First, conduct a pre-use inspection to check the suction cup surface for cracks, wear, aging and residual impurities, and confirm that the internal air passage is unobstructed and the interface is intact. Second, select the appropriate specification (Y32/Y40/Y50/Y63/Y80/Y100/Y125) according to the actual weight and size of the workpiece, and choose AL14 or B8 interface for matching installation. Third, firmly install the suction cup on the robotic arm vacuum connector and fasten the interface tightly to avoid loose connection and air leakage during operation. Fourth, thoroughly clean the surface of the target workpiece to remove dust, oil stains and debris, ensuring a flat, clean and dry adsorption plane for optimal vacuum sealing. Fifth, turn on the pneumatic vacuum system, adjust the air pressure to the standard working range, and perform a no-load test run to confirm stable adsorption and flexible release. Sixth, in formal automated operation, align the suction cup with the center of the workpiece surface, wait for stable vacuum adsorption, then complete lifting, handling and positioning work. Finally, cut off the air source to release the workpiece after daily operation, regularly clean the suction cup surface and gap dust, and replace the suction cup in time if deformation, severe wear or poor sealing occurs to ensure long-term stable operation of automated equipment.
About Product
Highlight
Heavy-Duty Design: Suitable for industrial applications requiring robust suction cups.

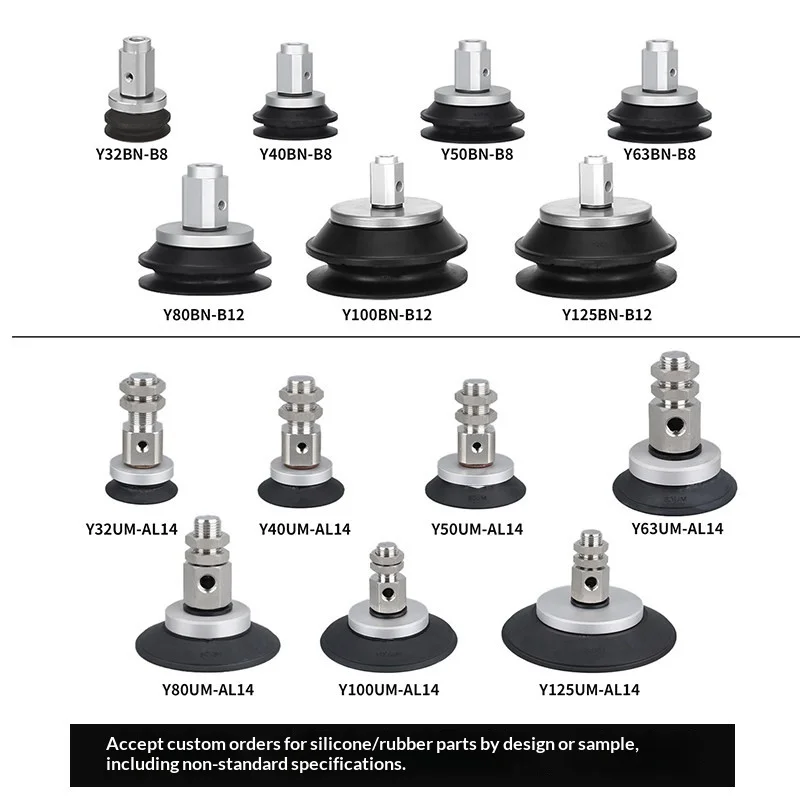

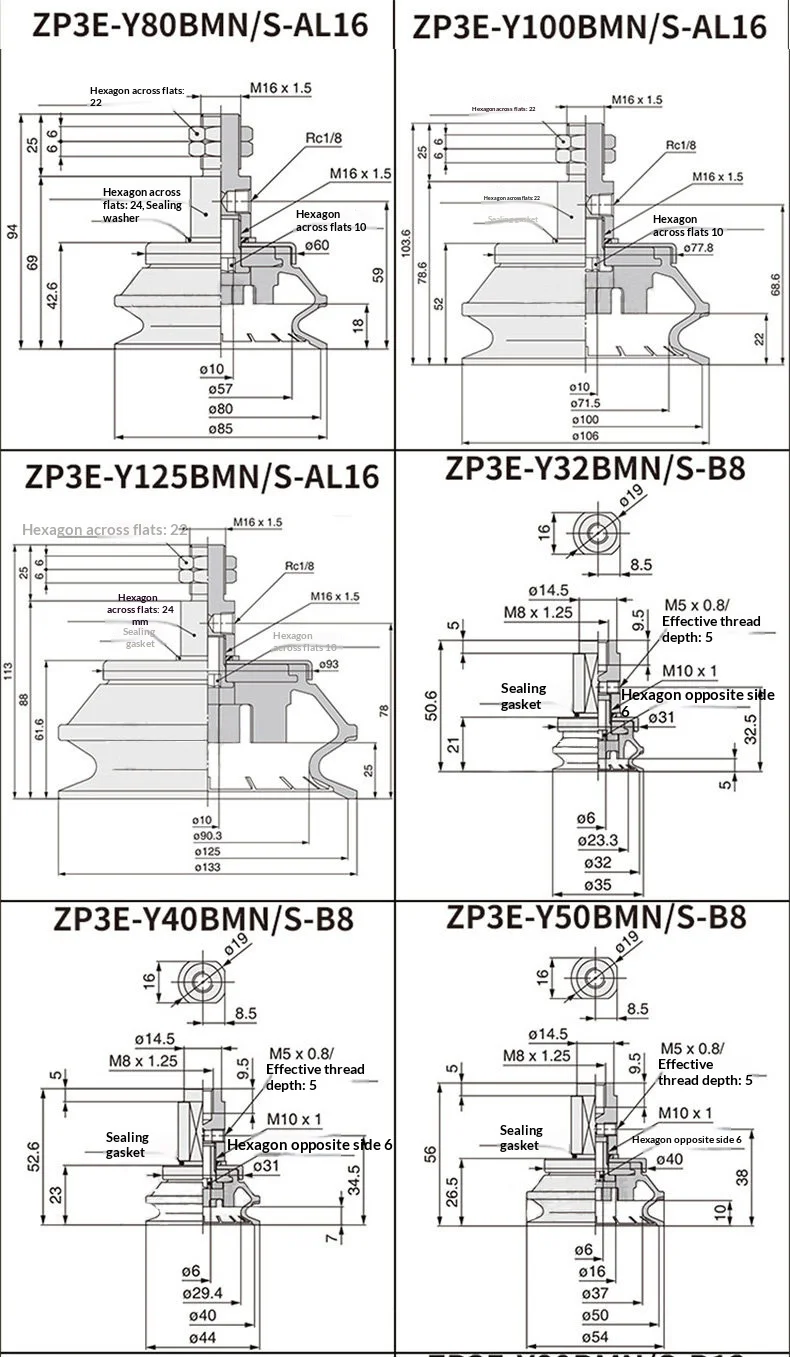

Multiple Sizes Available: Choose from 32/40/50/63/80/100/125mm for versatile use.

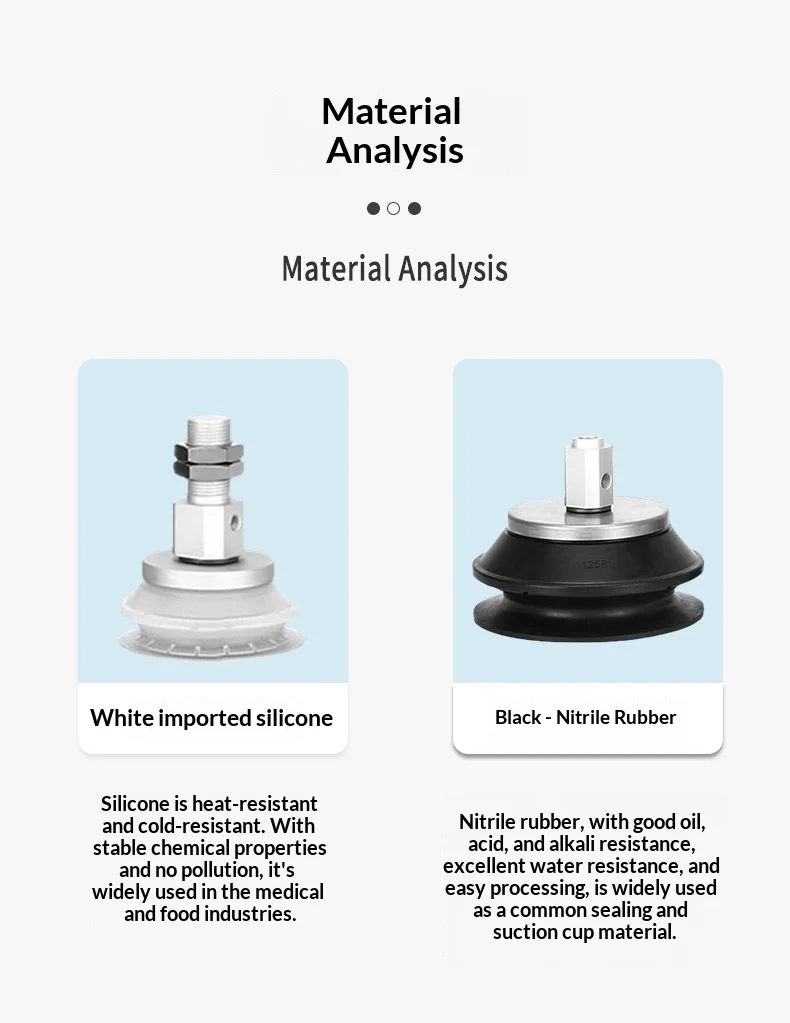

Black and White Options: Select between black and white for customization needs.
Suction Cup Material: Rubber product ensures strong adhesion and durability.
Industrial Strength: Ideal for heavy-duty tasks and high-stress environments.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
