Product Features

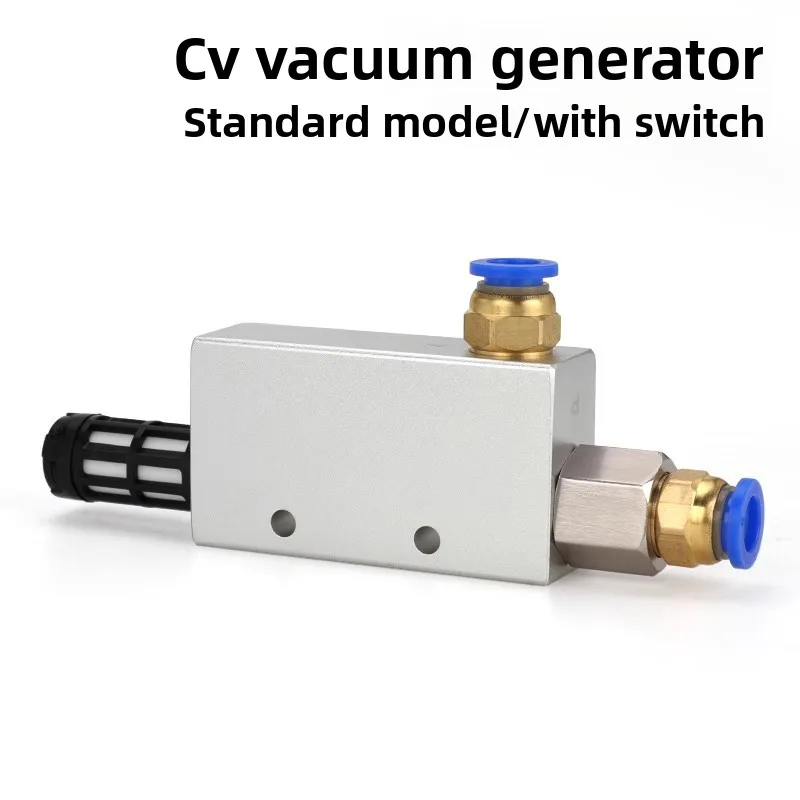

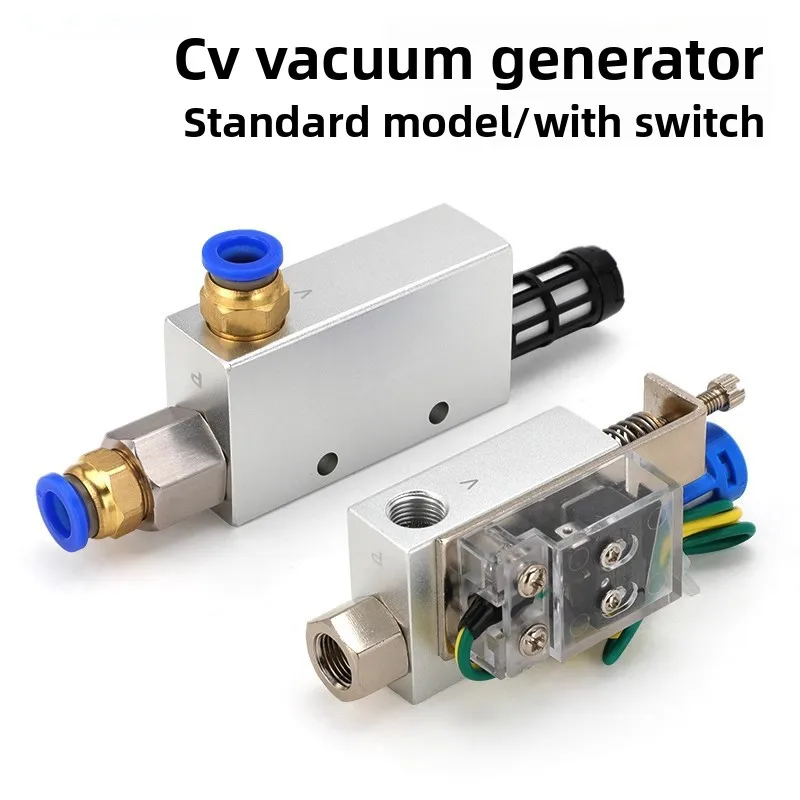

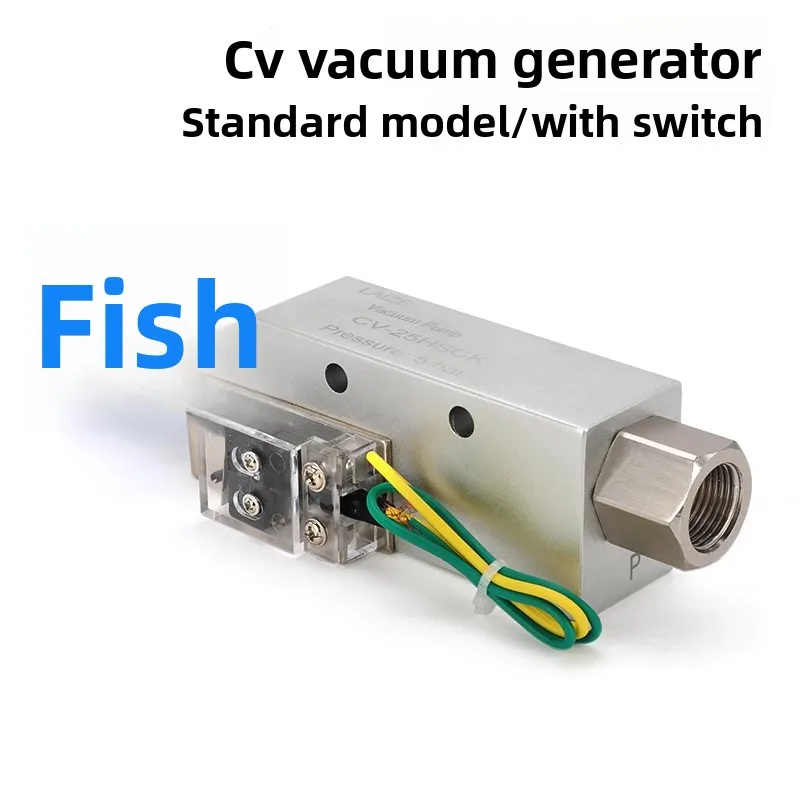

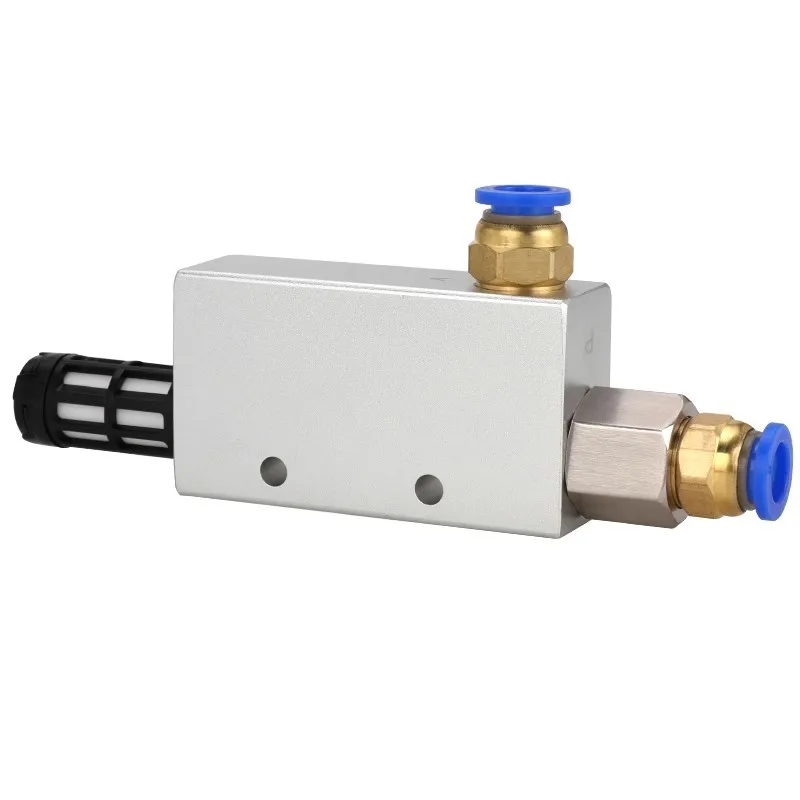

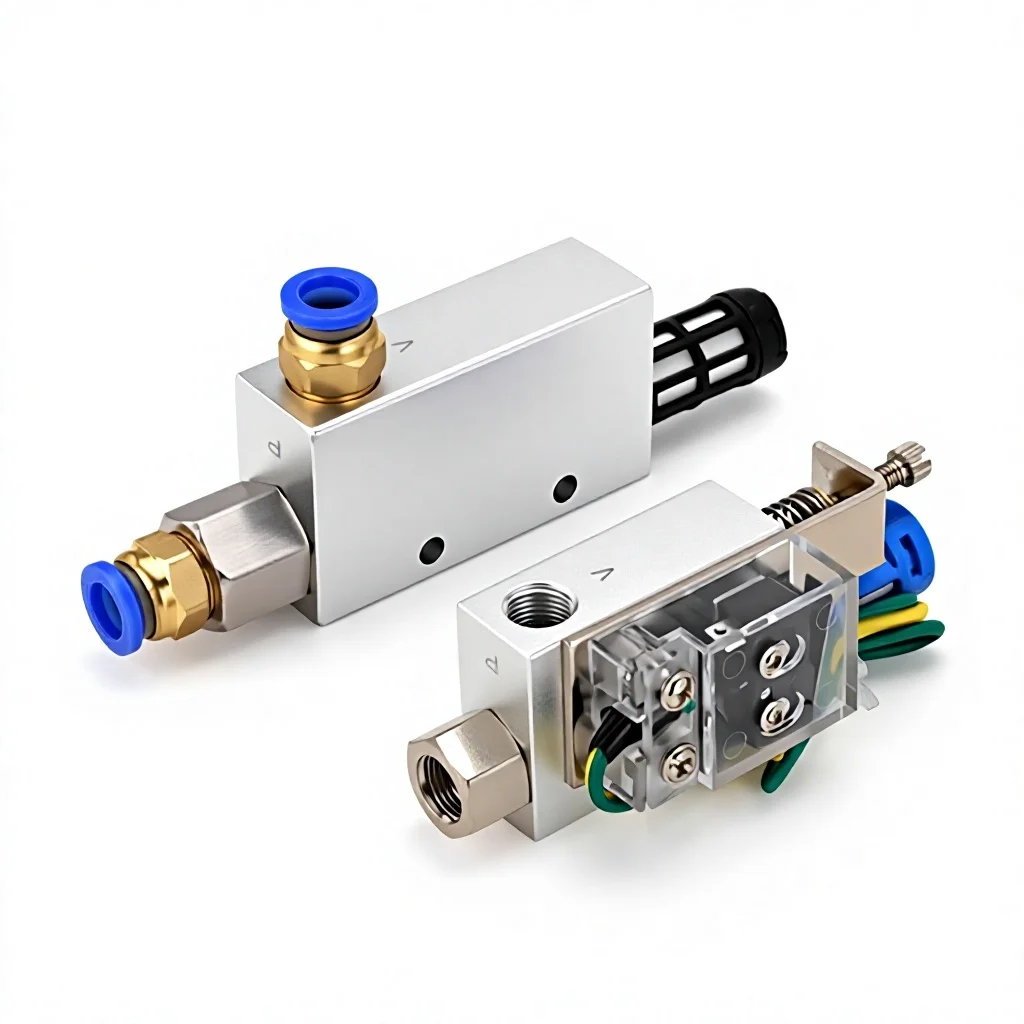

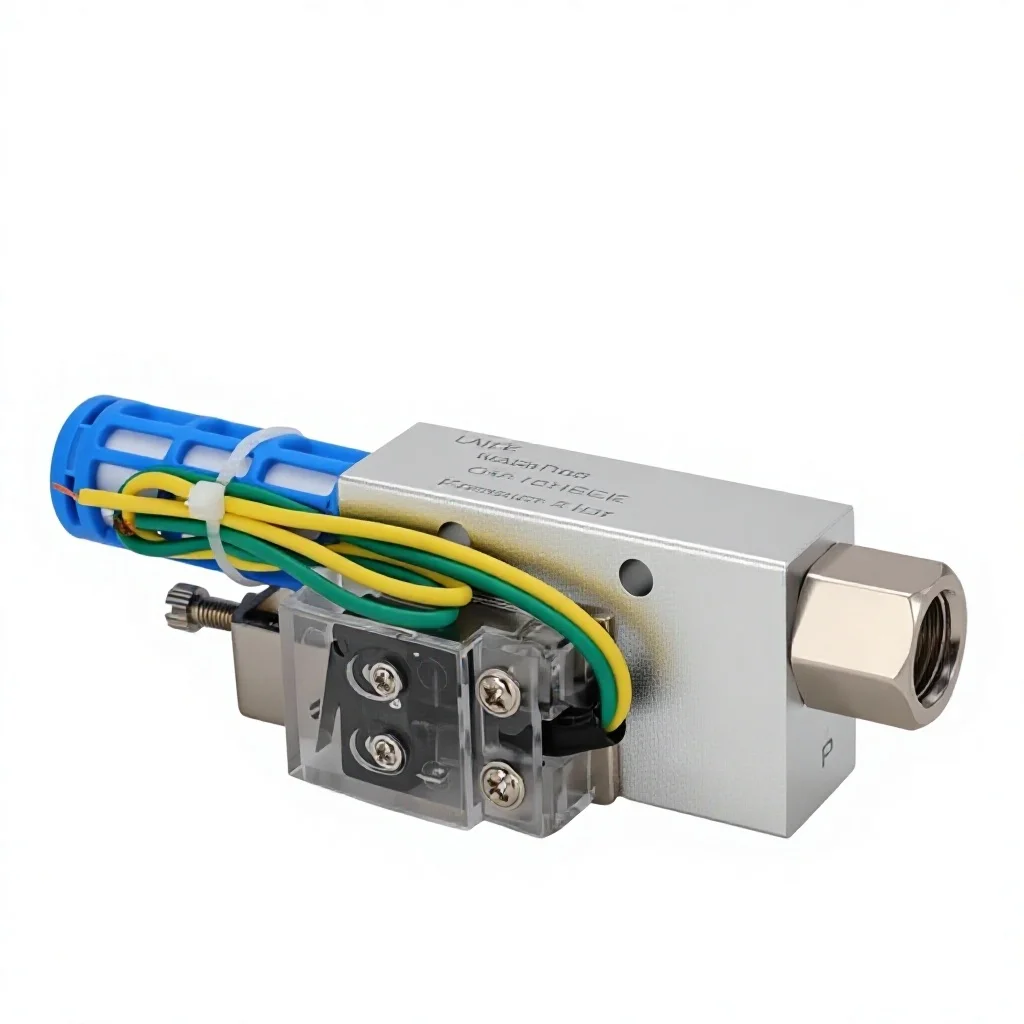

This integrated CV vacuum generator set adopts premium industrial aluminum alloy material, with polished surface and smooth internal flow channels, no air leakage, no rust, excellent compression resistance and long-term structural stability. Equipped with dual 10-valve and 15-valve pneumatic configurations, it balances airflow and negative pressure output perfectly: 10-valve for precise small-workpiece suction, 15-valve for large-flow heavy-load stable grabbing, covering diversified vacuum demand. The matched ZU07s negative-pressure switch realizes real-time vacuum pressure detection and automatic signal feedback, intelligently monitoring suction status to avoid empty suction and workpiece dropping, greatly improving automation operation accuracy. Supporting ZFC professional air filtration module, it effectively filters dust, water mist and fine impurities in compressed air, protecting the internal ejector structure and suction cup accessories from abrasion and blockage, extending the overall service life of pneumatic components. Adopting advanced Venturi vacuum generating principle, the unit features fast vacuum response, instant pressure build-up and quick release, adapting to high-speed automated cyclic operation. The ultra-compact integrated design saves installation space, supports plug-and-play assembly, and is highly compatible with all mainstream robotic arms, vacuum suction cups and pneumatic automation equipment.
Product Advantages
First, all-in-one integrated design. Integrates vacuum generation, air filtration and pressure monitoring functions, eliminating the trouble of separate component matching, simplifying pipeline layout and reducing equipment assembly costs. Second, high-stability aluminum alloy build. Lightweight yet high-rigidity body resists deformation and corrosion, maintains stable air tightness under long-term high-pressure and high-frequency operation, with lower failure rate than plastic casings. Third, intelligent pressure monitoring. ZU07s negative-pressure switch feeds back vacuum data in real time, effectively preventing production errors caused by insufficient pressure or air leakage, improving production yield. Fourth, effective air source purification. Built-in ZFC filter ensures clean airflow, avoids internal component clogging and suction attenuation, reducing daily maintenance frequency. Fifth, dual-spec high universality. 10-valve and 15-valve two specifications meet precision and high-flow working conditions respectively, suitable for almost all robotic arm vacuum handling scenarios with ultra-high cost performance.
How to Use
First, select the correct specification according to workpiece weight and suction demand: choose 10-pneumatic valve model for small precision workpieces and thin film materials; choose 15-valve high-flow model for medium and large heavy workpieces. Inspect the aluminum alloy body, filter element and switch interface for damage, blockage or air leakage before installation. Second, fix the vacuum generator stably on the robotic arm or automation equipment bracket, keep the installation horizontal to ensure smooth internal airflow. Third, connect the compressed air pipeline to the air inlet port, install the ZFC filter correctly to ensure forward airflow direction, and connect the vacuum suction cup pipeline to the suction port. Fourth, debug the ZU07s negative-pressure switch threshold according to production requirements, set the standard vacuum pressure range for automatic monitoring and alarm feedback. Fifth, perform idle test operation, check vacuum response speed, sealing performance and switch signal sensitivity, confirm no air leakage, blockage or abnormal signal delay. Sixth, conduct trial gripping operation, verify stable suction and accurate pressure monitoring, then launch formal automated production. For daily maintenance, regularly clean or replace the ZFC filter element to keep the air source clean, check pipeline tightness and switch sensitivity periodically, and replace aging accessories timely to ensure long-term stable operation.
About Product
Highlight
Powerful Suction: Generates strong suction for effective cleaning tasks.
Multiple Valve Design: Ensures reliable pneumatic control for precise operation.
Aluminum Alloy Construction: Durable and lightweight for long-term use.
Robotic-Arm Compatibility: Ideal for advanced robotic applications with J-CV models.
Compact Design: Easy to install and maneuver for versatile use.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
