Product Features
Integrated One-piece Molding Design: All-in-one integrated structure eliminates extra connecting joints and buffer accessories. No assembly gap exists between cup body and mounting base, thoroughly solving interface air leakage problem of split suction cups, improving overall vacuum stability.
Industrial Grade Blue Wear-resistant Rubber: Custom thick blue rubber material has better wear resistance and tear strength than ordinary black rubber suction cups. It resists frequent friction with rough cartons, bricks and steel plates, greatly extending service life for heavy-duty continuous operation.
Super Strong Heavy Load Holding Power: Reinforced thick cup wall structure prevents cup body deformation and collapse under heavy load. It provides stable ultra-strong suction force to handle heavy workpieces safely without falling off during full-process palletizing movement.
Excellent Adaptability for Rough & Smooth Surfaces: Flexible wide suction lip fits tightly on smooth steel plates, flat wood boards, porous cartons and uneven brick surfaces. Good surface adaptability meets multi-workpiece palletizing demands with one single suction cup.
Built-in Buffer Compensation Performance: The integrated cup body comes with inherent mild telescopic buffer function, offsetting minor positioning errors of manipulators and reducing rigid impact between suction cup and workpieces during grabbing.
Direct Plug-and-play Installation: Standard unified mounting interface matches all mainstream palletizing manipulators and vacuum generators. No extra adapters needed, realizing quick replacement and reducing equipment maintenance downtime.
Product Advantages
First, Zero air leakage with integrated integral structure. Canceled split splicing structure removes all hidden air leakage points, maintaining stable vacuum pressure all the time and improving palletizing operation stability. Second, Multi-scene universal grabbing capability. Compatible with smooth metal, wood, porous carton and rough brick workpieces, realizing one suction cup for multiple palletizing tasks and simplifying spare parts inventory. Third, Long service life for harsh workshop environments. Premium blue wear-resistant rubber withstands friction, dust and temperature changes in industrial workshops, cutting long-term replacement costs. Fourth, Simplified mechanical structure reduces failure rate. Fewer assembled parts mean lower mechanical failure probability, suitable for 24-hour non-stop automatic palletizing production lines. Fifth, High cost performance for bulk palletizing projects. Factory direct wholesale price with industrial heavy-load performance, ideal standard replacement consumables for large logistics stacking and automated handling projects.
How to Use & Precautions
Installation and Operation Steps: First, confirm the mounting interface matches your palletizing manipulator; clean dust, paper scraps, brick powder and metal debris on the suction cup lip before installation to ensure complete sealing. Second, install the integrated blue suction cup firmly on the manipulator vacuum connector, tighten the interface completely to avoid loosening and air leakage caused by high-frequency vibration during stacking work. Third, adjust vacuum negative pressure to standard heavy-load working range, match suction pressure according to actual workpiece weight to avoid insufficient suction or excessive pressure damage. Fourth, conduct idle running test to check vacuum tightness and telescopic buffer performance, confirm no air leakage or cup body shaking. Fifth, carry out trial grabbing test on cartons, steel plates, wood boards and bricks respectively, verify stable adsorption without slipping or workpiece dropping during lifting and rotating, then launch formal automatic palletizing production. Important Usage Precautions: Clean the suction lip regularly to prevent residual debris from affecting sealing effect; avoid sharp hard objects scratching the rubber surface; do not exceed the rated heavy load to prevent cup body collapse; inspect rubber aging and crack conditions periodically; replace the suction cup timely once suction attenuation or permanent deformation occurs; keep stable vacuum supply to guarantee consistent palletizing efficiency.
Material

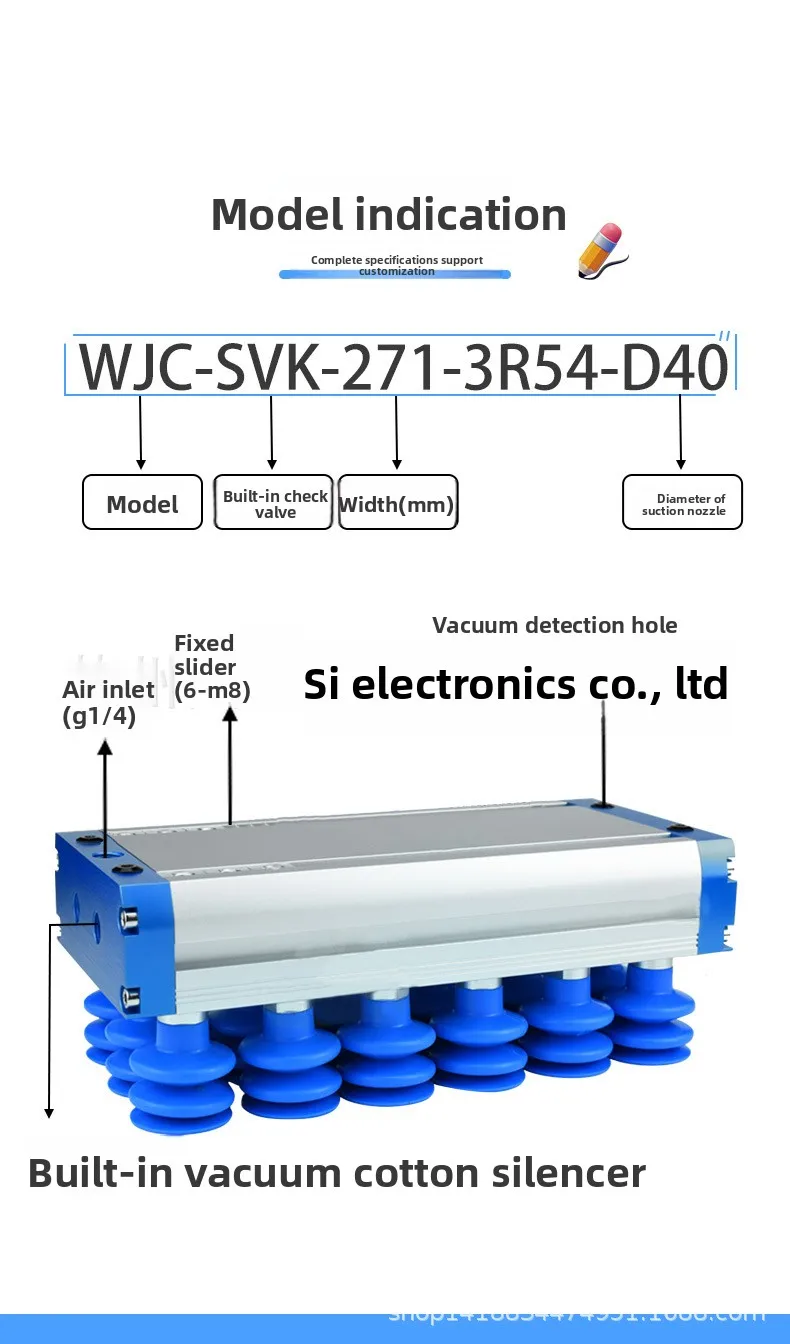

271 - wjf-svk-130271-3r54-d40
310 - wjf-svk-130310-3r54-d40
330 - wjf-svk-130330-3r54-d40
335 - wjf-svk-130335-3r54-d40
406 - wjf-svk-130406-3r54-d40
527 - wjf-svk-130527-3r54-d40
531 - wjf-svk-130531-3r54-d40
550 - wjf-svk-130550-3r54-d40
610-wjf-svk-130610-3r54-d40
Six hundred forty-five - wjf-svk-130645-3r54-d40
Eight hundred - wjf-svk-130800-3r54-d40
920-wjf-svk-130920-3r54-d40
1000 - wjf-svk-1301000-3r54-d40
1100 - wjf-svk-1301100-3r54-d40
About Product
Highlight
Heavy Duty Design: Capable of handling heavy cartons and pallets efficiently.
Steel Plate Construction: Provides durability and long-lasting performance.
Pneumatic Technology: Ensures smooth and consistent suction for precise placement.
Integrated Vacuum Suction Cup: Enhances efficiency by allowing controlled movement of objects.
Industrial Strength: Ideal for professional use in warehouses and factories.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
