Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector
Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector

Industrial air nozzle accessories PJTK PJYK pneumatic PJG-60 70 80S/N heavy-duty vacuum suction cup assembly fitting connector

Place of Origin:

CHINA

Brand Name:

Edith

Model Number:

60/70/80

Minimum Order Quantity:

Negotiable

Price:

Negotiable

Packaging Details:

Carton package/Wooden cases

Delivery Time:

Depending on the order quantity

Payment Terms:

L/C, T/T

Supply Ability:

Negotiable
Inquiry Contact Us
  • Description
Inquiry

Is there a problem? Please contact us to serve you!

+86-18015634179
[email protected]
Inquiry

Disc diameter

Customized Accepted

Material:

Aluminum profile/Sponge

Highlight 1:

Not easily deformed（不易变形）

Highlight 2:

Anti-Aging Insulated（抗老化）

Application:

 Industry

Name:

PJYK Series Vacuum Suction Cup

High Light:

High-Temperature Resistant（耐高温）

Process Steps

ODM

ODM

Step 1

CustomerRequirement

CustomerRequirement



Step 2

SchemeAppraisal

SchemeAppraisal



Step 3

ProfileConfirmation（Packing Dimension Functional）



Negotiation Cooperation



Step 4

Sample Design

Quote



Step5

Small BatchProduction



Sample Confirmation



Step 6

Product Confirmation



Small Batch Production



Step7

-

Product Confirmation

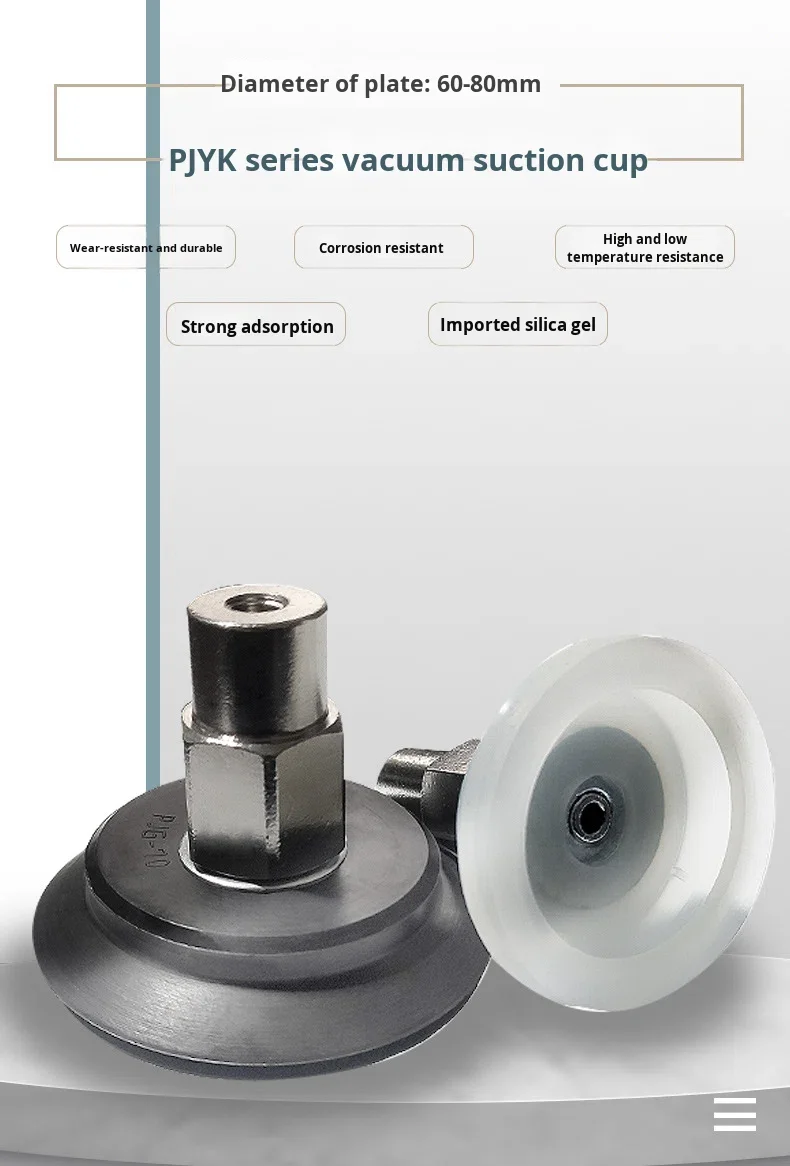

PJYK 60, 70, 80 Series Vacuum Suction Cups

The PJYK 60, 70, 80 series vacuum suction cups are corrugated double-layer vacuum suction cups under the Taiwanese brand CONVUM, belonging to the PJYK product line, with diameters of 60mm, 70mm and 80mm respectively. Below is the detailed introduction:

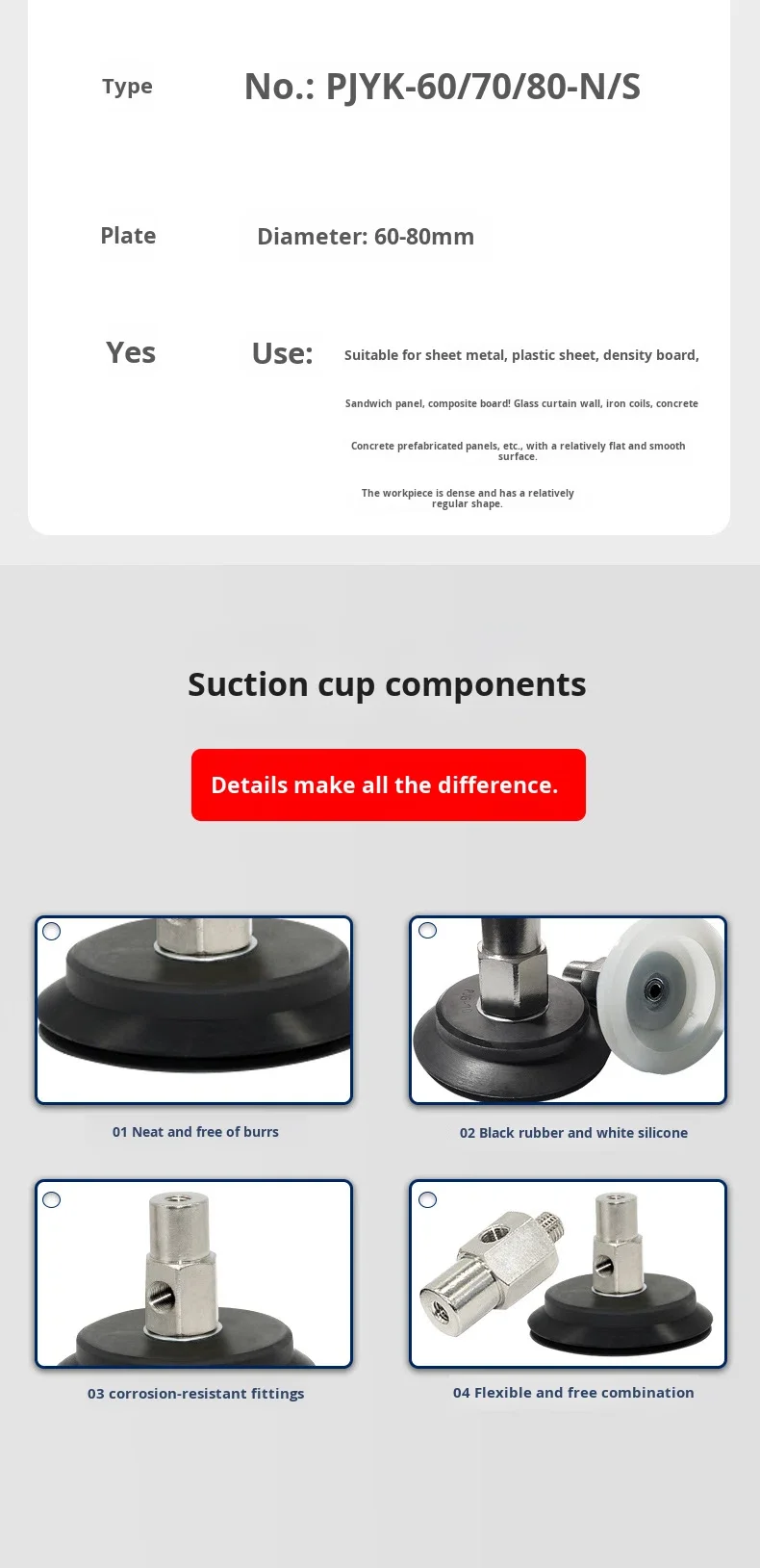

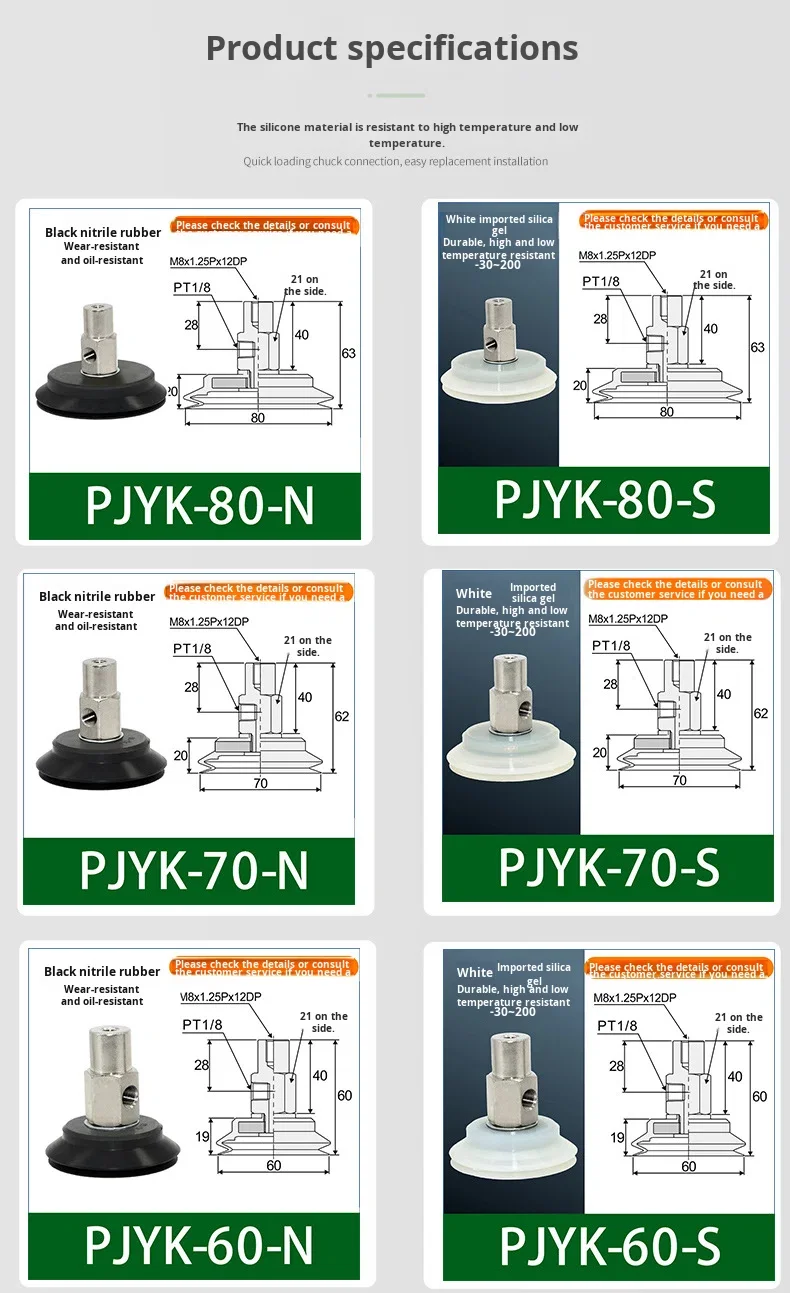

Model Specifications: Common models include PJYK-60-N, PJYK-60-S, PJYK-70-N, PJYK-70-S, PJYK-80-N, PJYK-80-S, etc. Among them, "N" generally stands for nitrile rubber material, and "S" stands for silica gel material.

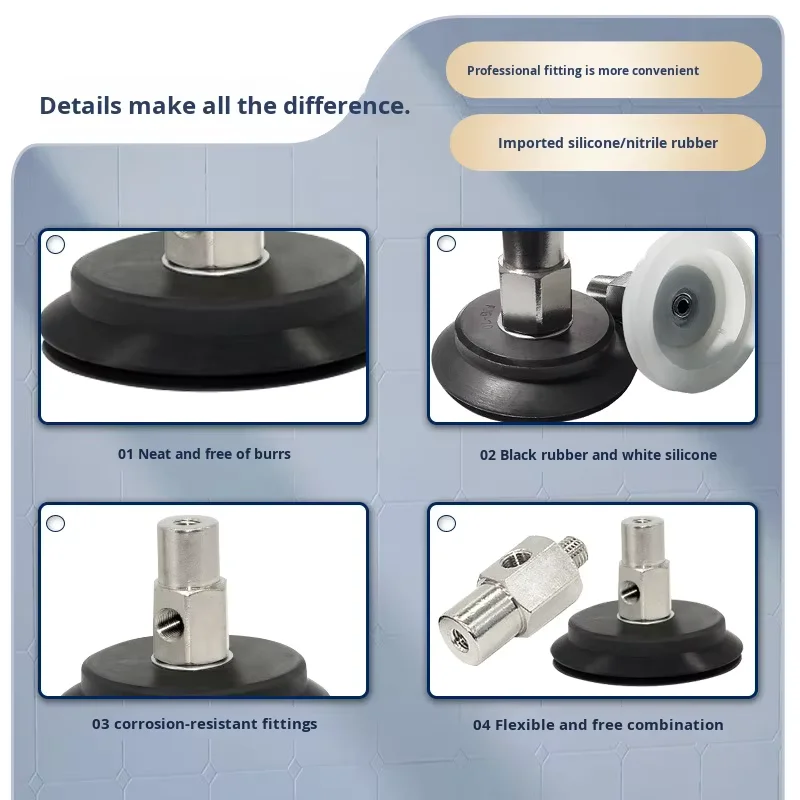

Product Features: The metal holders of this series of suction cups adopt imported copper plating technology, which is not only aesthetically pleasing but also corrosion-resistant. The double-layer structural design enhances the stability of adsorption, with a service life of over 200,000 effective adsorption cycles. In addition, the suction cup has a thin lip with excellent sealing performance against workpieces, making it suitable for adsorbing tilted objects.
Air Connection Methods: Two vacuum air pipe connection directions are available: horizontal and vertical. The horizontal connection models fall under the PJYK series, while the vertical connection models are designated as the PJTK series, which facilitates flexible installation according to the actual mounting space and air pipe layout.
Application Fields: These suction cups are suitable for vacuum systems of automated equipment, and can be used to hold and transfer thin and light objects such as glass, paper and cartons. They are widely applied in industries including construction, packaging equipment, papermaking and printing.

item
value
Place of Origin
China
Action Method
Double Action
Material
Nitrile rubber Silicone
MOQ
100
Disc diameter
60-80
Sample
Accpetable
Feature
Strong adsorption
Application
Industrial robot arm
Color
Black and white
OEM/ODM
Accpetable
