Soft Corrugated Spring‑Loaded Vacuum Port Suction Cup Assembly, Nitrile/Silicone Rubber Robotic Arm Accessory with Shock‑Absorbing Buffer

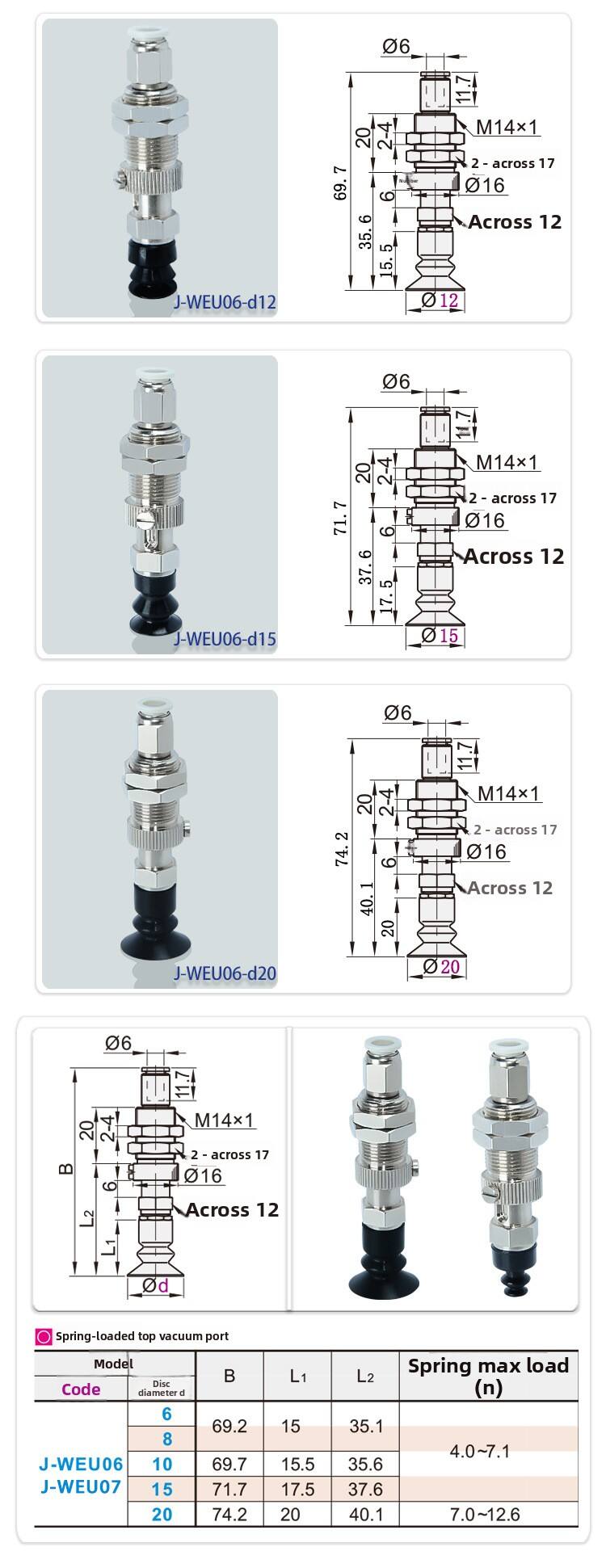

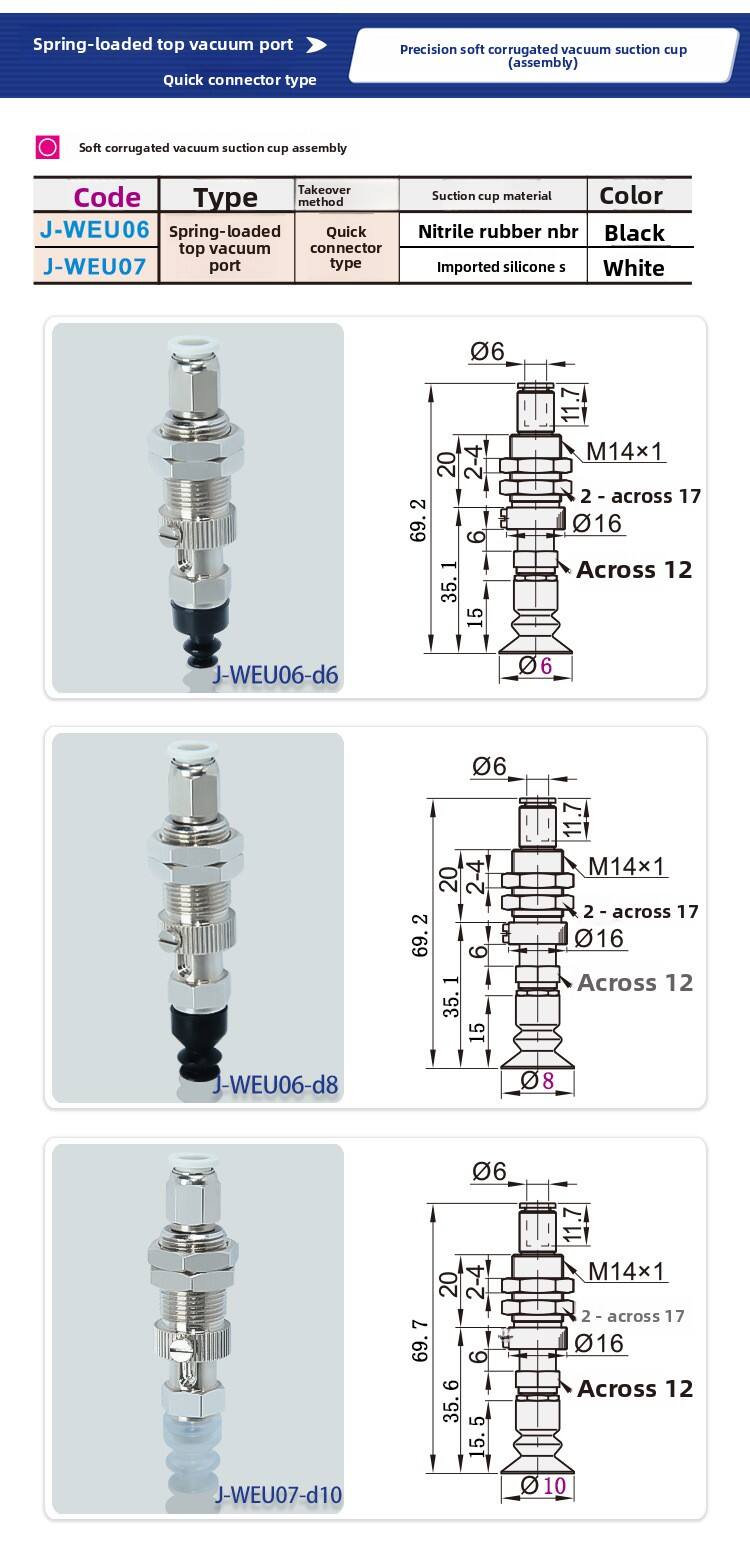

Product Name	Soft Corrugated Spring‑Loaded Vacuum Cup	Model	J‑WEU06
Thread Spec	M14 Thread	Cup Material	Nitrile Rubber / Silicone Rubber
Body Material	Nickel‑Plated Metal	Structure Type	Spring‑Loaded Buffer Type
Temperature Resistance	Silicone‑40~200℃, NBR‑20~80℃	Buffering Mode	Built‑in Spring Telescopic Buffer
Adsorption Feature	Fits Curved Surfaces, Strong Suction	Sealing Performance	Vacuum‑Tight Sealing
Application	Robotic Arm, Automated Handling	Advantage	Workpiece‑Friendly, Stable Shock Absorption

Inquiry Contact Us

Description

Is there a problem? Please contact us to serve you!

+86-18015634179

[email protected]

Inquiry

Detail Information

Who are we?	We are based in Jiangsu, China,sell North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). In total, there are about 5 to 10 people in our office.
How do we guarantee quality?	There will always be pre-production samples before mass production; Be sure to do a final inspection before shipping;
Why should you buy from us and not from other suppliers?	We have 20 years of design and research experience, focusing on all kinds of automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware supports, pneumatic components, silicone products, rubber professional products

Description

Service items	Description
Packaging	Export-grade standard packaging, moisture-proof and shockproof
Delivery	Ample inventory
Custom packages	Customized packaging is provided according to customer requirements
After-sales service	Professional technical support and after-sales service
Customization	We provide OEM and ODM customized services for buyers worldwide

Product Description

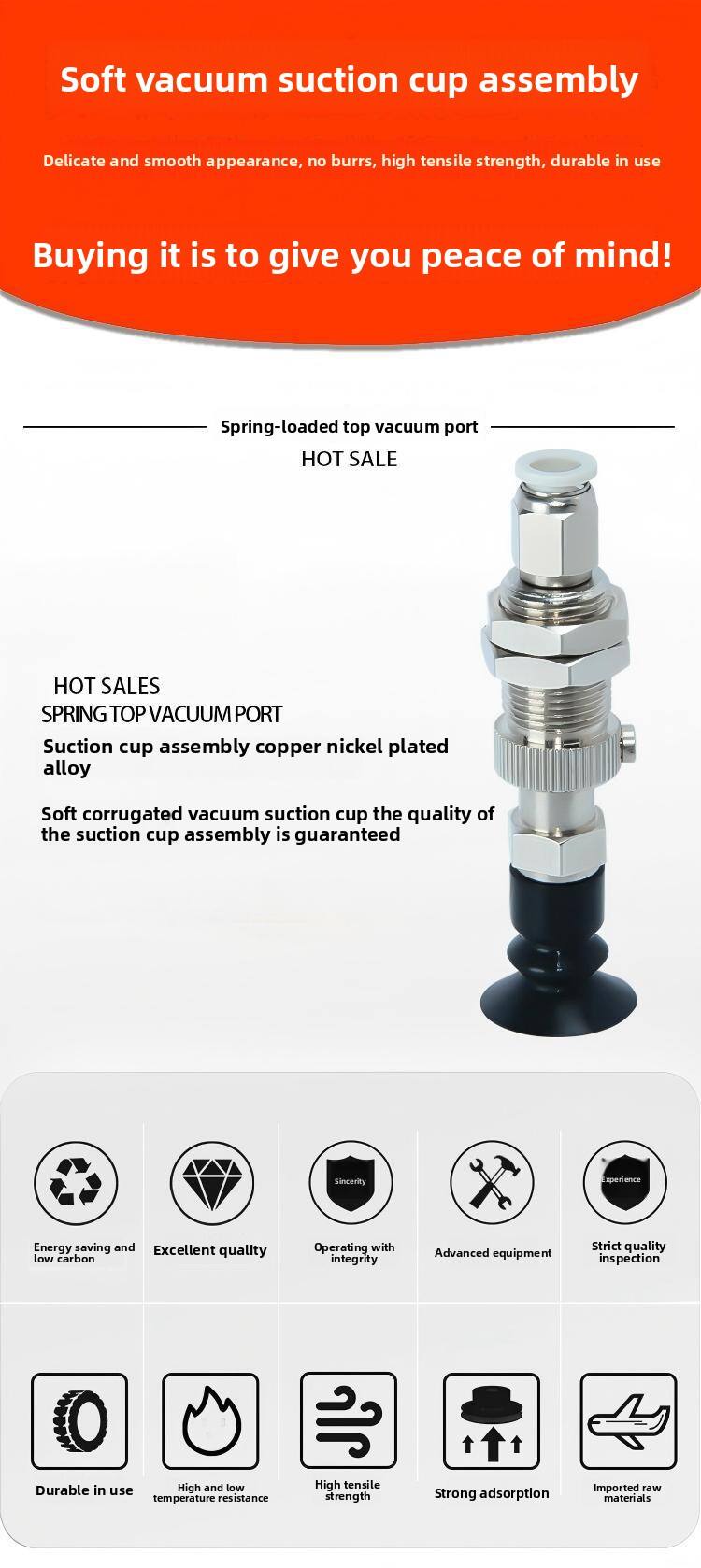

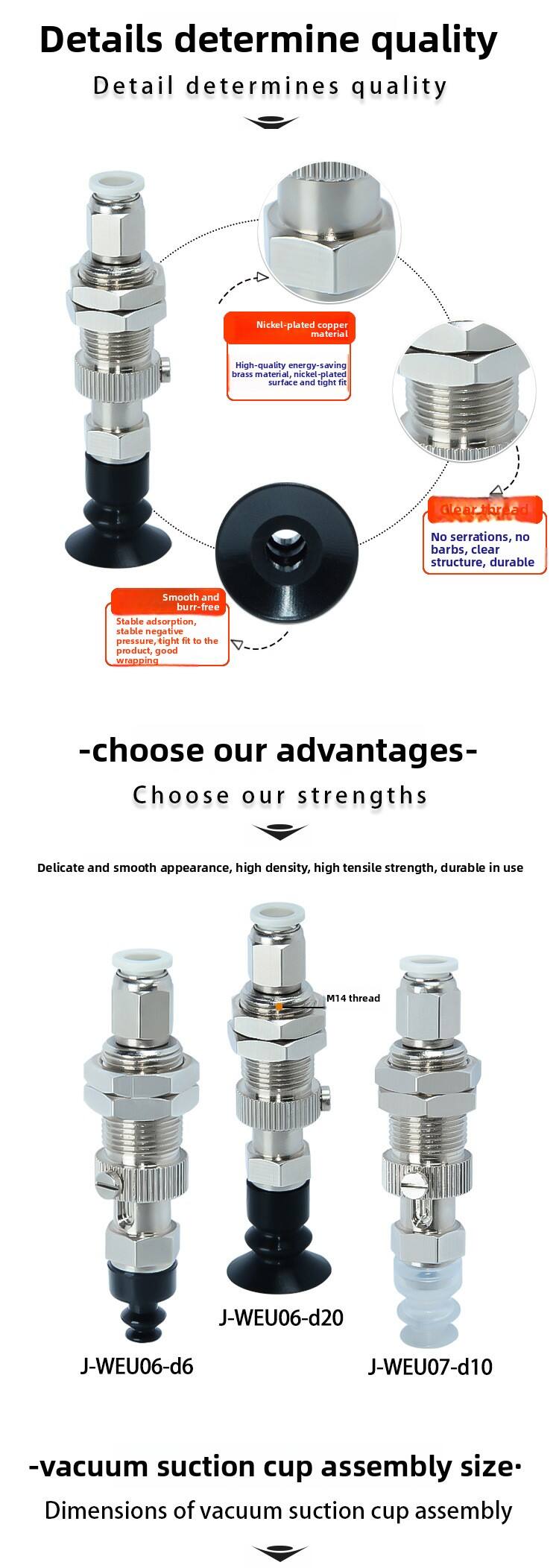

This J‑WEU06 soft corrugated spring‑loaded vacuum port is a high‑performance suction cup for automated handling equipment. It adopts spring‑loaded telescopic buffer structure with standard M14 thread. The suction cup is available in nitrile rubber or silicone rubber, while the main body is made of nickel‑plated metal for rust and corrosion resistance. Featuring flexible buffering, stable vacuum adsorption and tight fitting on irregular surfaces, it effectively protects workpieces from scratching and impact damage. Factory direct sales support non‑standard customization with favorable bulk discounts.

Core Advantages & Features

Spring‑loaded buffer design：Built‑in spring provides flexible shock absorption, reducing impact and protecting workpieces.
Two optional materials：Nitrile rubber for oil‑resistant scenarios; silicone rubber for high‑temperature working environments.
Standard M14 thread：Universal connection, easy to install and disassemble with vacuum fittings, air‑tight and stable.
Soft corrugated suction head：High flexibility, closely fits curved and uneven surfaces to ensure strong suction force.
Durable nickel‑plated body：Anti‑rust, wear‑resistant and long service life for continuous industrial operation.
Customizable service：Non‑standard sizes and specifications available to meet personalized automation needs.
