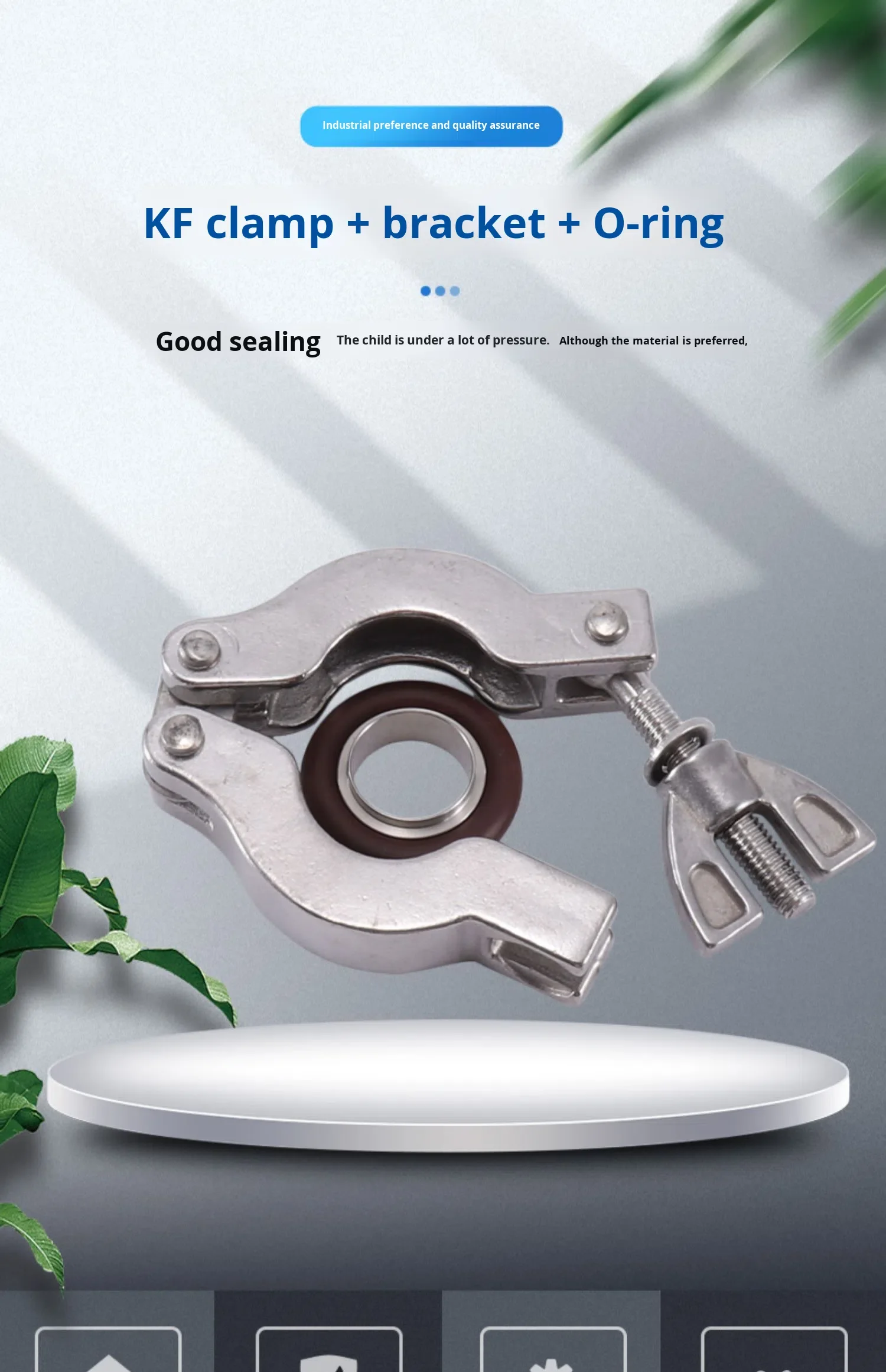

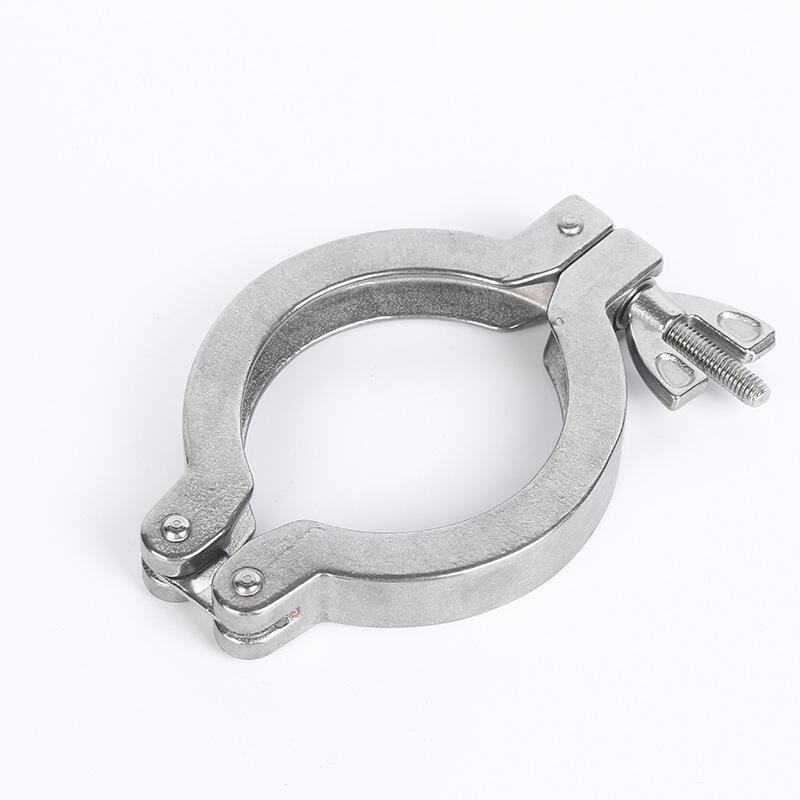

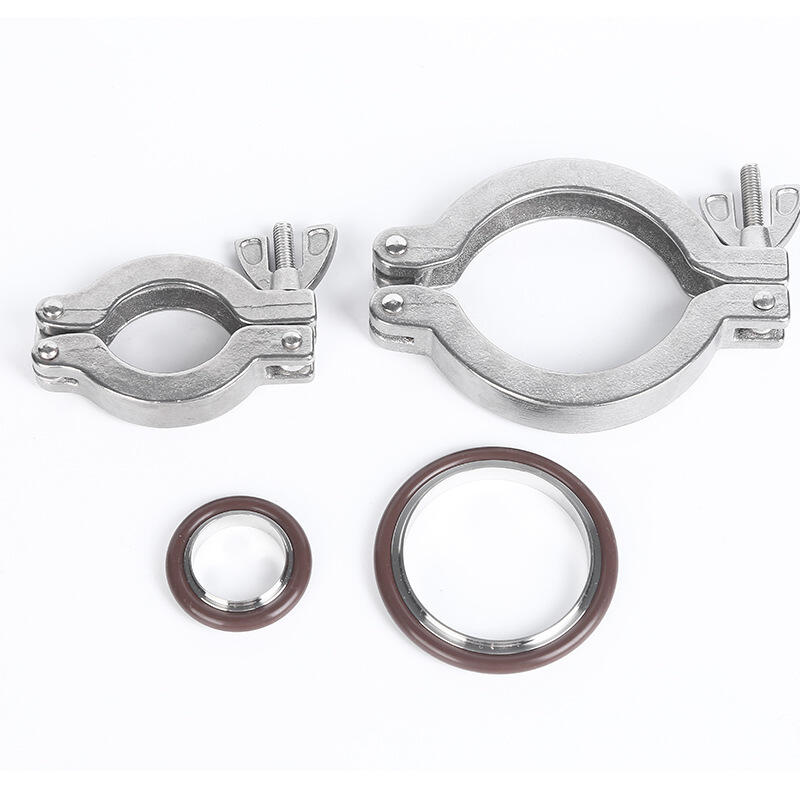

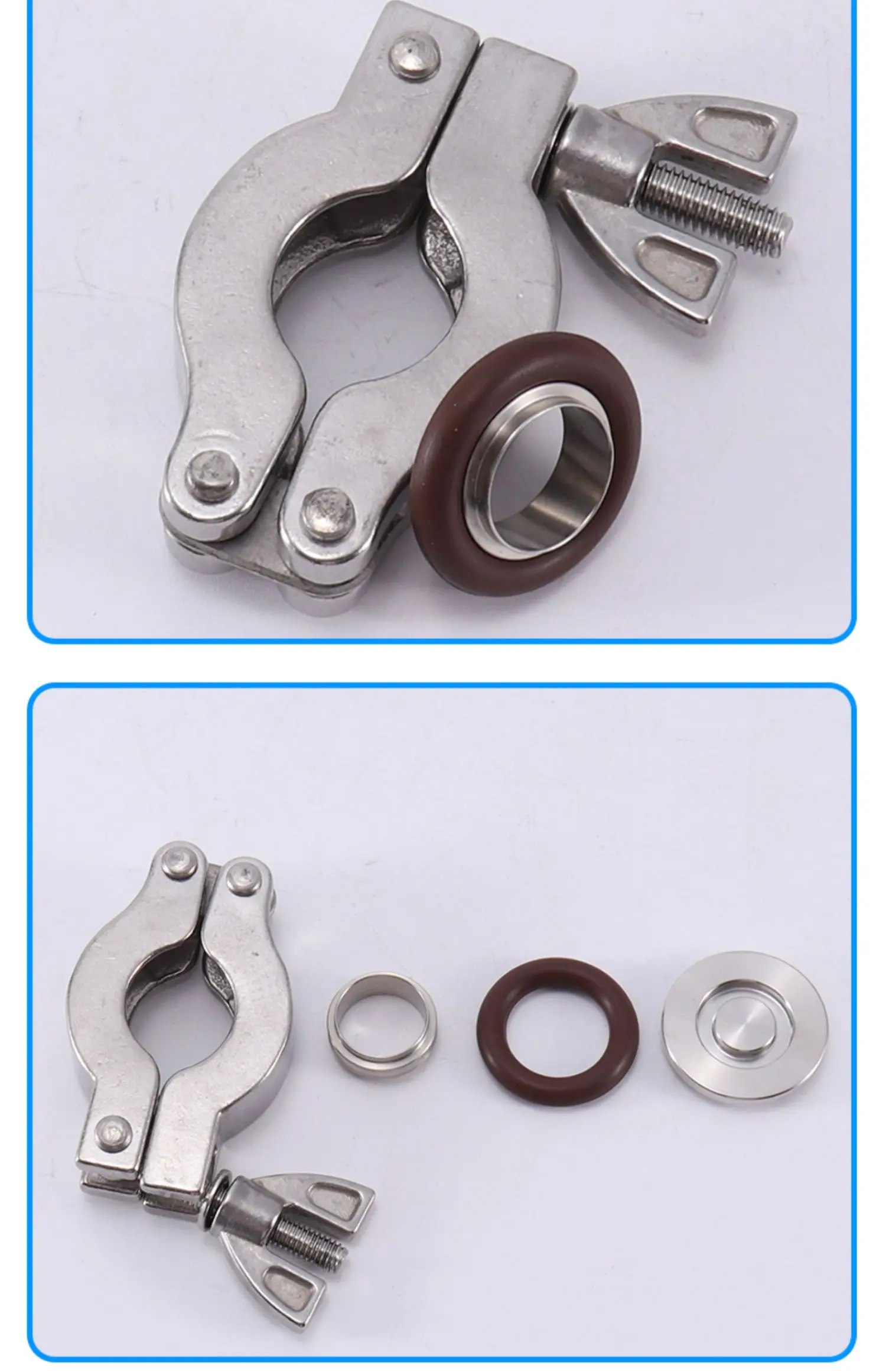

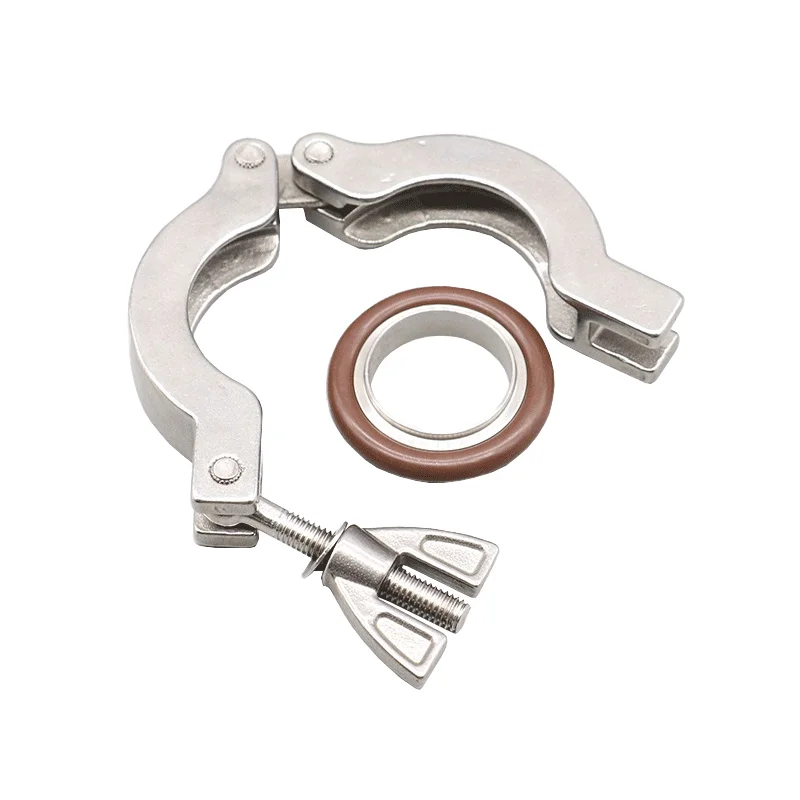

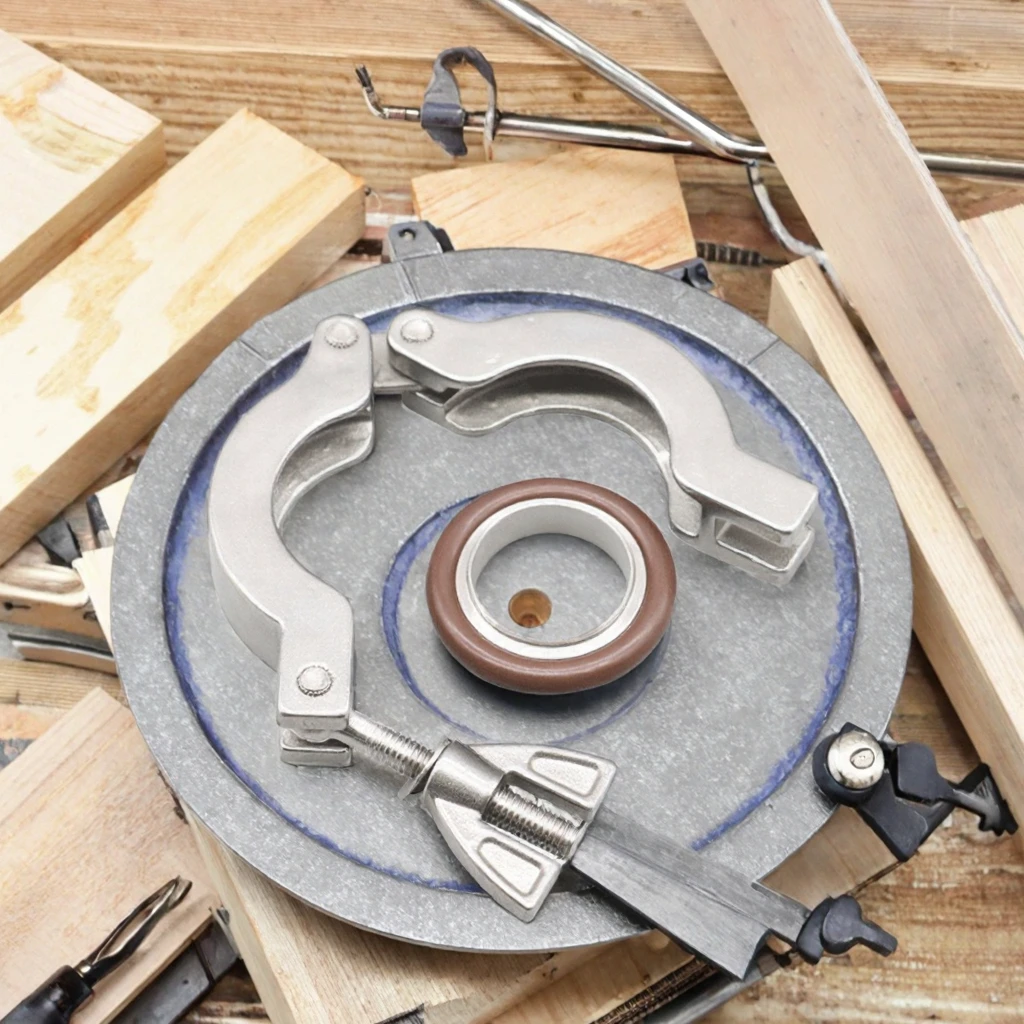

This 304 stainless steel KF vacuum clamp is a professional industrial accessory designed for vacuum pipe systems, equipped with machined NPT threads, quick installation brackets and matching sealing rings. It is compatible with KF series specifications, suitable for industrial vacuum pipeline connection, sealing and fixing, widely used in machinery, mould, chemical, electronic and other industrial fields, with reliable sealing performance and convenient operation.
Product Advantages

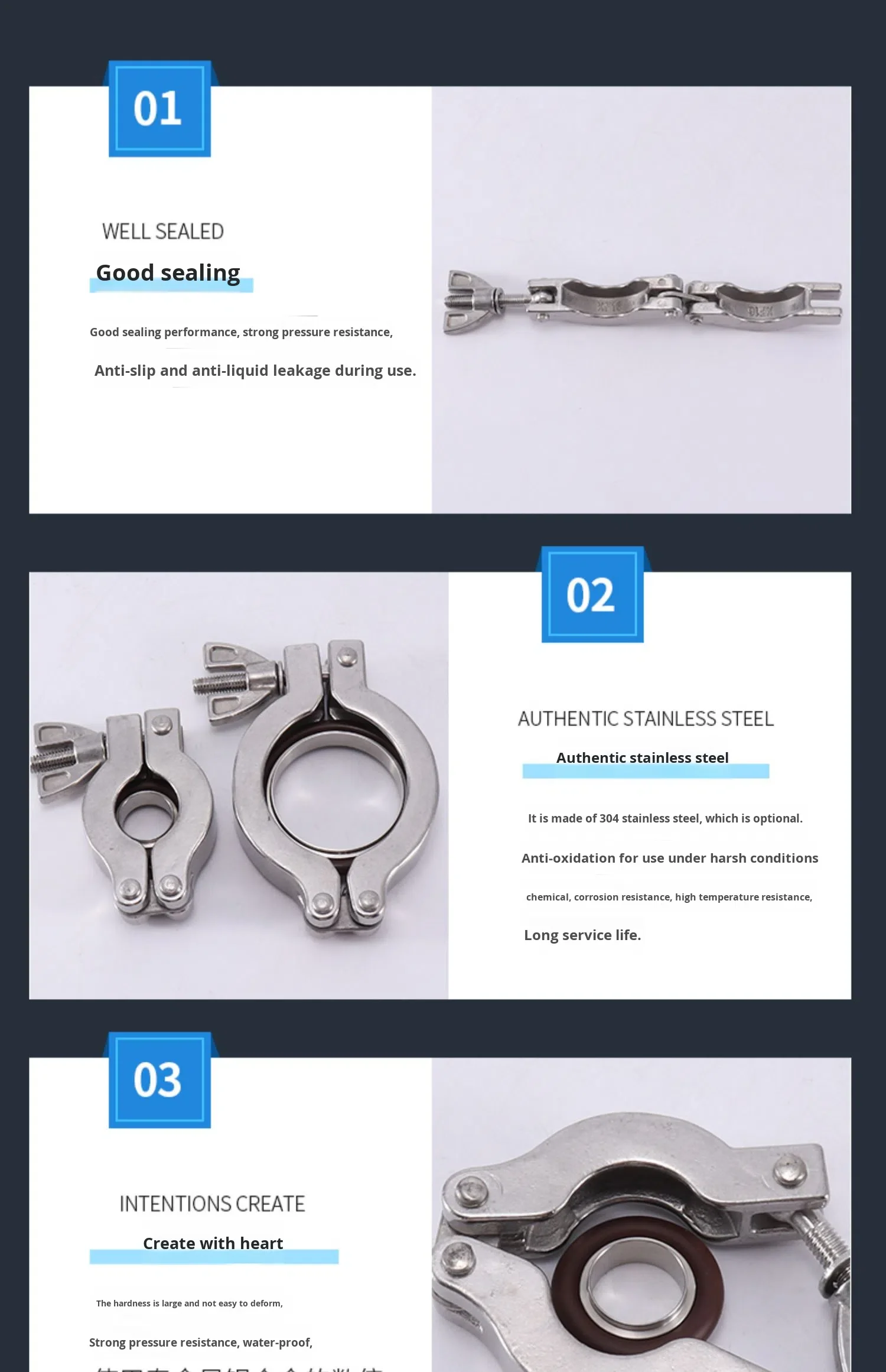

High-Quality 304 Stainless Steel Material Made of premium 304 stainless steel, it has excellent corrosion resistance, rust resistance and high temperature resistance, can withstand harsh industrial environments (such as chemical corrosion, high and low temperature changes), not easy to deform, rust or damage, ensuring long-term stable use.
Superior Sealing Performance Equipped with special sealing rings, combined with precision machining technology, it can achieve tight sealing between vacuum pipelines, effectively preventing air leakage, ensuring the vacuum degree of the pipeline system, and avoiding the impact of air leakage on industrial production.
Quick Installation & Disassembly With quick installation bracket and reasonable structural design, it can be installed and disassembled quickly without complicated tools, greatly improving the efficiency of pipeline connection and maintenance, saving time and labor costs.
Precision Machined NPT Thread The NPT thread is machined with high precision, smooth and burr-free, ensuring tight connection with pipeline fittings, no loosening or air leakage, and strong compatibility with standard NPT pipeline components.
Strong Compatibility Compatible with KF series vacuum pipeline specifications, suitable for various vacuum pipe connection scenarios, with strong versatility, can be matched with different types of vacuum pipeline accessories, meeting diverse industrial needs.
Durable & Wear-Resistant 304 stainless steel material has high hardness and wear resistance, can withstand long-term clamping force and pipeline vibration, not easy to wear or break, and has a long service life, reducing the frequency of replacement and maintenance.
Product Features
304 Stainless Steel Construction Premium 304 stainless steel, non-toxic, corrosion-resistant, high-temperature resistant, suitable for various industrial vacuum environments, durable and reliable.
Precision Machining Integral precision machining, smooth surface, uniform size, NPT thread fit closely, clamping force evenly distributed, ensuring stable connection and sealing performance.
Quick Installation Bracket Equipped with dedicated quick installation bracket, simple operation, one-person can complete installation and disassembly, improving work efficiency, suitable for high-frequency maintenance scenarios.

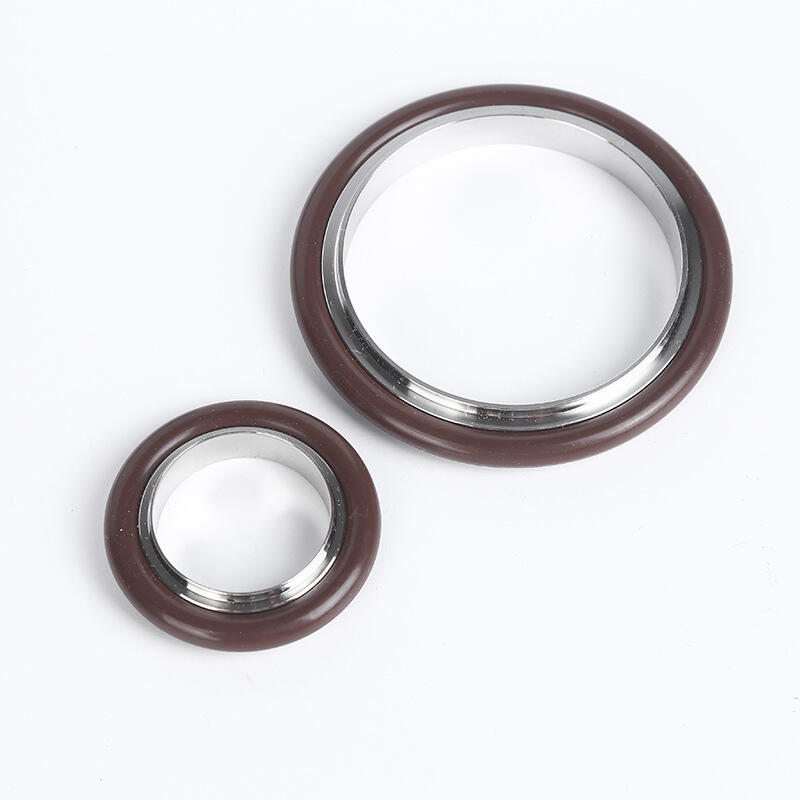

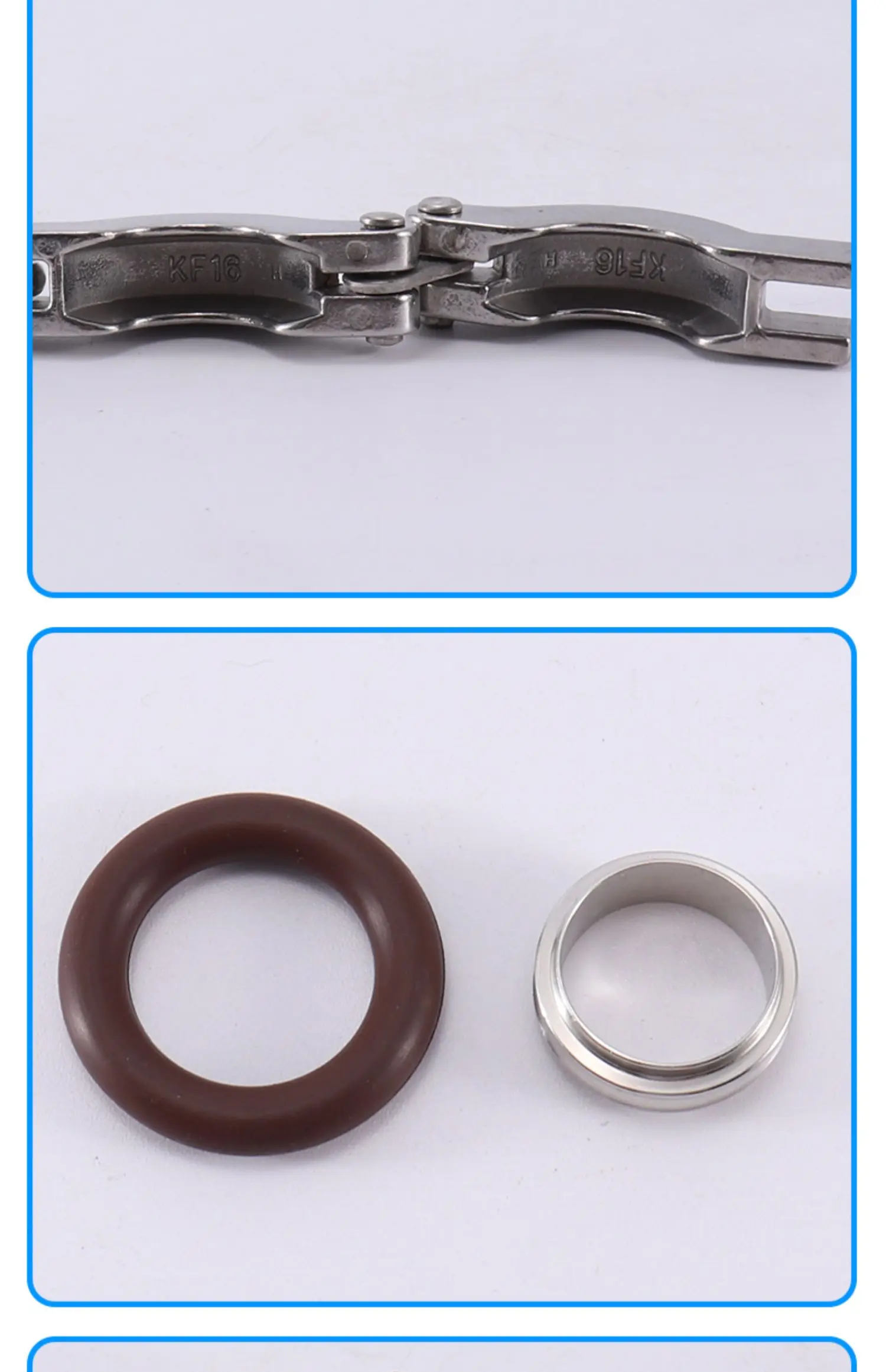

Integrated Sealing Ring Matching sealing ring is included, made of high-quality sealing material, good elasticity and sealing performance, not easy to age or deform, ensuring long-term effective sealing.

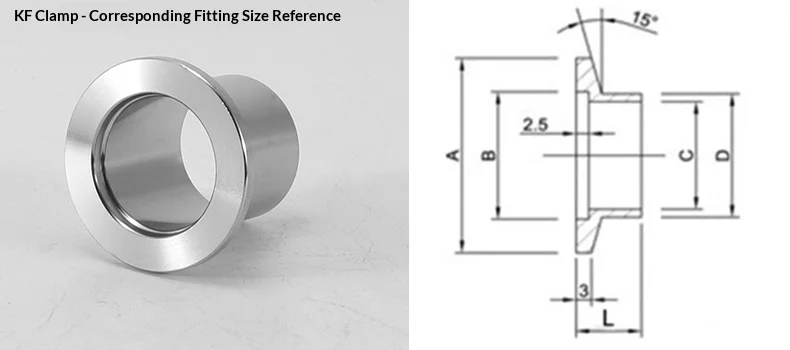

Standard KF Compatibility Designed according to standard KF vacuum pipeline specifications, compatible with common KF series accessories, strong versatility, easy to match and replace.
Stable Clamping Force Scientific structural design, strong clamping force, can firmly fix vacuum pipelines, prevent pipeline displacement or loosening caused by vibration during operation.
Usage Method
1. Pre-Installation Preparation
Before installation, check the integrity of the vacuum clamp: confirm that the 304 stainless steel body has no cracks, deformation, rust or burrs; check the NPT thread for damage or deformation; check the sealing ring for cracks, aging or damage, and replace it if necessary. Clean the connection surface of the vacuum pipeline and the clamp, remove dust, oil stains, rust and other debris to ensure the sealing effect. Prepare matching tools (such as wrenches) and pipeline accessories.
2. Installation Steps
First, install the sealing ring on the connection port of the vacuum pipeline, ensuring that the sealing ring is placed flat and not skewed. Align the NPT thread of the clamp with the thread of the pipeline fitting, and rotate it clockwise to tighten it gently (do not over-tighten to avoid damaging the thread). Fix the clamp on the pipeline through the quick installation bracket, adjust the position to ensure that the clamp is aligned with the pipeline connection port, and fasten the bracket to make the clamp firmly fixed.
After installation, check the tightness of the connection: gently shake the pipeline to confirm that there is no loosening; check whether there is air leakage at the connection port, and if air leakage is found, re-tighten the clamp or replace the sealing ring.
3. Daily Operation & Maintenance
During daily use, regularly check the working state of the clamp: observe whether the clamp is loose, whether the sealing ring is aging or damaged, and whether the NPT thread is worn. Keep the clamp clean, and wipe the surface with a clean dry cloth regularly to remove dust and debris, avoiding corrosion. If the clamp is not used for a long time, disassemble it, clean it thoroughly, and store it in a dry, ventilated place, away from high temperature, humidity and corrosive environments.
4. Disassembly Steps
When disassembly is needed, first loosen the quick installation bracket, then rotate the clamp counterclockwise to separate it from the pipeline fitting. Take out the sealing ring, clean the clamp and pipeline connection port, and store the clamp and sealing ring separately for next use. Do not use brute force during disassembly to avoid damaging the clamp, thread or pipeline.
Notes
Do not use the clamp beyond the specified working pressure and temperature range, to avoid damaging the clamp and affecting the sealing performance.
Do not over-tighten the clamp during installation, to prevent thread damage, clamp deformation or sealing ring damage.
Regularly check the sealing ring and replace it in time if it is aging, cracking or damaged, to ensure the sealing effect of the vacuum system.
Avoid using the clamp in strong corrosive environments (such as strong acid, strong alkali) for a long time, to prevent corrosion of the 304 stainless steel body.
Do not use damaged clamps (such as cracks, thread damage), to avoid safety risks and air leakage.
When installing and disassembling, use matching tools, do not use brute force, to avoid damaging the clamp and pipeline accessories.
