Product Features

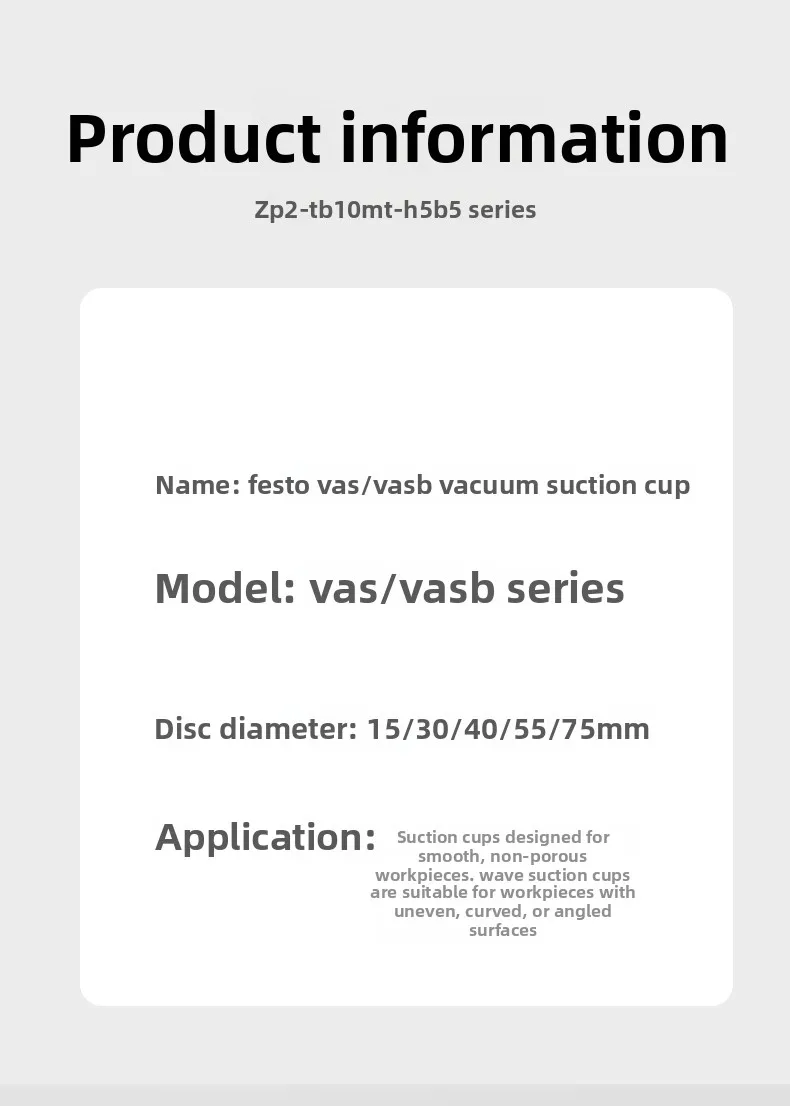

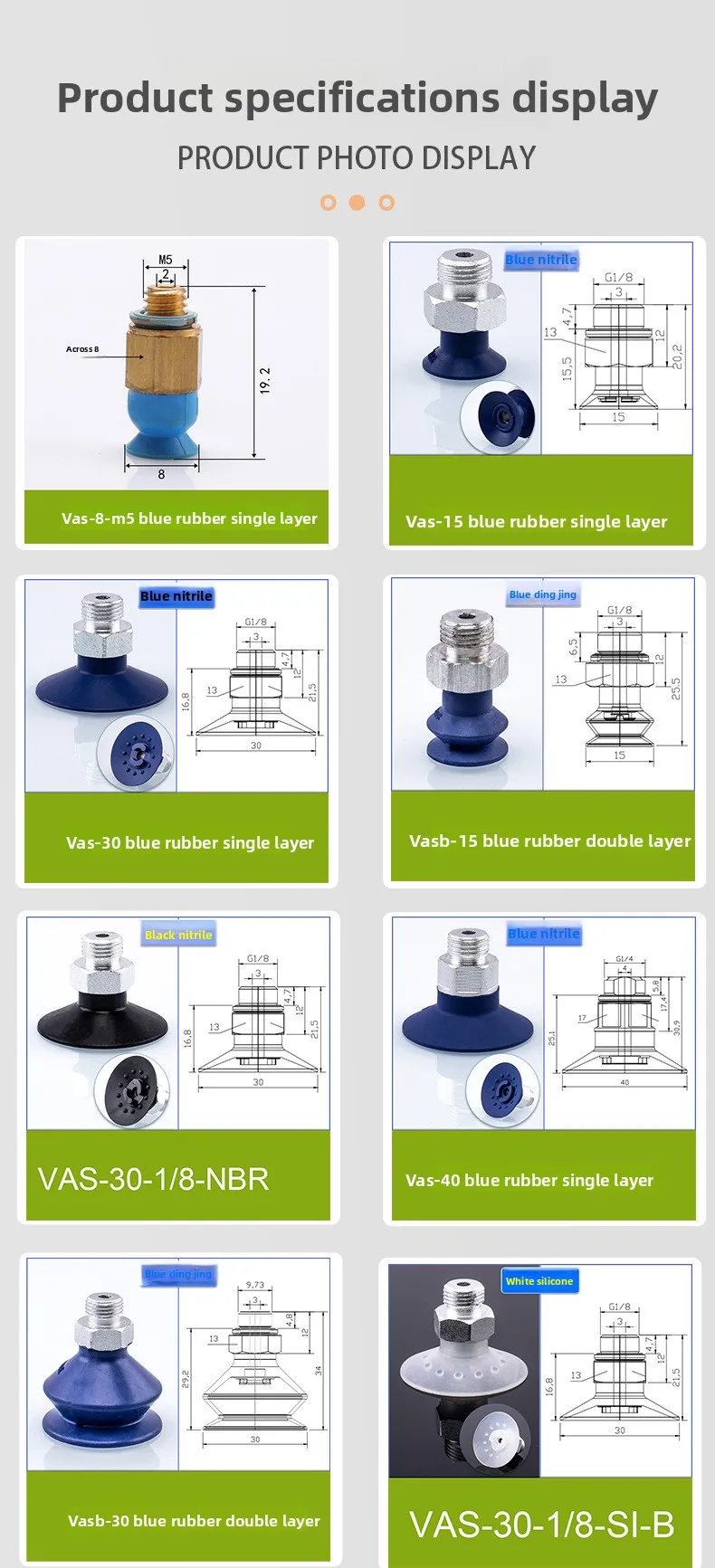

Two complete specifications for graded matching: VAS15 (15mm diameter) small size for small hardware parts, electronic components and small plastic parts, single cup lifting capacity up to 5kg; VASB 30 (30mm diameter) medium size for medium workpieces and auto parts, single cup lifting capacity up to 18kg, covering most conventional industrial gripping demands.
Proprietary durable blue rubber material: Special oil-resistant wear-resistant blue rubber formula, service temperature range -30℃~+120℃, excellent oil resistance, tear resistance and aging resistance, 2-3 times longer service life than ordinary NBR rubber suction cups in oil mist industrial environments.
Strong stable adsorption performance: Optimized flat sealing lip structure, excellent sealing performance, can generate strong vacuum adsorption force quickly, maintains stable gripping under long-term high-speed reciprocating motion, no workpiece falling off, no offset, ensuring production efficiency.
Standard G1/8 universal interface: Unified standard G1/8 inch threaded connection interface, 100% compatible with mainstream industrial manipulators, vacuum generators and pneumatic pipeline systems, no need for special adapter, convenient for installation, replacement and maintenance.
Non-marking soft contact surface: Precision polished soft rubber lip, will not leave scratches, indentations or rubber marks on workpiece surfaces, suitable for gripping plastic parts, hardware workpieces, painted surfaces and other workpieces with high surface requirements.
High precision molding process: One-piece integrated injection molding process, uniform lip thickness, no burrs, no air leakage points, consistent product size and performance, stable quality, suitable for mass procurement and use.
Product Advantages
First, dual specification one-stop selection advantage. VAS15 small size and VASB 30 medium size cover small and medium workpiece gripping needs, realizing one-stop model selection for automation equipment manufacturers, simplifying procurement and inventory management. Second, blue rubber super durable advantage. Special blue rubber formula has excellent oil resistance, wear resistance and tear resistance, solves the problem of rapid aging and cracking of ordinary black rubber suction cups in oil mist workshops, greatly reduces replacement frequency and maintenance costs. Third, strong adsorption stable performance advantage. Optimized sealing structure generates strong and stable vacuum force, maintains reliable gripping under high-speed operation and complex working conditions, effectively reduces workpiece falling rate and improves production efficiency. Fourth, universal interface convenient advantage. Standard G1/8 interface is fully compatible with existing mainstream pneumatic systems and manipulator equipment, no need to modify fixtures, direct replacement and use, zero transformation cost, convenient for after-sales maintenance. Fifth, high cost performance advantage. High quality domestic manufacturing process, product performance reaches international same-type product level, but the price is only 40%-50% of imported brands, greatly reducing the procurement cost of automation spare parts.
How to Use
First, select the corresponding model according to the workpiece size and weight: use VAS15 for small parts below 5kg; choose VASB 30 for medium workpieces between 5-18kg, and configure multiple cups in parallel for heavier workpieces. Second, inspect the blue rubber sealing lip of the suction cup before installation, confirm no cracks, scratches, hardening, aging and debris adhesion, ensure the rubber surface is flat and elastic to avoid vacuum leakage. Third, align the G1/8 standard threaded interface of the suction cup with the manipulator bracket or vacuum connector, screw and lock firmly, apply appropriate thread sealant if necessary to prevent air leakage caused by high-frequency vibration. Fourth, connect the vacuum pipeline and conduct air tightness test, adjust the vacuum negative pressure to the recommended range: -50kPa\-70kPa for VAS15, -60kPa\-80kPa for VASB 30, check that there is no air leakage at the interface and the sealing lip is evenly fitted. Fifth, carry out trial adsorption operation on the target workpiece, verify that the workpiece is firmly adsorbed without offset, shaking or surface marks, confirm that it can be lifted stably at the set moving speed without falling off. Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly wipe the rubber sealing surface with clean soft cloth to remove oil stains, dust and debris, check the rubber hardness and wear degree every month, and replace the suction cup in time if obvious hardening, cracking or suction weakening occurs.
About Product
Highlight
Strong Suction Force: Provides powerful holding for secure industrial use.
Industrial Manipulator: Designed for heavy-duty tasks in manufacturing and logistics.
Durable Rubber: Ensures longevity and consistent performance over time.
Blue Color: Enhances visibility and aesthetic appeal.
Pneumatic Accessories: Includes essential components for pneumatic systems.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
