High-strength standard cylinder durable suitable for various equipment direct sales from the manufacturer SC32X25X50X75X100

Place of Origin:	CHINA
Brand Name:	Edith
Model Number:	SC32X25X50X75X100
Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton package/Wooden cases
Delivery Time:	Depending on the order quantity
Payment Terms:	L/C, T/T
Supply Ability:	Negotiable

Inquiry Contact Us

Description

Is there a problem? Please contact us to serve you!

+86-18015634179

[email protected]

Inquiry

Detail Information

Disc diameter	Customized Accepted	Material:	Aluminum
Highlight 1:	Not easily deformed	Highlight 2:	Anti-Aging Insulated
Application:	Industry	Name:	SC Standard Cylinder
High Light:	High-Temperature Resistant

Description

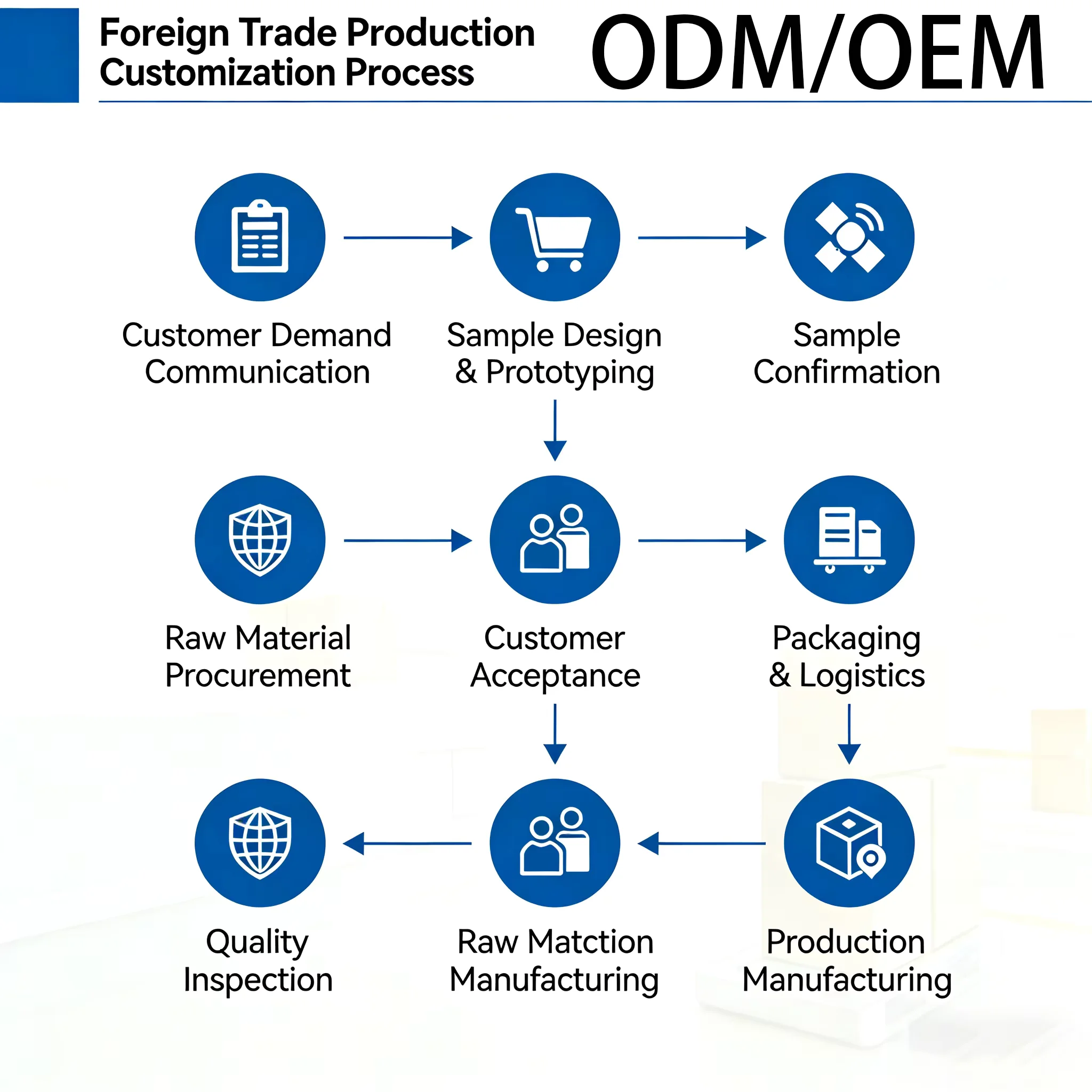

Process Steps	ODM	ODM
Step 1	CustomerRequirement	CustomerRequirement
Step 2	SchemeAppraisal	SchemeAppraisal
Step 3	ProfileConfirmation（Packing Dimension Functional）	Negotiation Cooperation
Step 4	Sample Design	Quote
Step5	Small BatchProduction	Sample Confirmation
Step 6	Product Confirmation	Small Batch Production
Step7	-	Product Confirmation

SC Series Standard Cylinder

I. Basic Positioning & Definition

The SC Series Standard Cylinder is a tie-rod type double-acting cylinder compliant with the ISO6430 international standard. As one of the most widely used pneumatic actuators in industrial automation, it is manufactured by renowned brands such as AIRTAC. Driven by compressed air, it enables the piston to perform linear reciprocating motion, realizing functions like pushing, pulling, and clamping in mechanical automation systems.

II. Core Structural Features

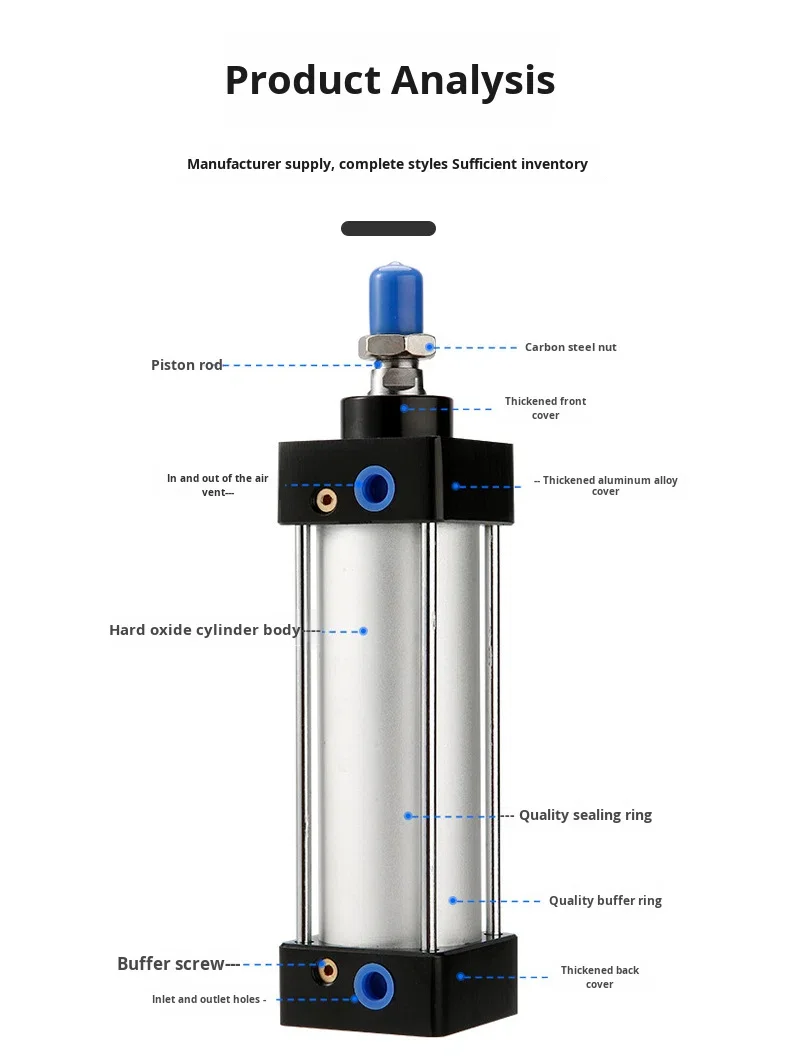

1. Tie-Rod Type Main Structure

The front and rear end caps are connected to the aluminum alloy cylinder tube via four external tie rods, featuring a stable structure and strong lateral load resistance.
Compared with ISO15552 standard cylinders, it has a shorter length under the same bore diameter, saving installation space.
The cylinder tube undergoes hard anodization treatment, with three-pass honing on the inner wall, ensuring smoothness, wear resistance, and a long service life.

2. Advanced Sealing System

The piston adopts a special-shaped bidirectional sealing structure, which is compact in size, has excellent oil storage performance, and requires no additional lubrication.
The piston rod seal uses a multi-seal ring design, effectively preventing leakage and ensuring a long service life.
High-temperature resistant models can be equipped with special sealing materials (customized), operating reliably in environments ranging from -20℃ to 150℃.

III. Detailed Technical Parameters

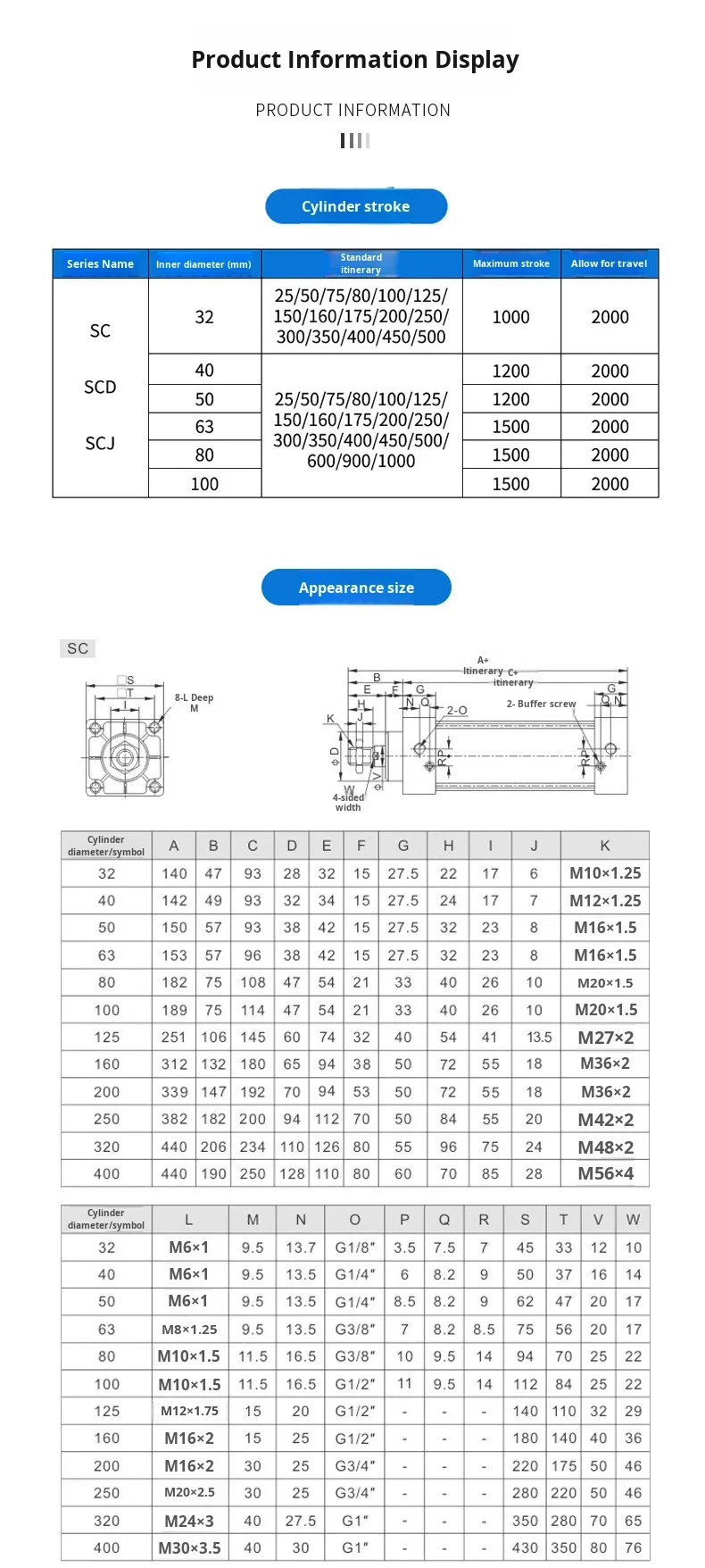

Parameters	Value Range	Description
Bore Diameter Range	32/40/50/63/80/100/125/160/200/250mm	Standard series to meet different thrust requirements
Standard Stroke	25~1000mm	Custom longer strokes available
Working Pressure	0.1~1.0MPa (standard), max. 1.5MPa	Recommended working pressure: 0.4~0.6MPa for optimal efficiency
Operating Temperature	-5~60℃ (standard), special range: -20~150℃	Temperature affects sealing performance and motion accuracy
Speed Range	50~500mm/s (recommended), max. 800mm/s	Excessively high speed may reduce stability and service life
Connection Port Size	PT1/8, PT1/4, PT3/8, PT1/2	Matched with different specifications according to bore diameter
Theoretical Thrust	Bore 32mm: approx. 250N (at 0.6MPa) Bore 100mm: approx. 4700N (at 0.6MPa)	Thrust = Piston Area × Working Pressure
Cushion Type	Combined fixed cushion + adjustable cushion	Adjustable end cushion reduces impact and ensures smooth operation
Service Life	>300km (total reciprocating stroke)	High-quality sealing system g

item	value
Action Method	Double Action
Place of Origin	China
	Jiangsu
Connection Type	Consult customer service
Type	SC32X25X50X75X100X125X150X175X200X250X300X350X400X450X500
Specification	Standard
Application	Hardware machinery
Material	Aluminum
Feature	Strong adsorption
Service	Customized Services
