Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation
Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation

Heavy-duty hand-crank slider module with dual linear rail workbench ball screw high-load linear guide stepper motor automation

Place of Origin:

CHINA

Brand Name:

Edith

Model Number:

 120 150

Minimum Order Quantity:

Negotiable

Price:

Negotiable

Packaging Details:

Carton package/Wooden cases

Delivery Time:

Depending on the order quantity

Payment Terms:

L/C, T/T

Supply Ability:

Negotiable
Inquiry Contact Us
  • Description
Inquiry

Is there a problem? Please contact us to serve you!

+86-18015634179
[email protected]
Inquiry

Disc diameter

Customized Accepted

Material:

Aluminum alloy

Highlight 1:

Not easily deformed

Highlight 2:

Easy to install

Application:

 Industry

Name:

120/150 Dual-Track Hand-Wheel Model

High Light:

Stable performance

Process Steps

ODM

ODM

Step 1

CustomerRequirement

CustomerRequirement



Step 2

SchemeAppraisal

SchemeAppraisal



Step 3

ProfileConfirmation（Packing Dimension Functional）



Negotiation Cooperation



Step 4

Sample Design

Quote



Step5

Small BatchProduction



Sample Confirmation



Step 6

Product Confirmation



Small Batch Production



Step7

-

Product Confirmation

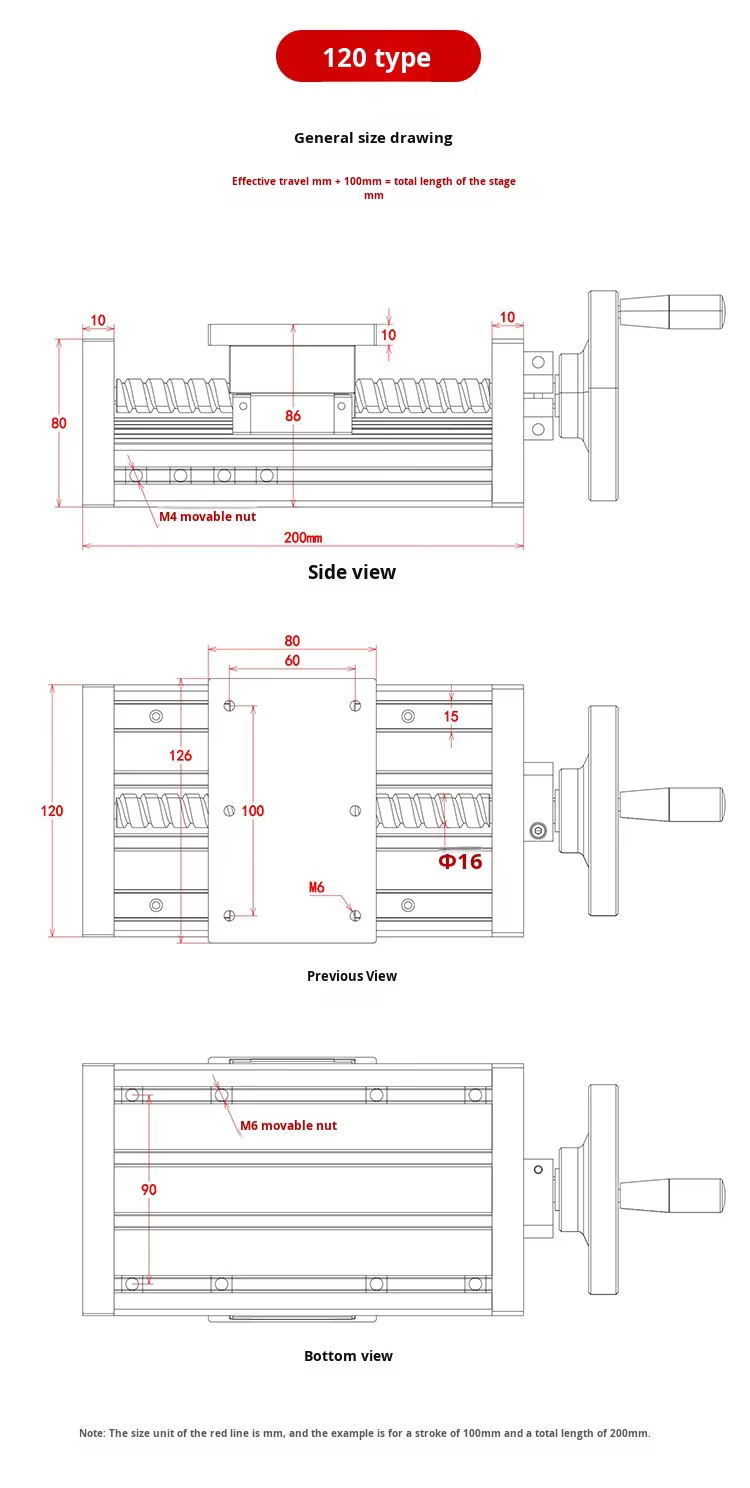

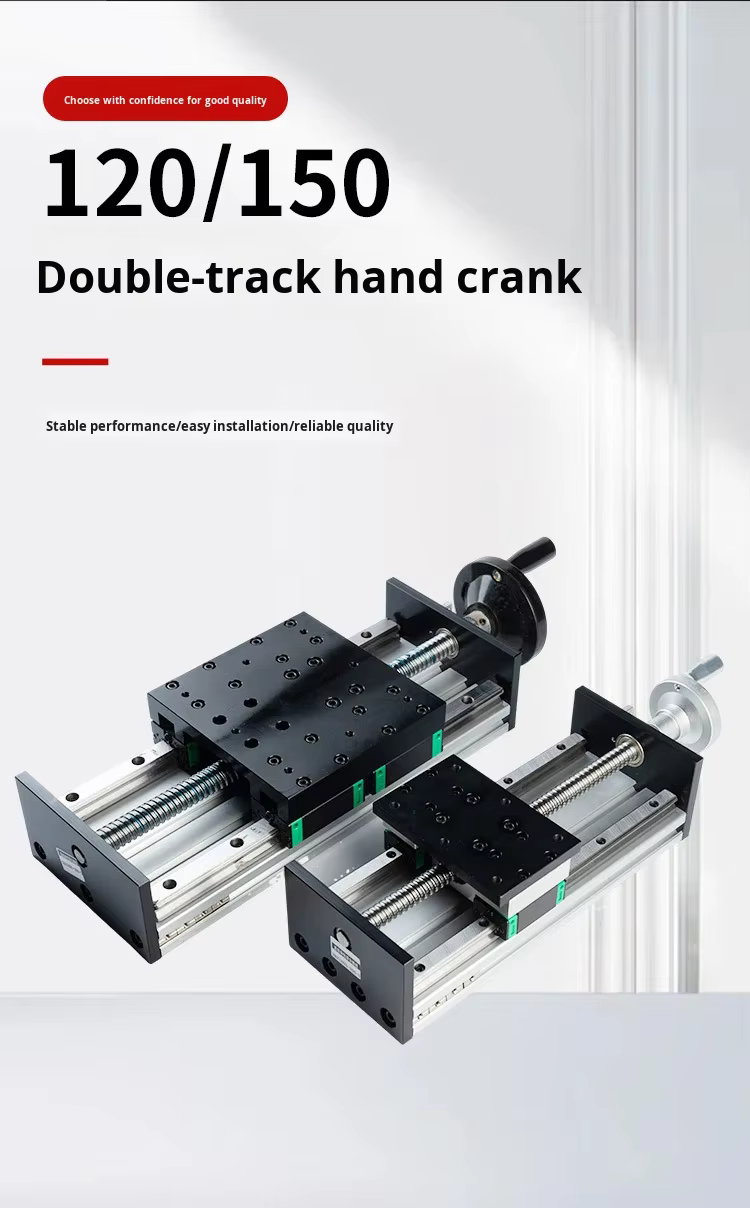

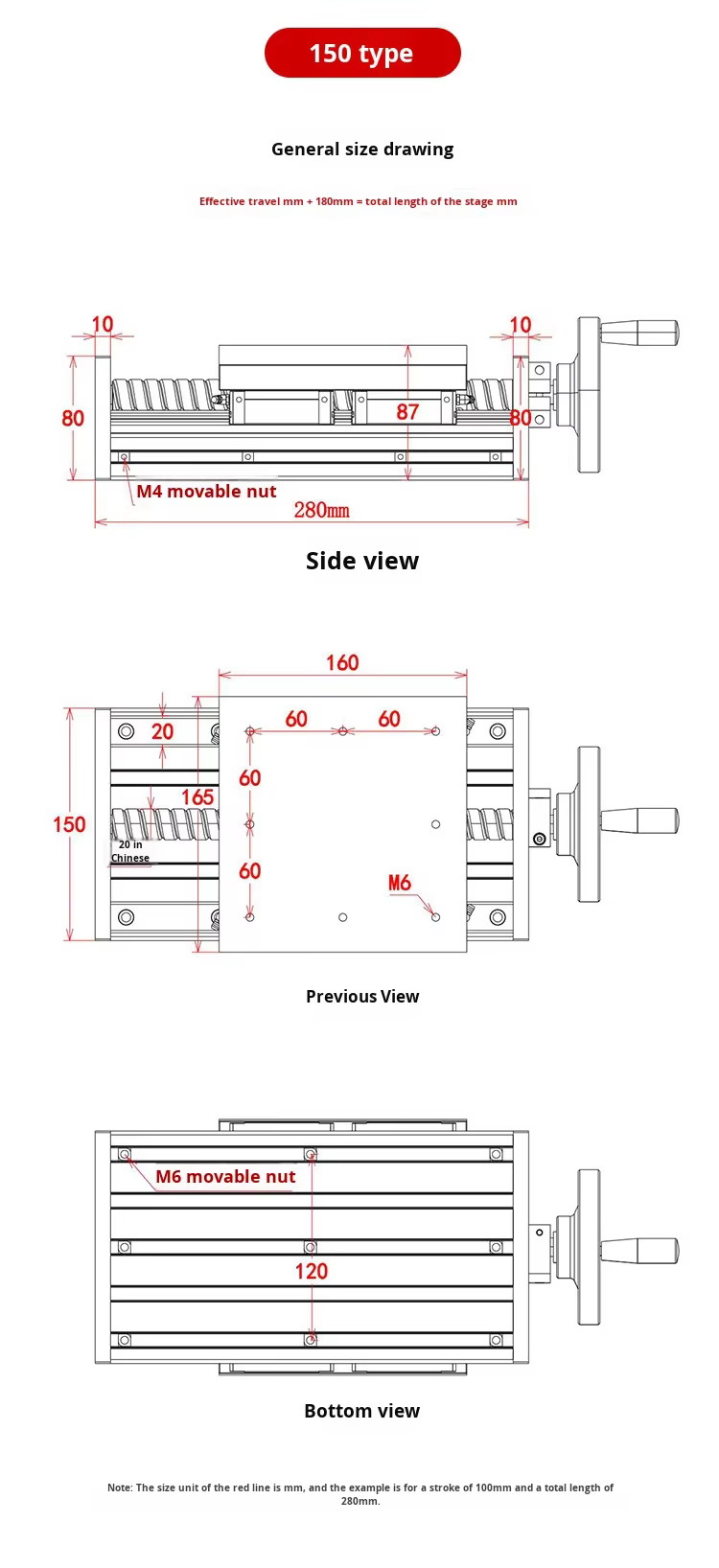

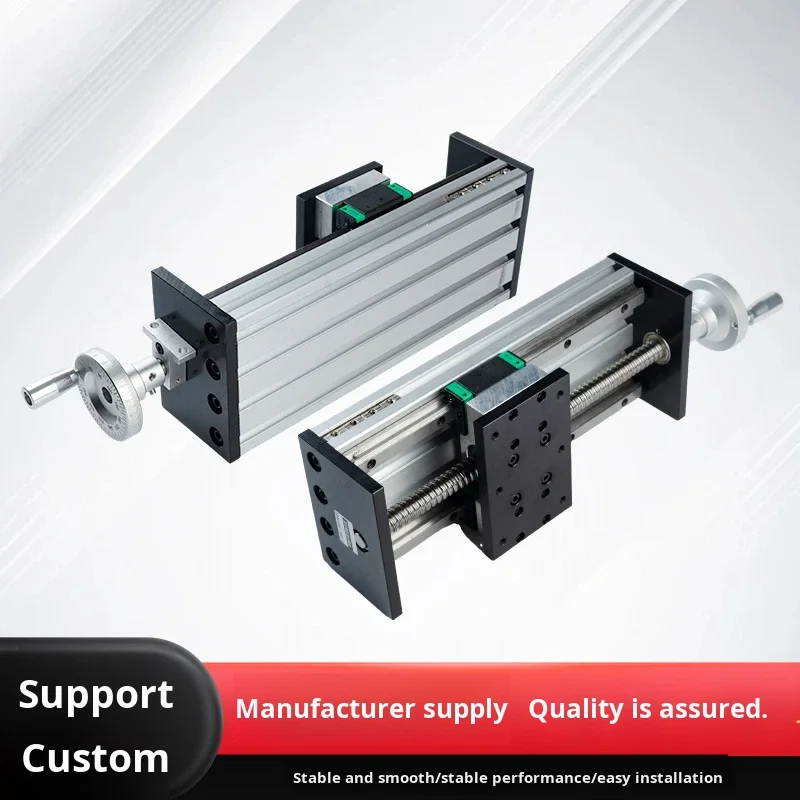

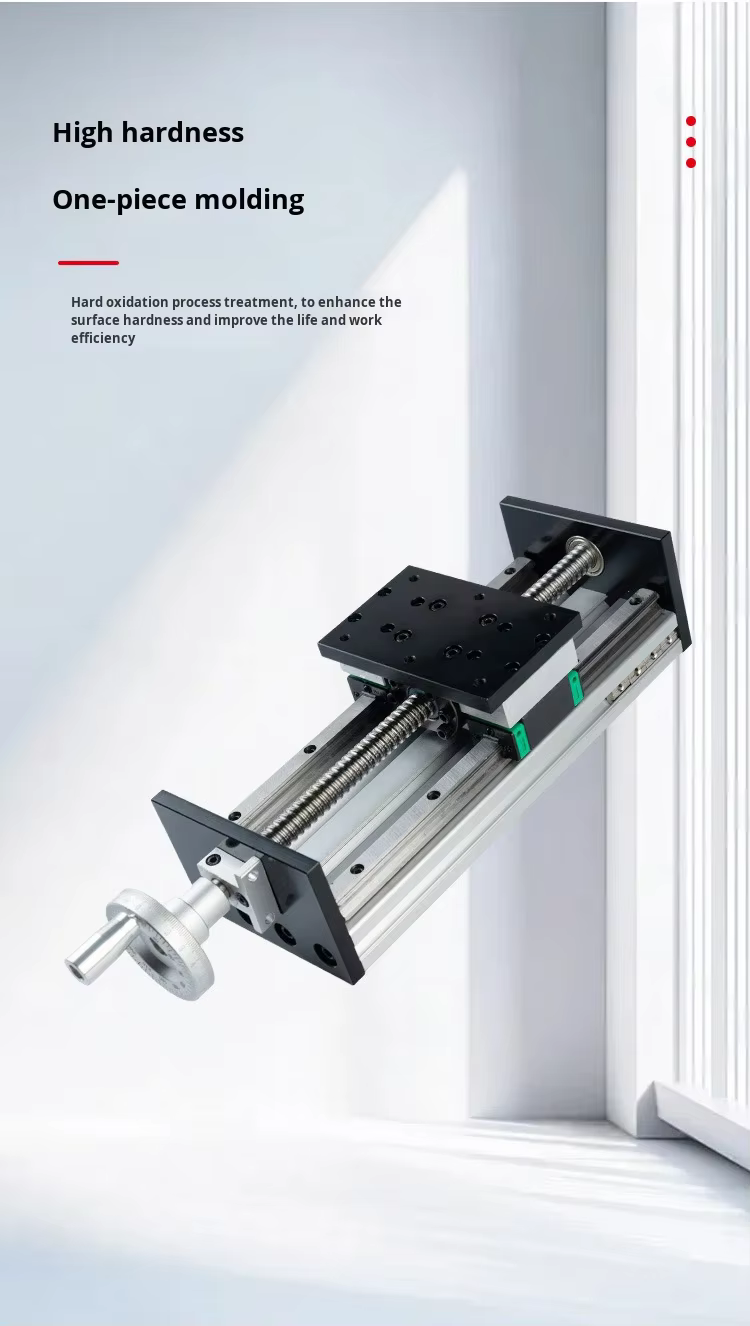

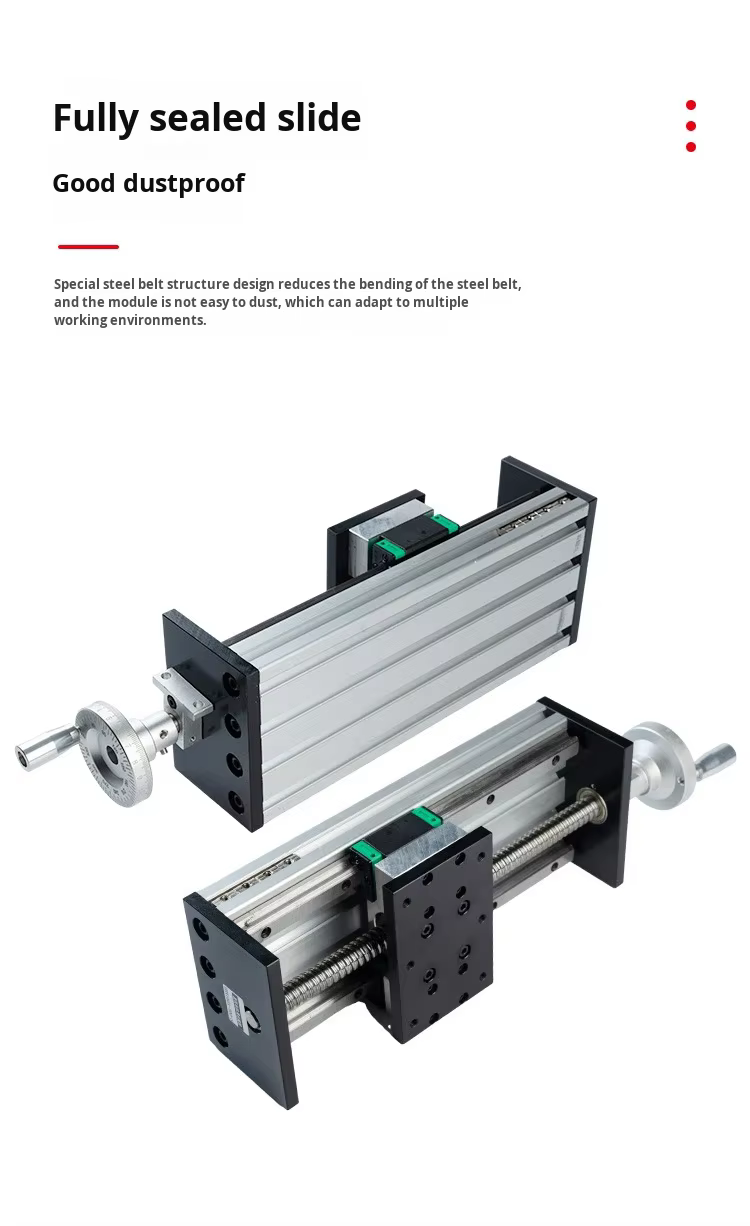

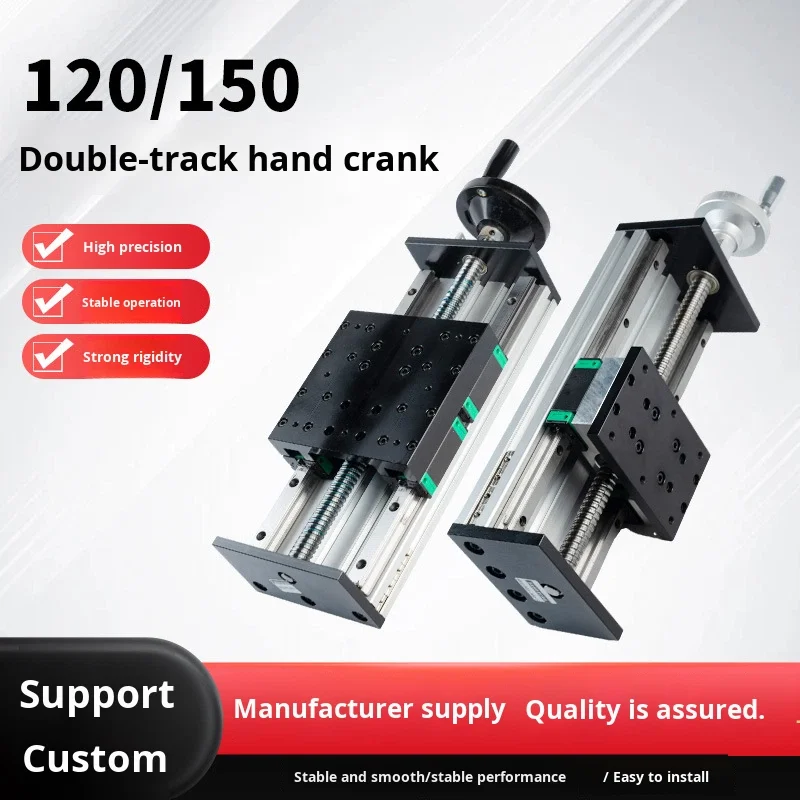

The 120/150 dual-linear-rail manual-operated model generally refers to a hand-cranked linear stage/module with a stroke of 120mm/150mm. It is a mechanical component designed for precision displacement adjustment, whose core function is to drive loads to achieve high-precision, smooth linear reciprocating motion via manual cranking. It is widely used in scenarios such as manual fine-tuning, small equipment positioning, and experimental setup construction.
Its specific functions are divided into the following aspects:
  1. High-precision Manual Displacement AdjustmentThe dual-linear-rail structure (two parallel linear guide rails) can significantly reduce wobble and deviation during motion. Combined with a hand-cranked lead screw drive, it enables precise displacement control at the micron or millimeter level. For example, in laboratory optical benches and small testing equipment, it is used to fine-tune the positions of lenses, probes or workpieces to ensure alignment accuracy.
  2. Stable Load Bearing and GuidanceCompared with the single-linear-rail structure, the dual-linear-rail design offers stronger load-bearing capacity and more uniform force distribution. It can effectively prevent loads from tilting or jamming due to center-of-gravity offset. It is capable of carrying small fixtures, sensors, cutting tools and other components, making it suitable for positioning operations under light-load conditions.
  3. Adaptability to Manual Operation ScenariosThe hand-cranked drive method requires no electric power and features simple, intuitive operation. Operators can directly control the displacement distance by counting the rotation turns and reading the scales of the handwheel (some models are equipped with a graduated dial). It is particularly suitable for power-off environments, small-batch debugging, or occasions with high requirements for operational controllability (e.g., teaching experimental devices, small manual processing benches).
  4. Flexible Combination and ExpansionThis type of module can be spliced and stacked to form 2D or 3D manual adjustment platforms (such as XY-axis stages and XYZ three-axis worktables), meeting the needs of displacement adjustment in multiple directions. It is often used in scenarios like fine-tuning of laser marking machines, positioning of small engraving machines, and alignment for electronic component welding.
  5. Compact Structure and Easy MaintenanceWith a small overall footprint, it supports flexible installation methods (horizontal, vertical or inclined mounting). Its mechanical structure is simple, and routine maintenance only requires regular lubrication of the guide rails and lead screw, resulting in a low failure rate. It is ideal for integration into small equipment with limited space.
Specification
item
value
weight (kg)
None
core components
None
place of origin
Taizhou
model number
120,150
material
Aluminum
Name
120/150 Dual-Track Hand-Wheel Model
Features
Smooth operation, stable performance
Advantages
high load, quiet, non-standard customization
Number of T-slots
4
Product accuracy
±0.05mm
Product material
Aluminum alloy
Keyword
Dual-track rail
