Product Features

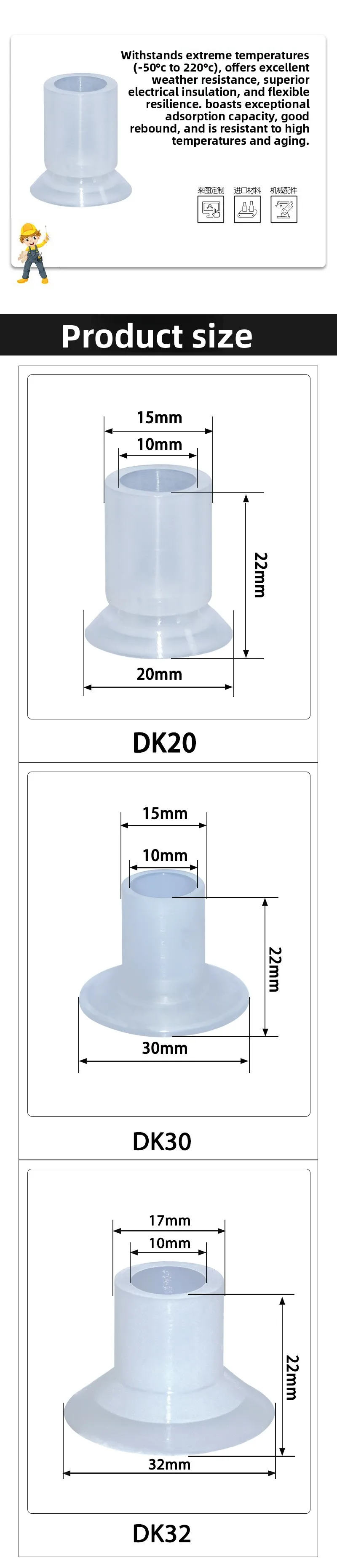

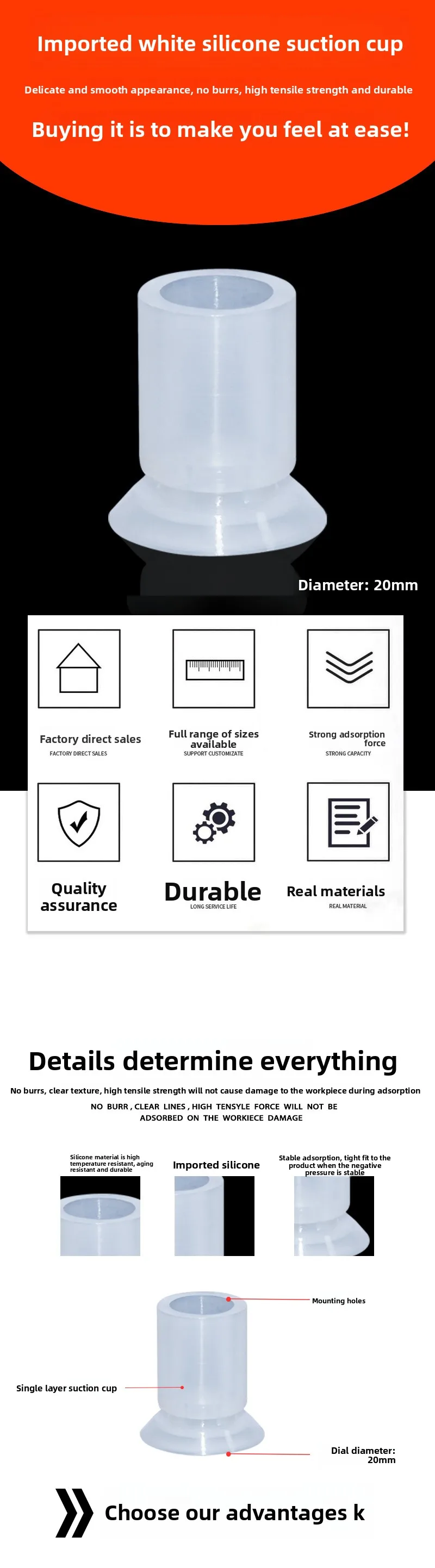

This DK series white single-layer vacuum chuck adopts upgraded high-purity white silicone raw material, supporting extreme temperature resistance ranging from low temperature to high temperature, maintaining stable elasticity, hardness and vacuum tightness in long-term high-temperature working conditions without softening, deformation or cracking. The optimized integrated single-layer flat structure eliminates redundant gaps, realizing rapid vacuum forming, fast response and ultra-strong concentrated suction force, effectively improving the gripping success rate of flat workpieces. The smooth matte white surface achieves zero-mark adsorption on precision and coated workpieces, avoiding surface scratching, indentation and pollution, fully meeting clean production and high-precision processing standards. Complete DK-20, DK-30 and DK-32 size specifications form a precise matching system, flexibly adapting to different workpiece areas and weight requirements for targeted gripping. The industrial one-piece vulcanization molding process enhances overall structural toughness and compression resistance, resisting long-term high-frequency cyclic extrusion and vibration fatigue. Equipped with standard universal pneumatic interface, it is highly compatible with mainstream robotic arms, vacuum generators and automated pick-and-place equipment, supporting quick disassembly and on-site replacement to improve production efficiency.
Product Advantages
First, superior high-temperature resistance. Professional high-grade silicone formula withstands continuous high-temperature operation, far exceeding ordinary rubber suction cups in thermal stability, suitable for hot stamping, thermal forming and high-temperature post-processing scenarios. Second, powerful stable single-point suction. Single-layer flat structure concentrates negative pressure evenly, providing stronger and more stable suction than ordinary bellows cups, effectively preventing workpiece slipping during high-speed dynamic movement. Third, clean white non-pollution design. Pure white material does not fade or precipitate impurities, ensuring no contamination to clean workpieces, ideal for food, medical, electronic and precision industrial clean workshops. Fourth, full-size precise matching. Three core industrial sizes cover small and medium flat workpiece handling needs, realizing accurate model selection and avoiding suction waste or insufficient gripping force. Fifth, cost-effective domestic industrial quality. China independent manufacturing ensures stable quality, short delivery cycle and competitive wholesale price, reducing long-term spare parts procurement and equipment maintenance costs for automation enterprises.
How to Use
First, select the appropriate model according to workpiece size and working temperature: DK-20 for tiny precision flat parts, DK-30/DK-32 for medium-sized flat plates; confirm the working temperature is within the product resistant range. Inspect the white single-layer disk surface for cracks, aging, stains and elasticity attenuation before installation. Second, thoroughly clean the suction disk and workpiece contact surface to remove dust, high-temperature residues, oil stains and fine debris, ensuring complete seamless fitting to avoid vacuum air leakage. Third, align the standard interface of the DK vacuum chuck with the pneumatic connector of the manipulator or automation equipment, install and lock firmly to prevent loosening and air leakage caused by high-frequency vibration and thermal expansion. Fourth, connect the vacuum pipeline for idle air tightness test, adjust vacuum pressure to the optimal stable range, check suction response speed and sealing performance. Fifth, conduct trial gripping operation, verify stable adsorption without slipping, shaking or workpiece surface damage, confirm normal operation in high-temperature environment. Sixth, start formal automated production after passing the trial run. For daily maintenance, regularly clean the white disk surface to keep it clean, check material elasticity and high-temperature resistance, and replace the vacuum chuck timely if suction weakens or aging failure occurs after long-term operation.
About Product
Highlight
High Temperature Resistance: Suitable for use in extreme heat environments.
Strong Suction Disk: Ensures secure hold during operations.
Soft Surface: Gentle on workpieces, reducing damage.
Customizable Solutions: Tailored for unique applications.
Durable Service Life: Over 200,000 cycles.
About Us
Suzhou Edith Electronics Co., Ltd. is a comprehensive manufacturer specializing in design, development, and production of electronic components. Established in 2007, the company employs 5-10 professionals, focusing on reliable and cost-effective solutions for the manufacturing industry.
FAQs
who are we?
We are based in Jiangsu, China, start from 2007,sell to North America(50.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
why should you buy from us not from other suppliers?
We have 20 years of design and research experience, focusing on various automatic mechanical equipment accessories, electromechanical equipment accessories, such as vacuum suction cups, hardware brackets, pneumatic components, silicone products, rubber pro
